Fuel Tank ASSY
>>
Components
>>
Notes
Fuel Tank ASSY: Components: Notes
Download the full database via torrent (~1.1 TB)

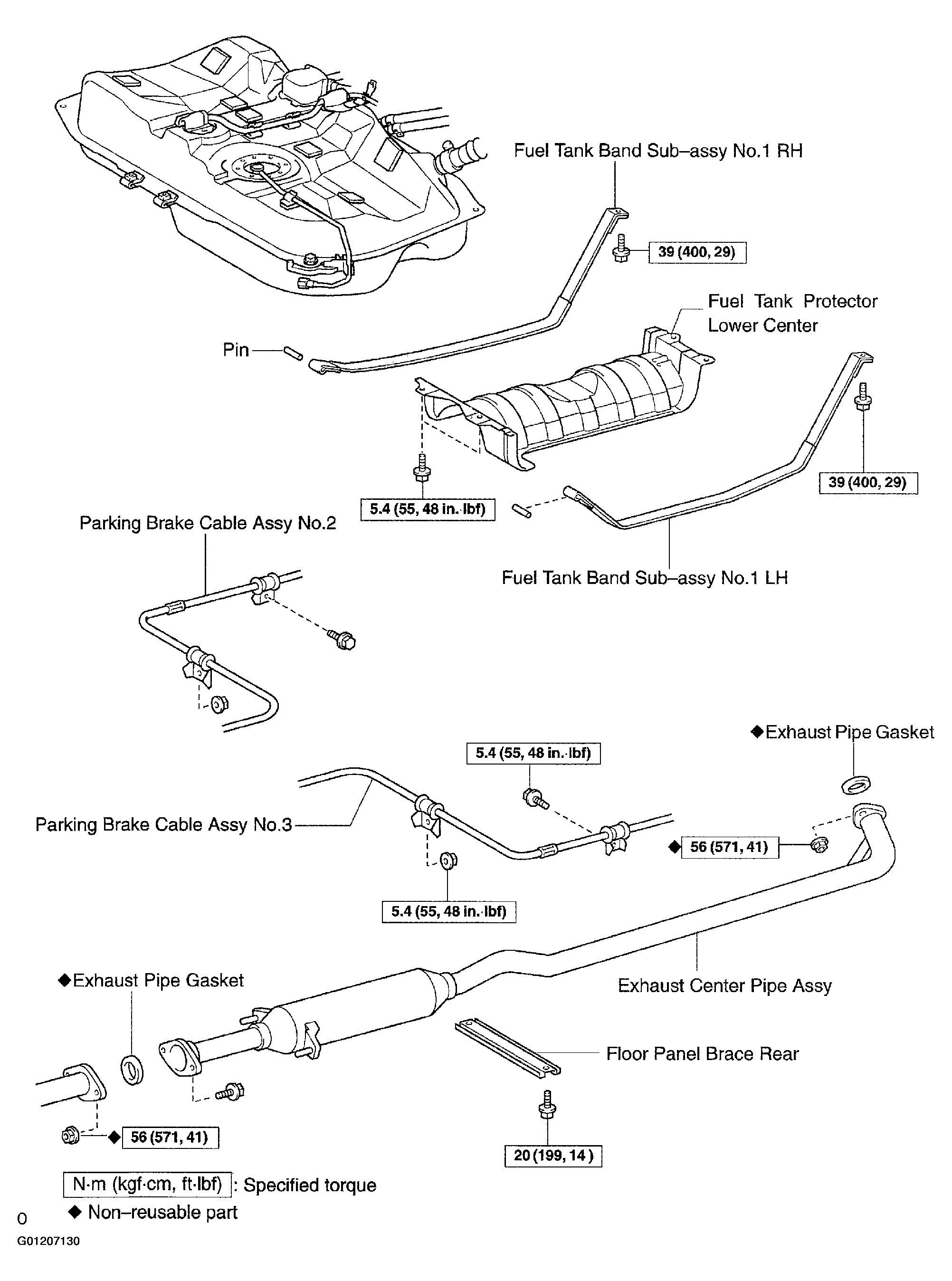

Fig 1: Displaying Fuel Tank Assy (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

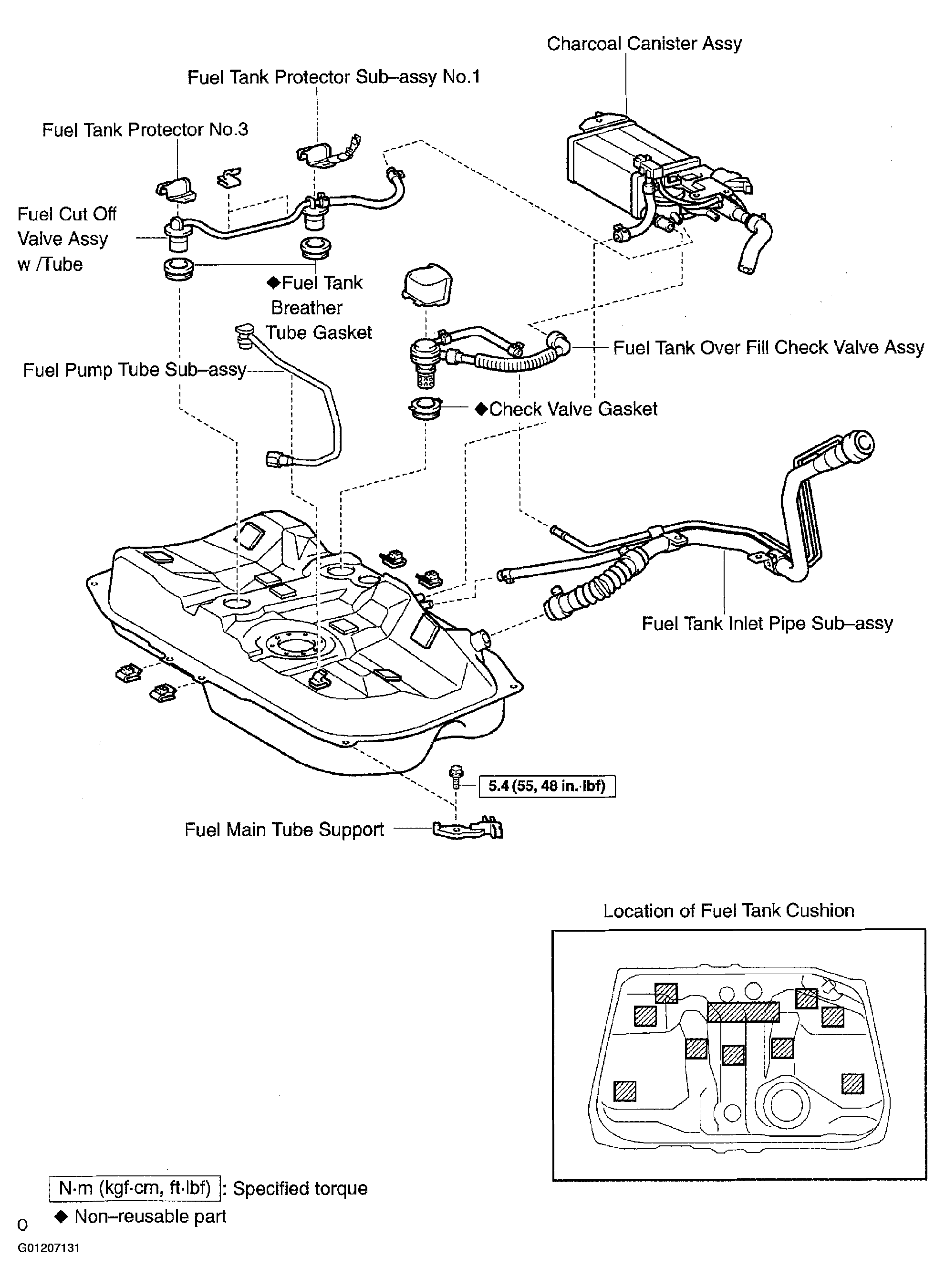

Fig 2: Displaying Fuel Tank Assy (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Displaying Fuel Tank Assy (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
