Home >> Lexus >> 2002 >> ES 300 >> Repair and Diagnosis >> Steering >> Steering Column >> Steering Column Assembly >> Components

Steering Column Assembly: Components

Download the full database via torrent (~1.1 TB)

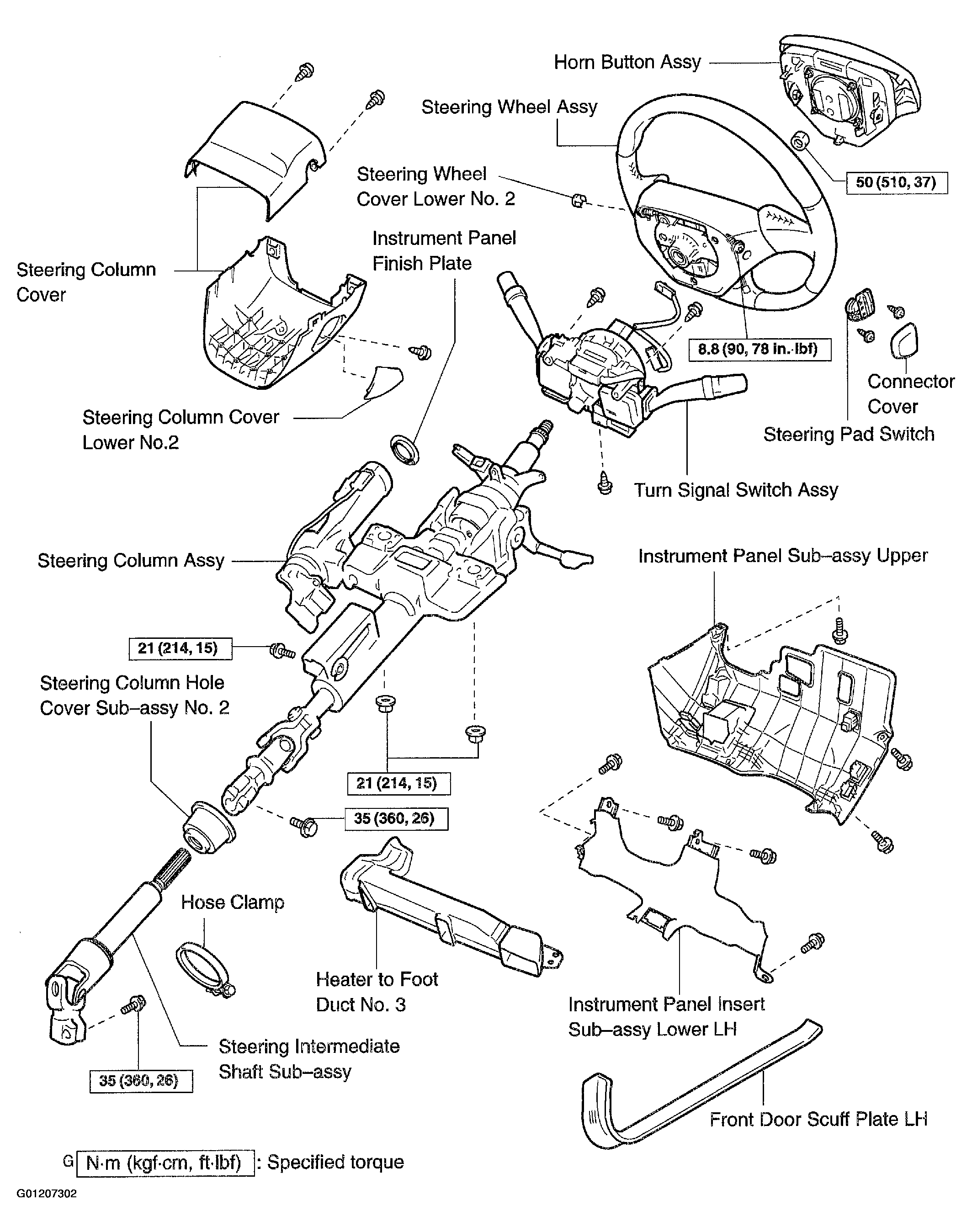

Fig 1: Displaying Steering Column Assembly Components (1 Of 2)
G01207302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

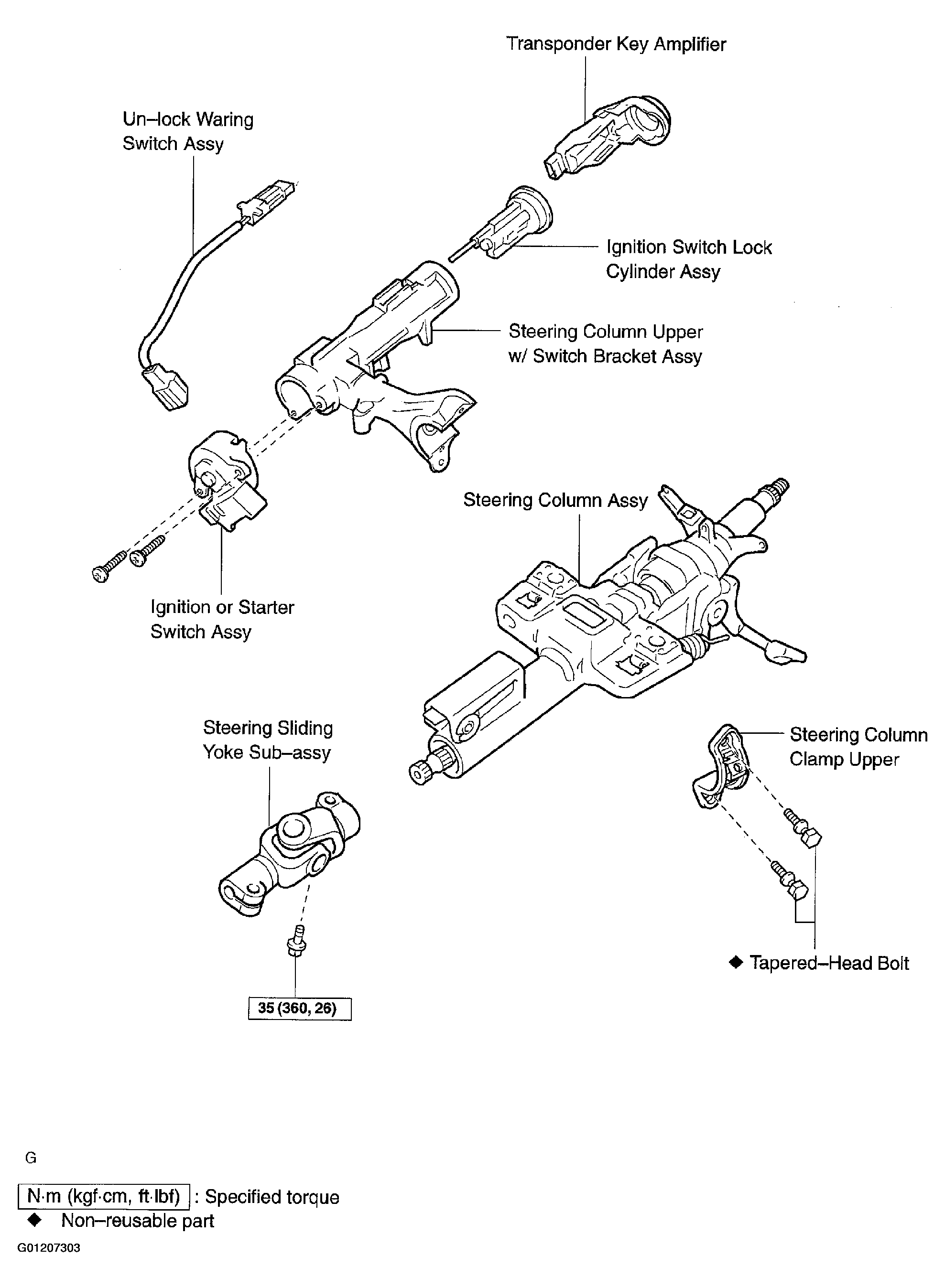

Fig 2: Displaying Steering Column Assembly Components (2 Of 2)
G01207303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
