Charging Systems: Generator: Components

Download the full database via torrent (~1.1 TB)

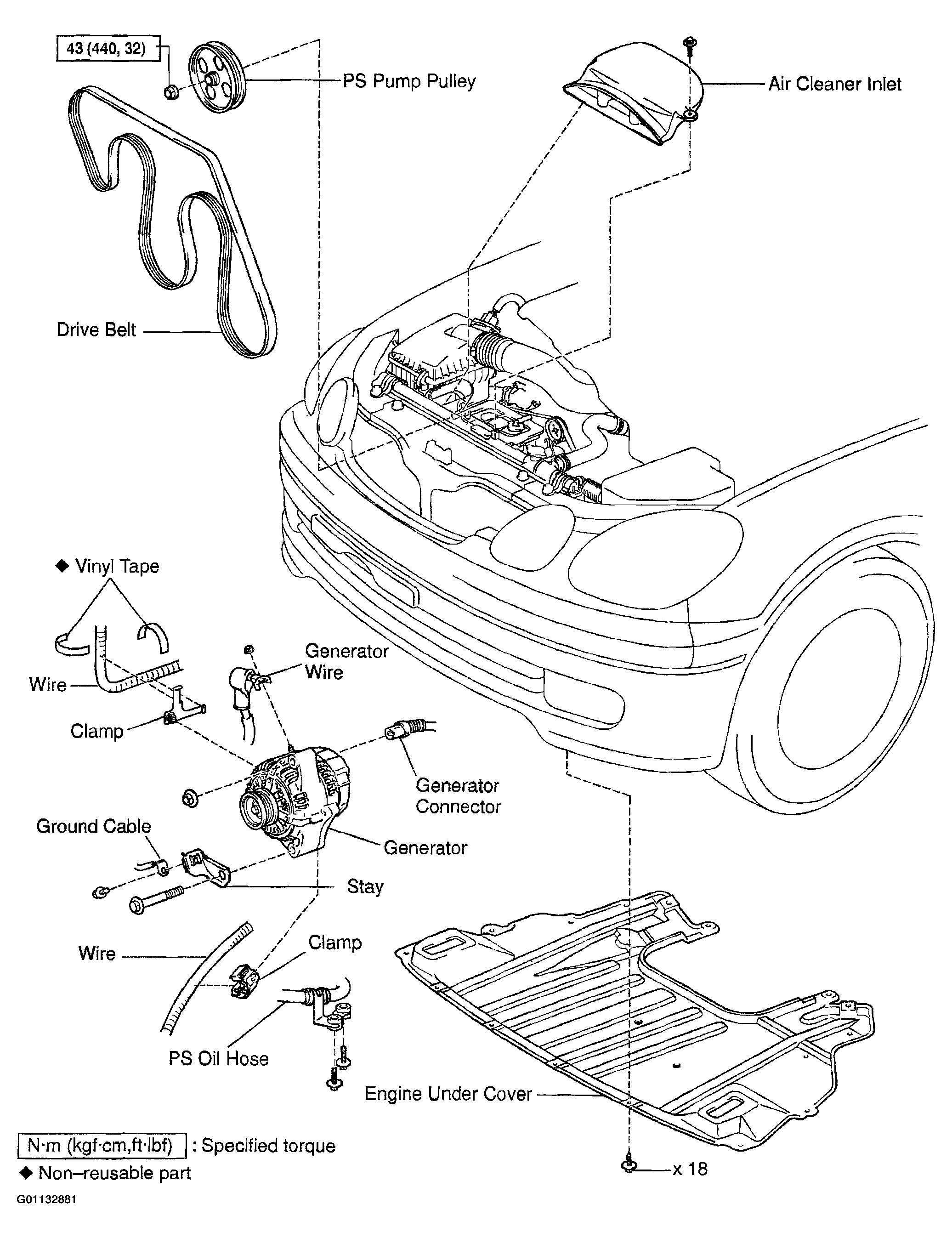

Fig 1: Displaying Generator Components (1 Of 2)
G01132881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

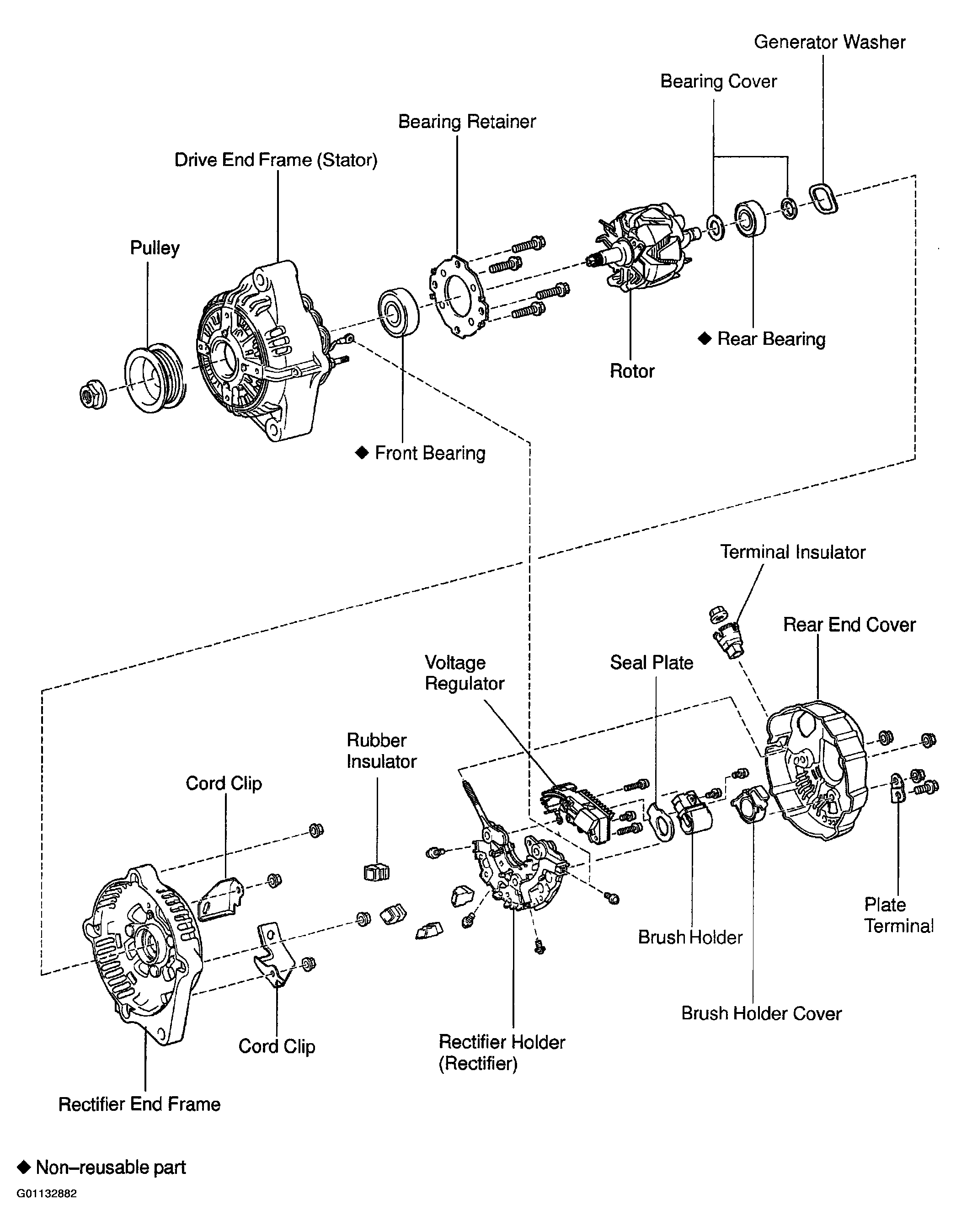

Fig 2: Displaying Generator Components (2 Of 2)
G01132882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
