Alignment Specifications & Procedures: Specifications
Download the full database via torrent (~1.1 TB)

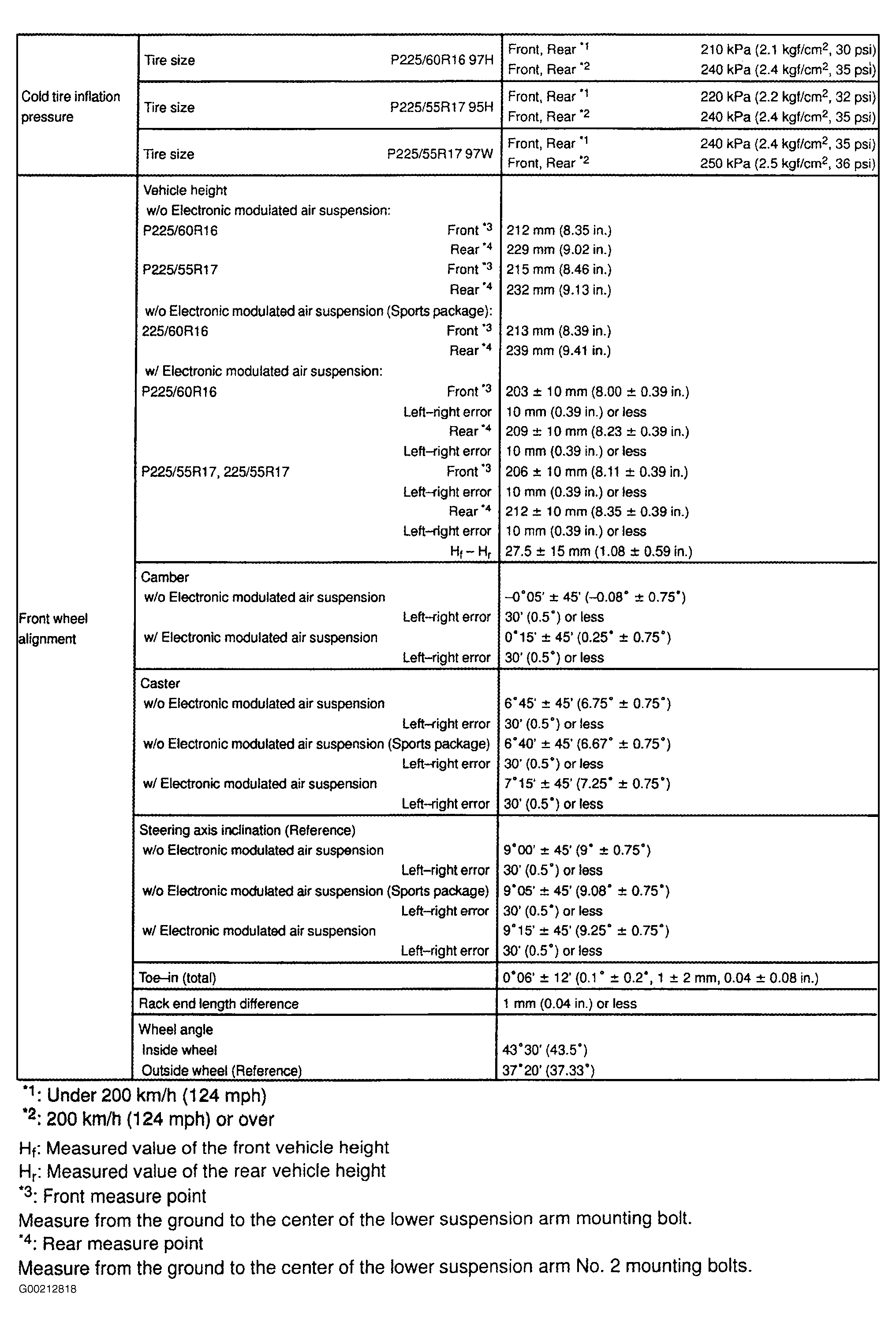

Fig 1: Wheel Alignment Specifications (LS 430 1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Wheel Alignment Specifications (LS 430 2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
