Charging Systems: Generator: Components

Download the full database via torrent (~1.1 TB)

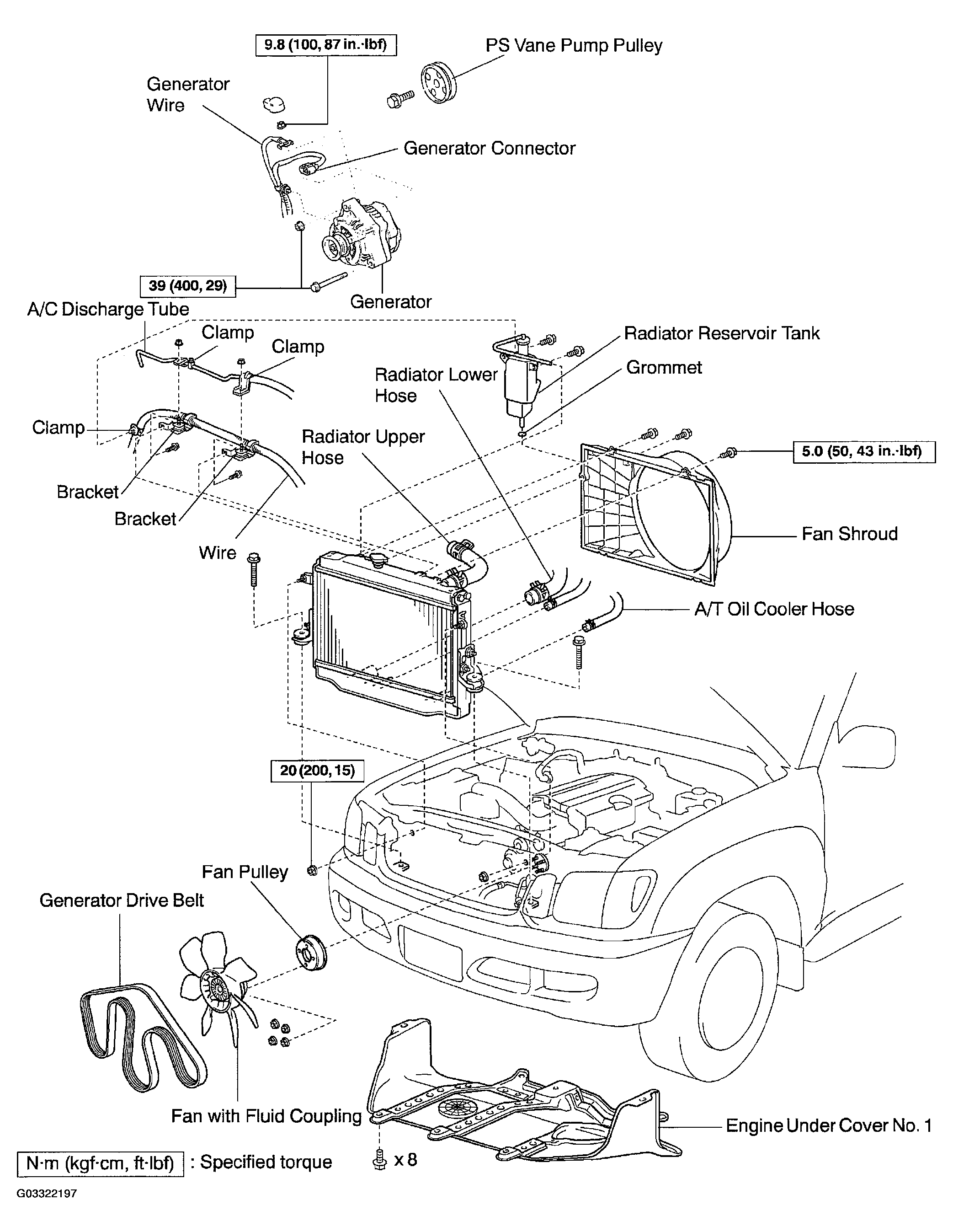

Fig 1: Exploded View Of Generator Components (1 Of 2)
G03322197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

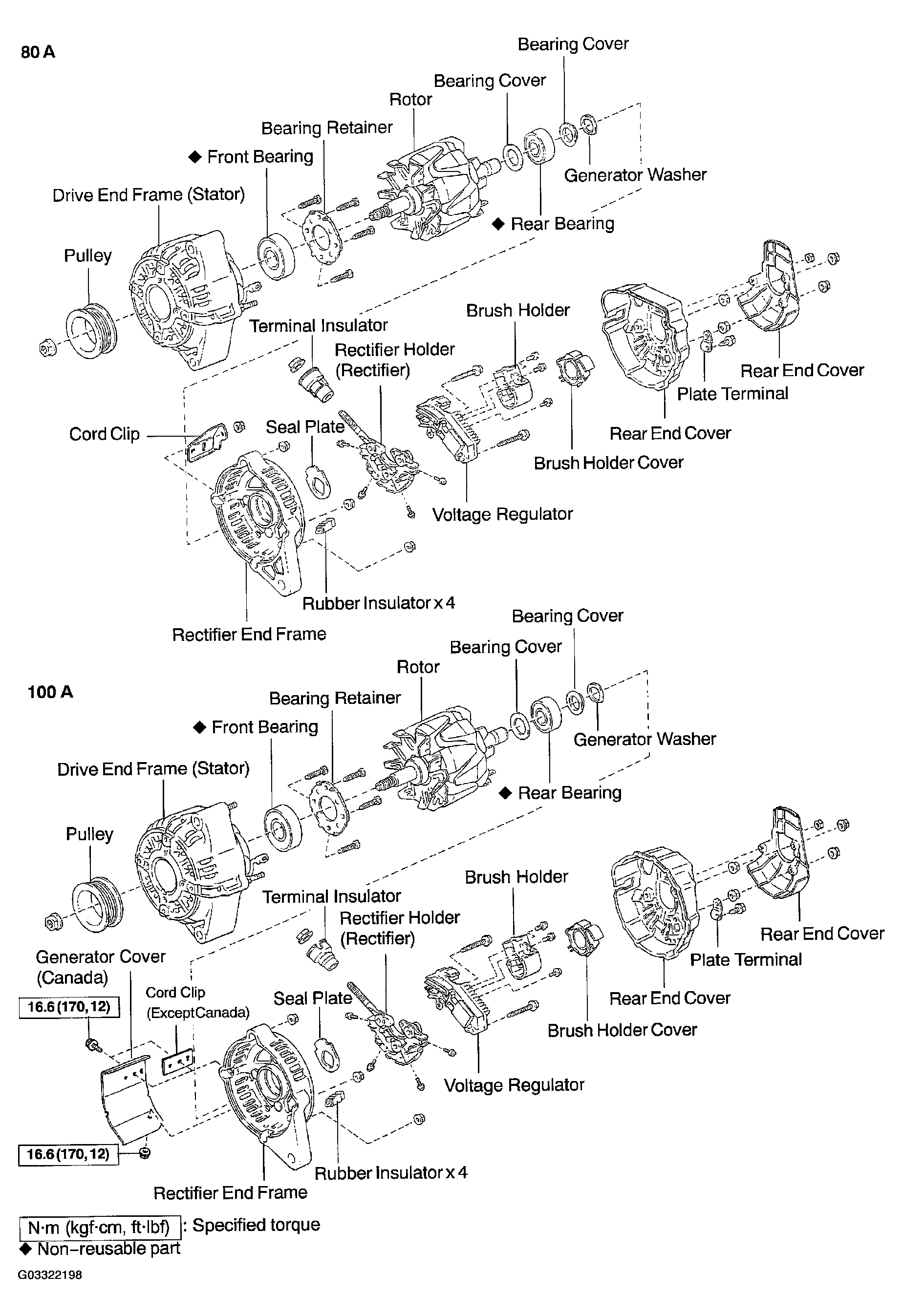

Fig 2: Exploded View Of Generator Components (2 Of 2)
G03322198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
