Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel Tank ASSY
>>
Components
Fuel Tank ASSY: Components
Download the full database via torrent (~1.1 TB)

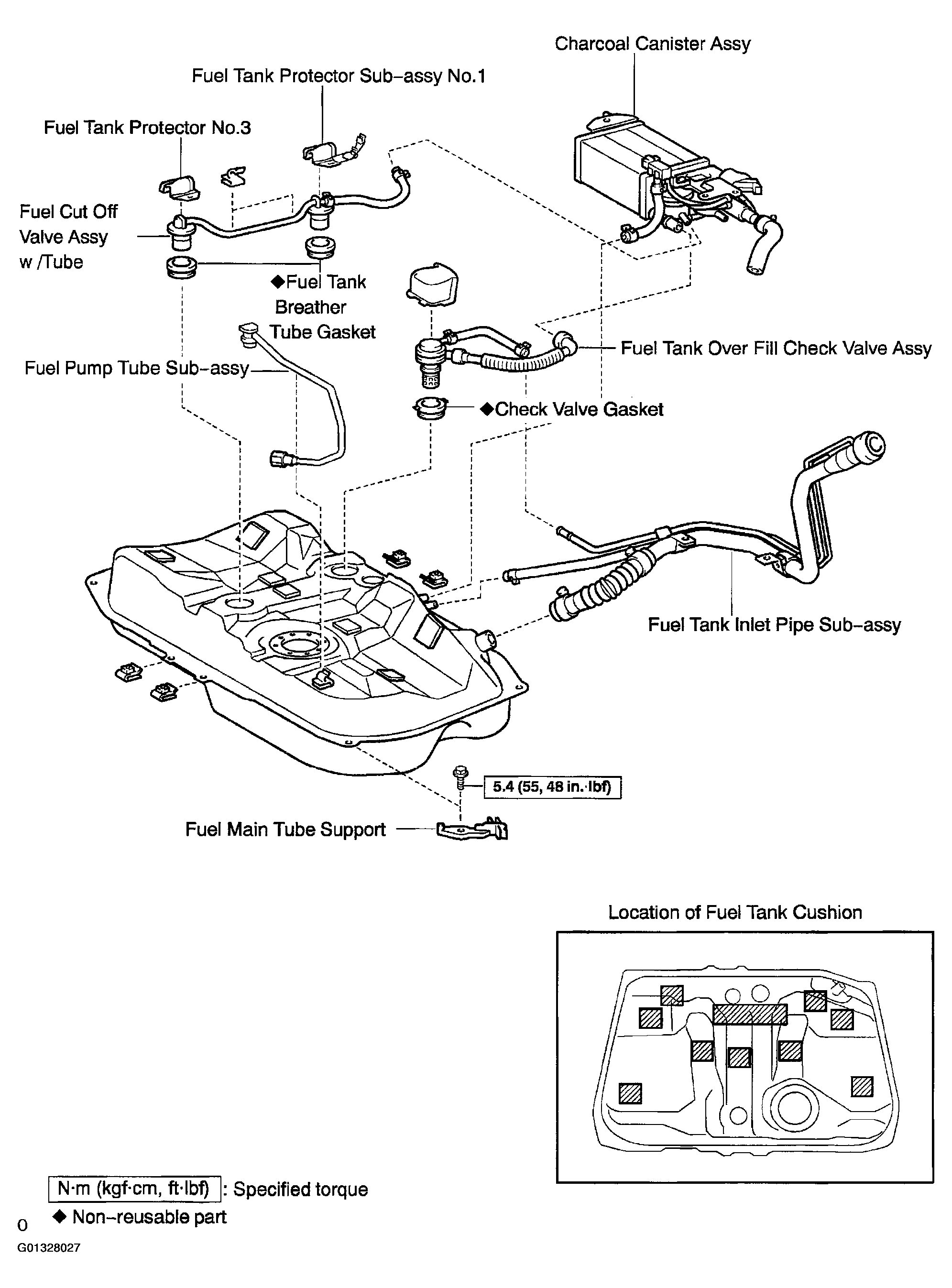

Fig 1: Identifying Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

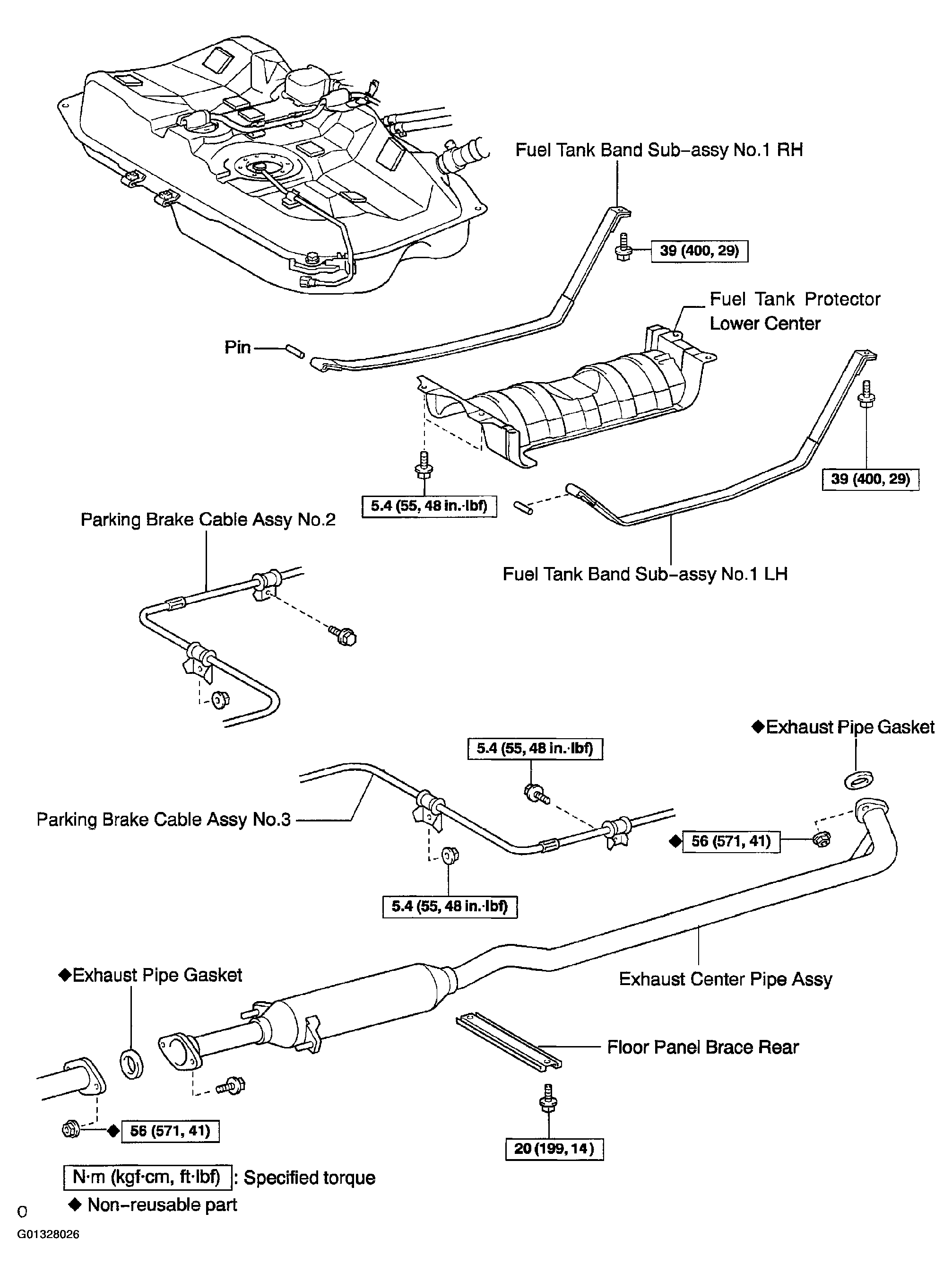

Fig 2: Identifying Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

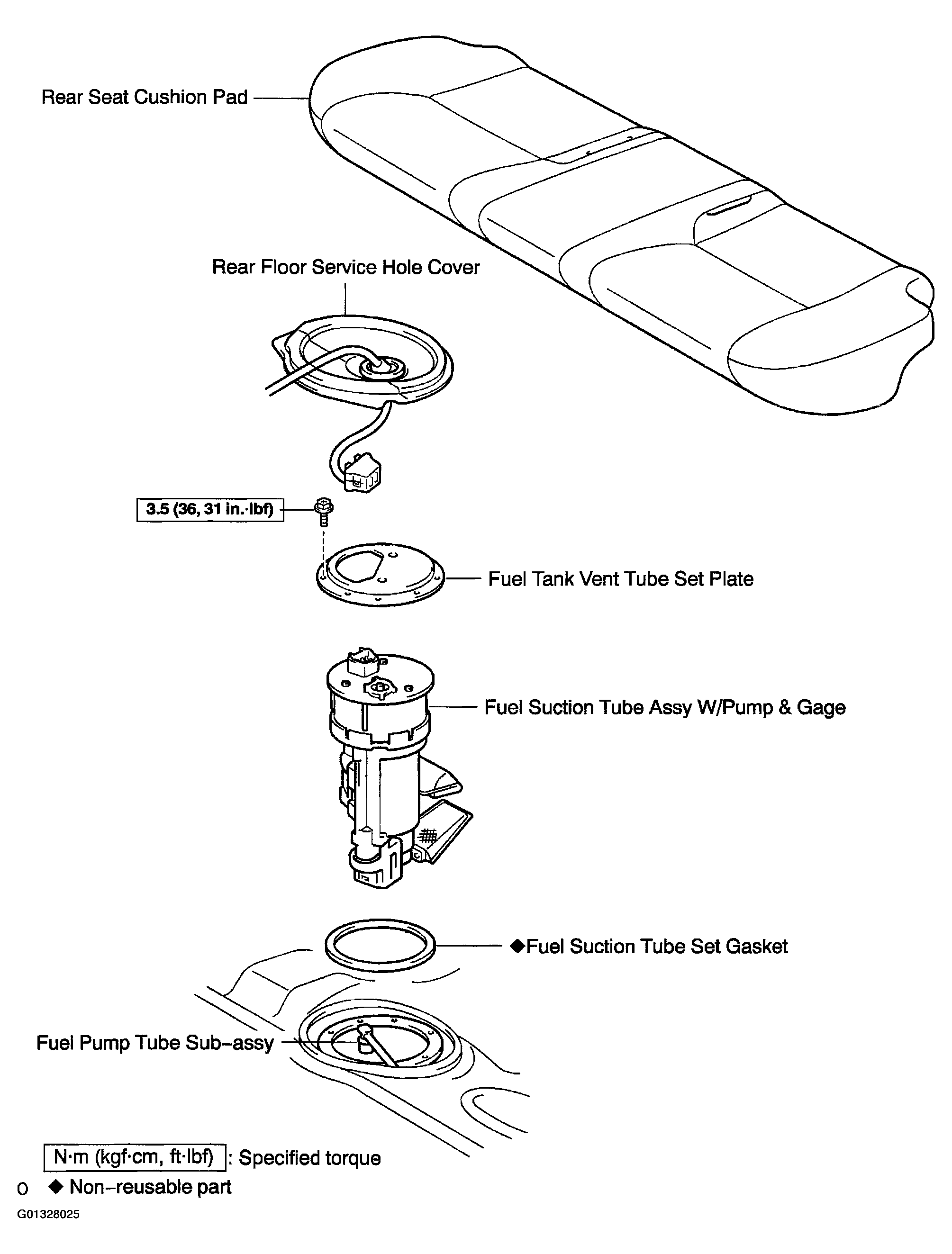

Fig 3: Identifying Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
