Location
Power Window Control System: Location
Download the full database via torrent (~1.1 TB)

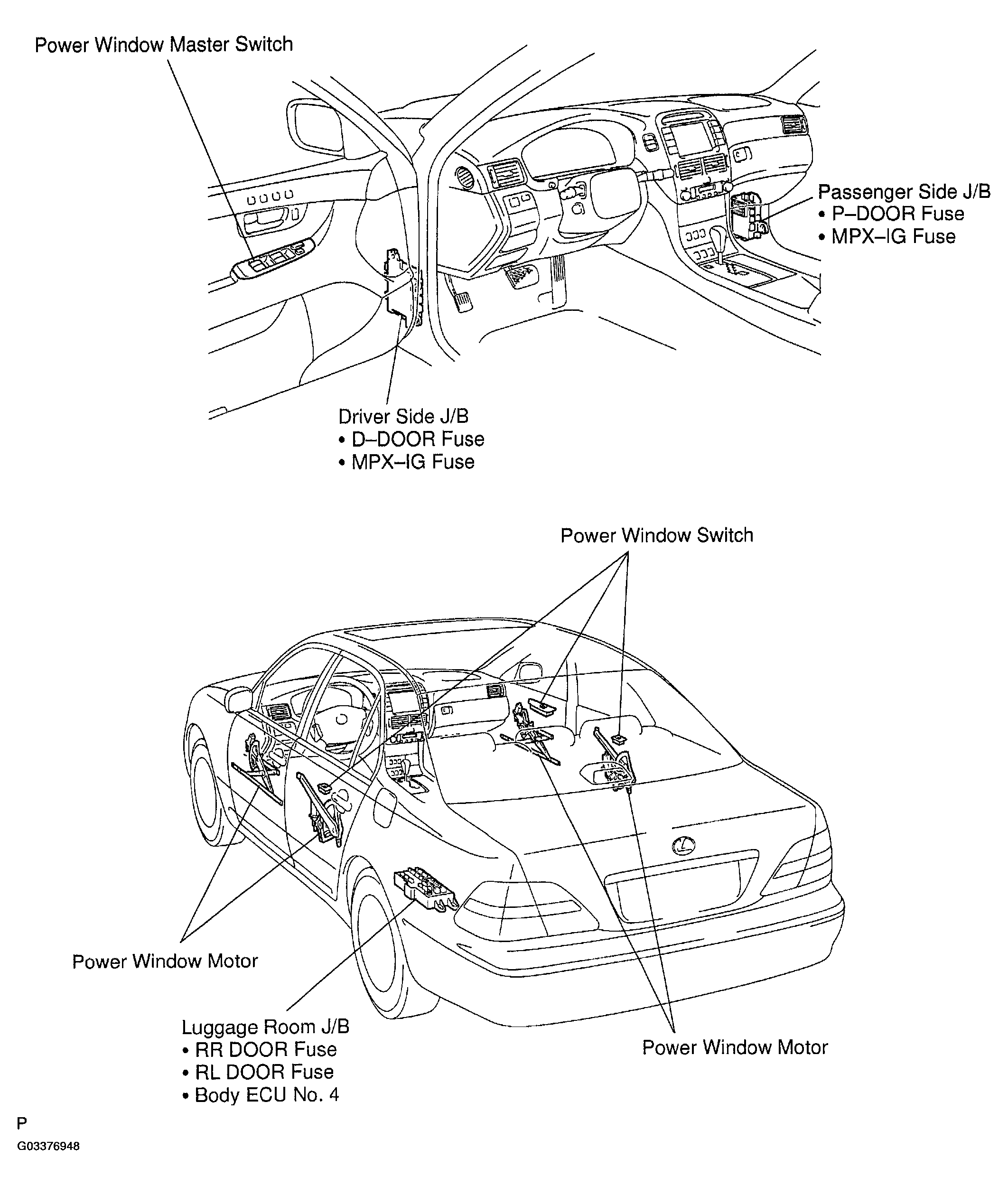

Fig 1: Locating Power Window Control System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
