Overhead Junction Block: Components

Download the full database via torrent (~1.1 TB)

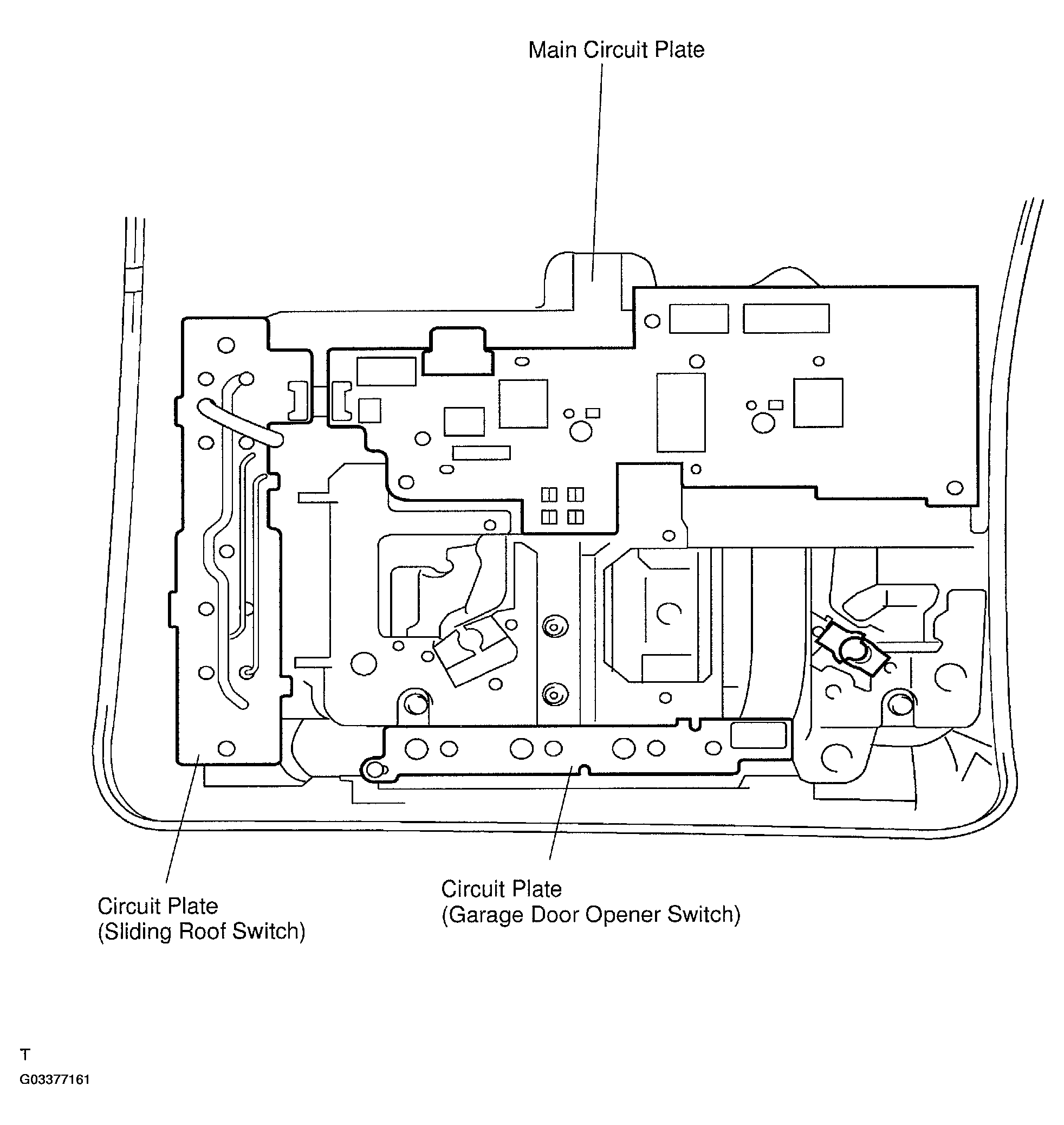

Fig 1: Identifying Circuit Plate Components
G03377161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

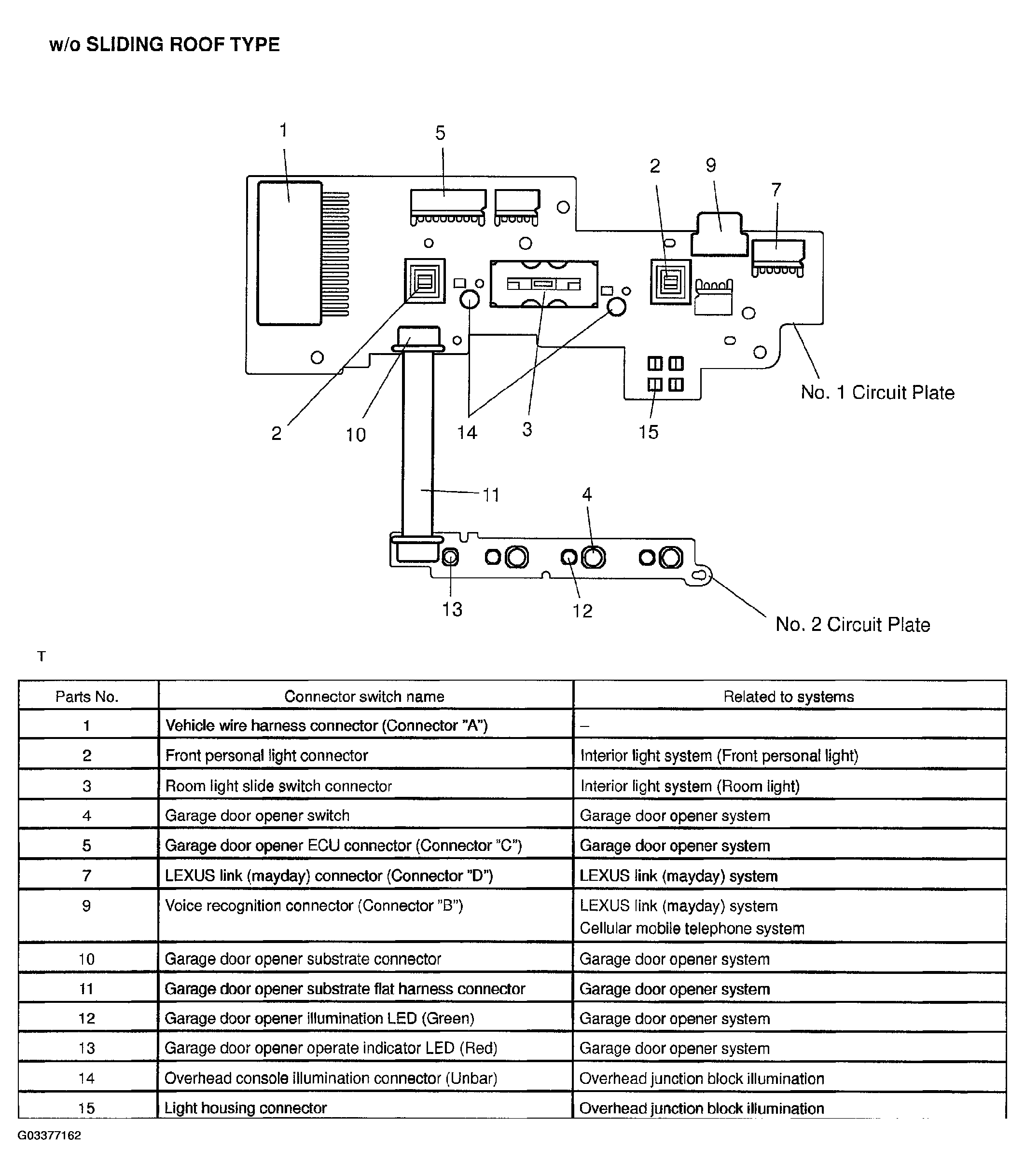

Fig 2: Identifying Circuit Plate Components - W\O Sliding Roof Type
G03377162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

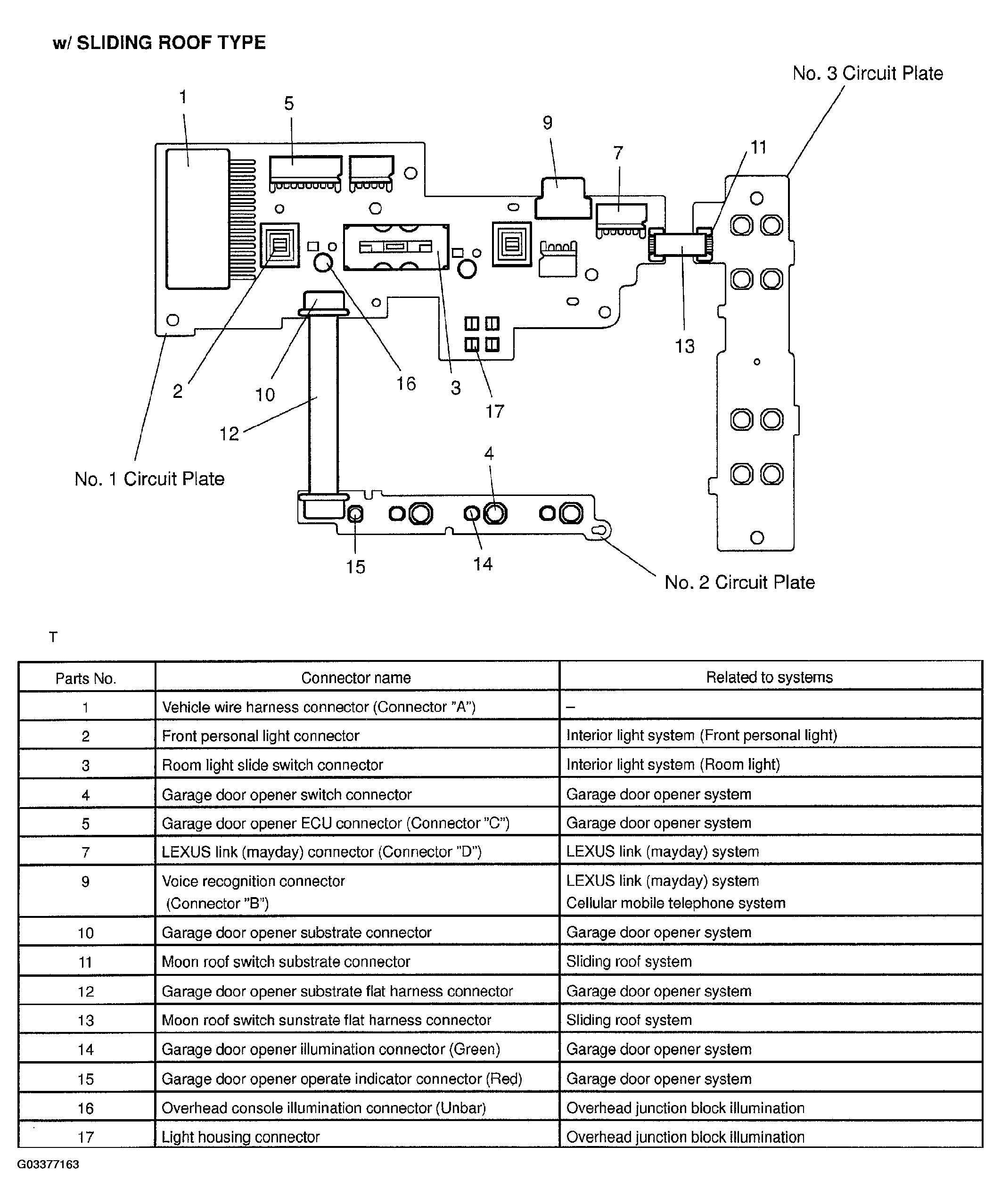

Fig 3: Identifying Circuit Plate Components - W\ Sliding Roof Type
G03377163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
