Connector Identification
For wire color abbreviation definitions for manufacturer diagrams, see WIRE COLOR IDENTIFICATION table.
WIRE COLOR IDENTIFICATION
| Abbreviation | Wire Color |
|---|---|
| B | Black |
| BR | Brown |
| G | Green |
| GR | Gray |
| L | Blue |
| O | Orange |
| P | Pink |
| R | Red |
| W | White |
| Y | Yellow |

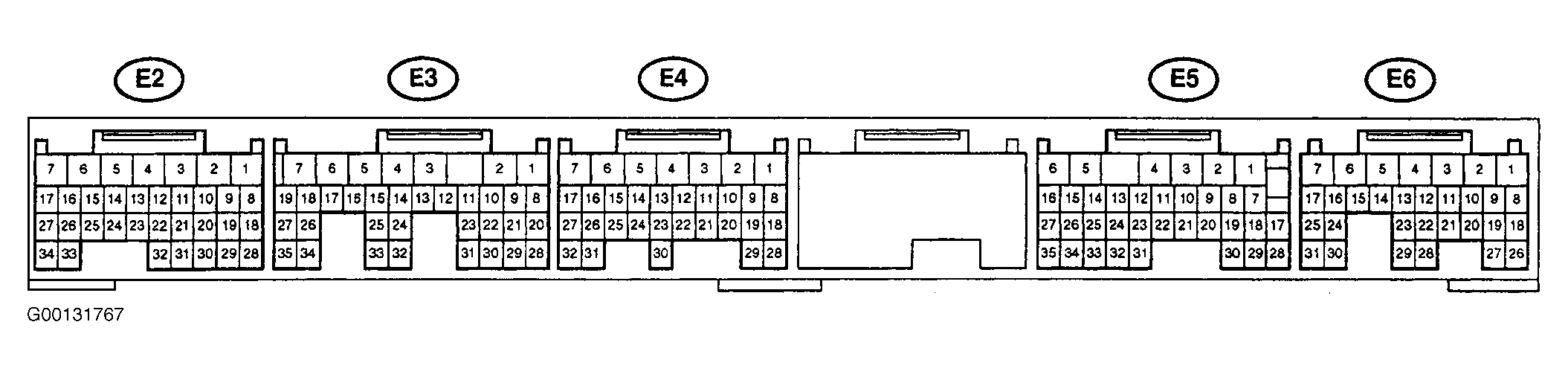

For connector identification for ECM connector views, see Figure.
