Problem Symptoms Table

Download the full database via torrent (~1.1 TB)

HINT:

Use the chart below to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in the order shown. If necessary, repair or replace these parts.

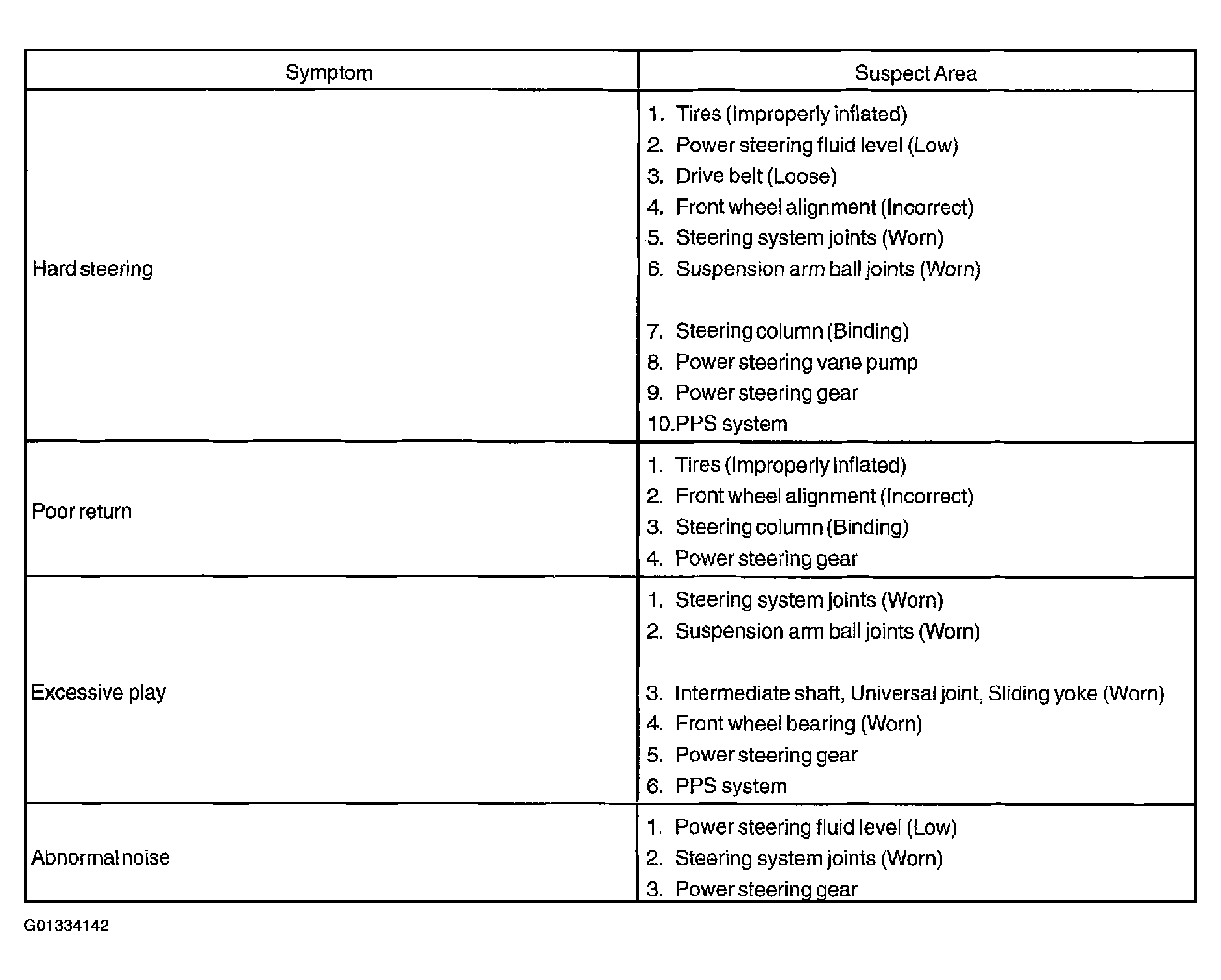

Fig 1: Steering Column Problem Symptoms Chart
G01334142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:
