Home >> Lexus >> 2004 >> ES 330 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - Diagnosis >> Location

Engine Control System - Diagnosis: Location

Download the full database via torrent (~1.1 TB)

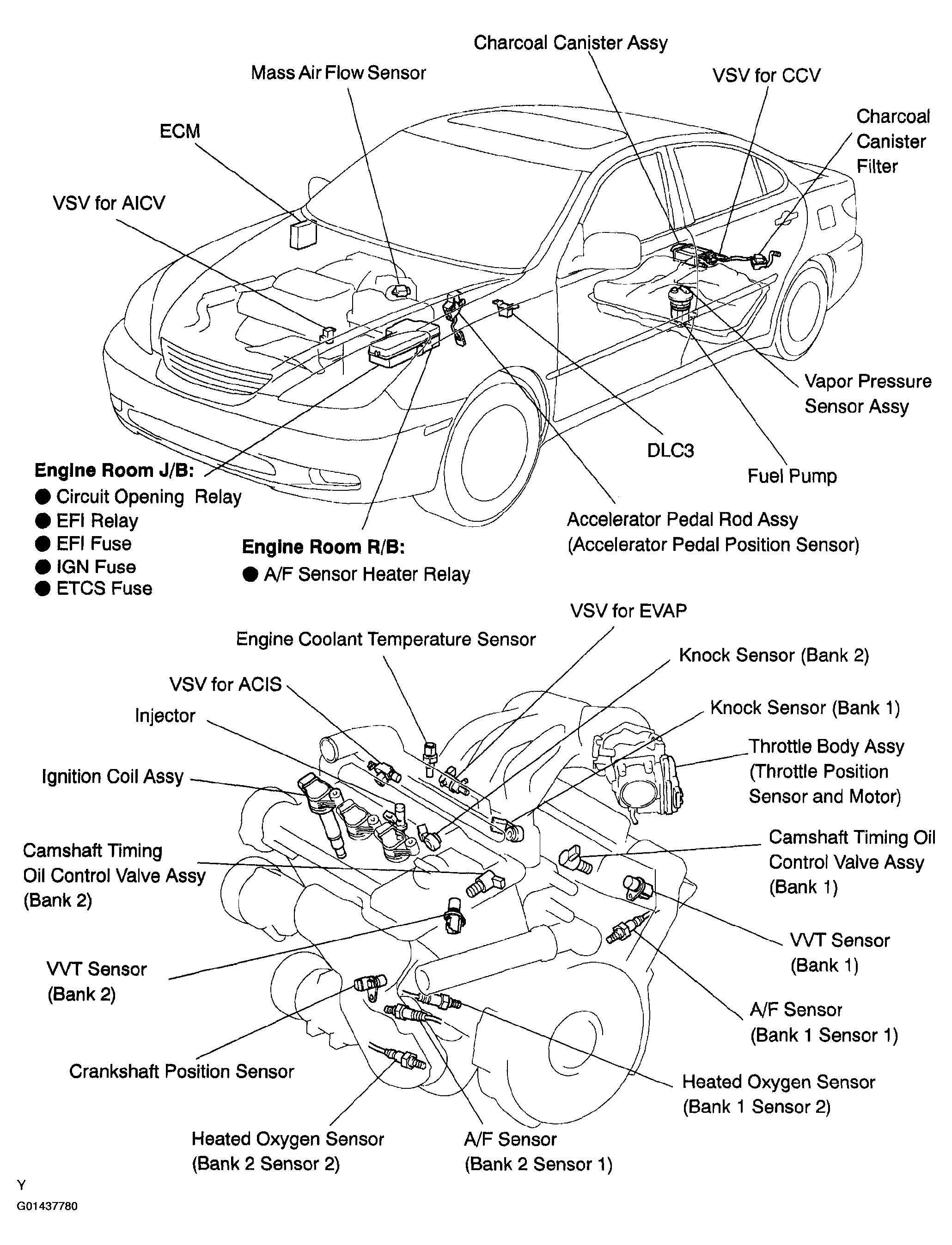

Fig 1: Identifying SFI System Components Location

G01437780

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
