Engine Control System - Diagnosis
>>
Problem Symptoms Table
Problem Symptoms Table
Download the full database via torrent (~1.1 TB)

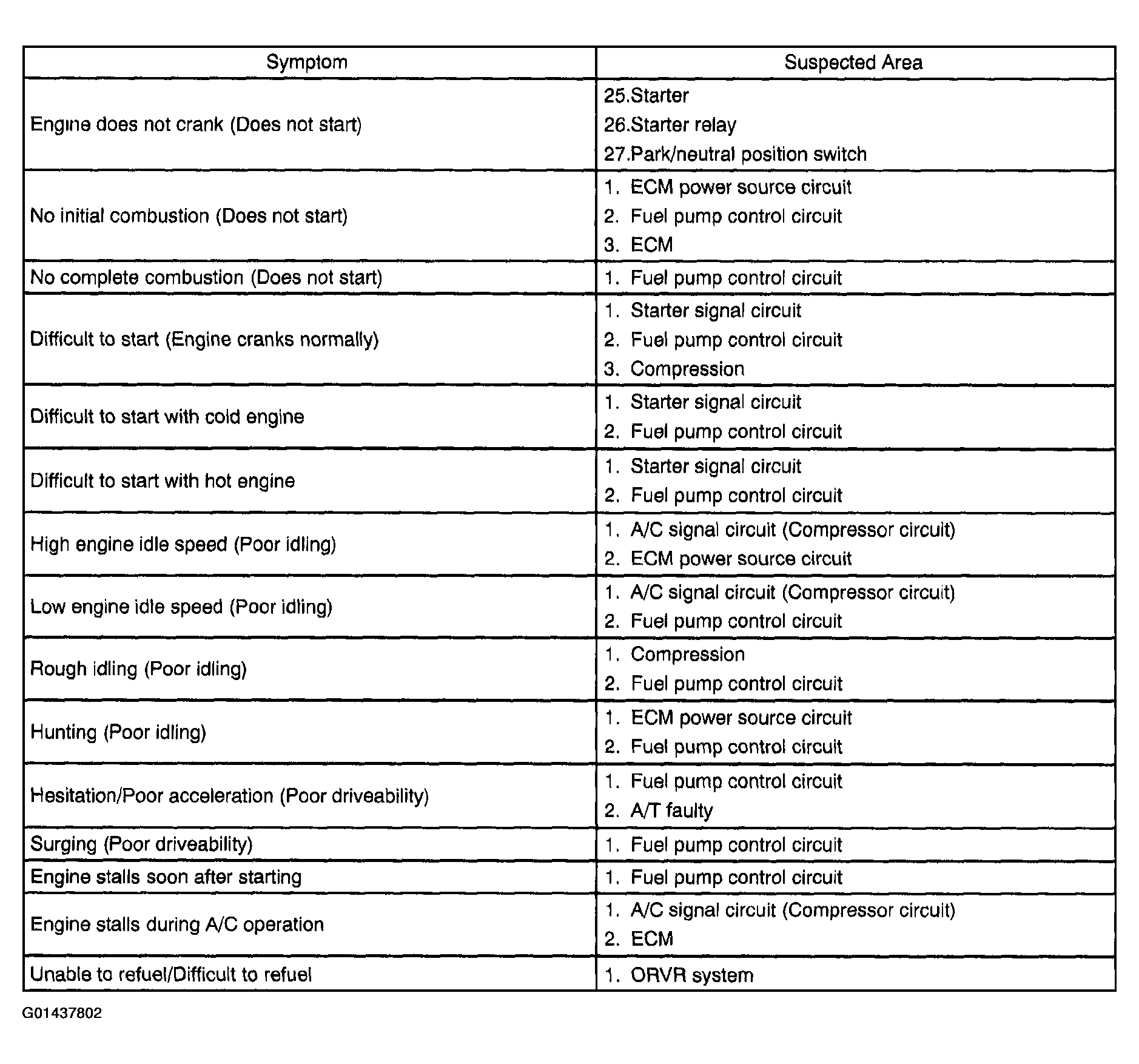

Fig 1: SFI System Problem Symptoms Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
