Knock Sensor, Intake Manifold (3MZ-FE): Components

Download the full database via torrent (~1.1 TB)

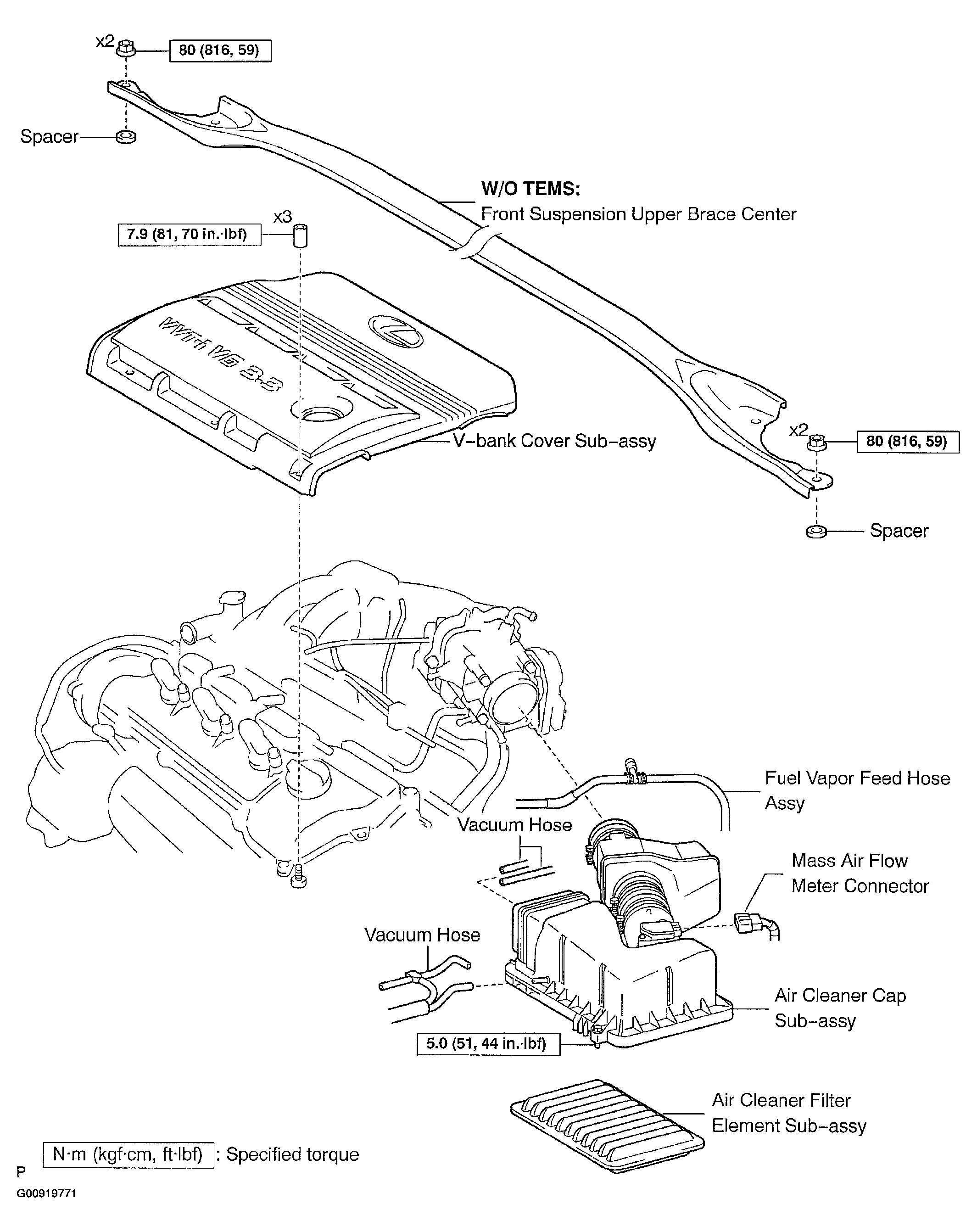

Fig 1: Identifying Engine Control System Components (1 Of 2)

G00919771

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

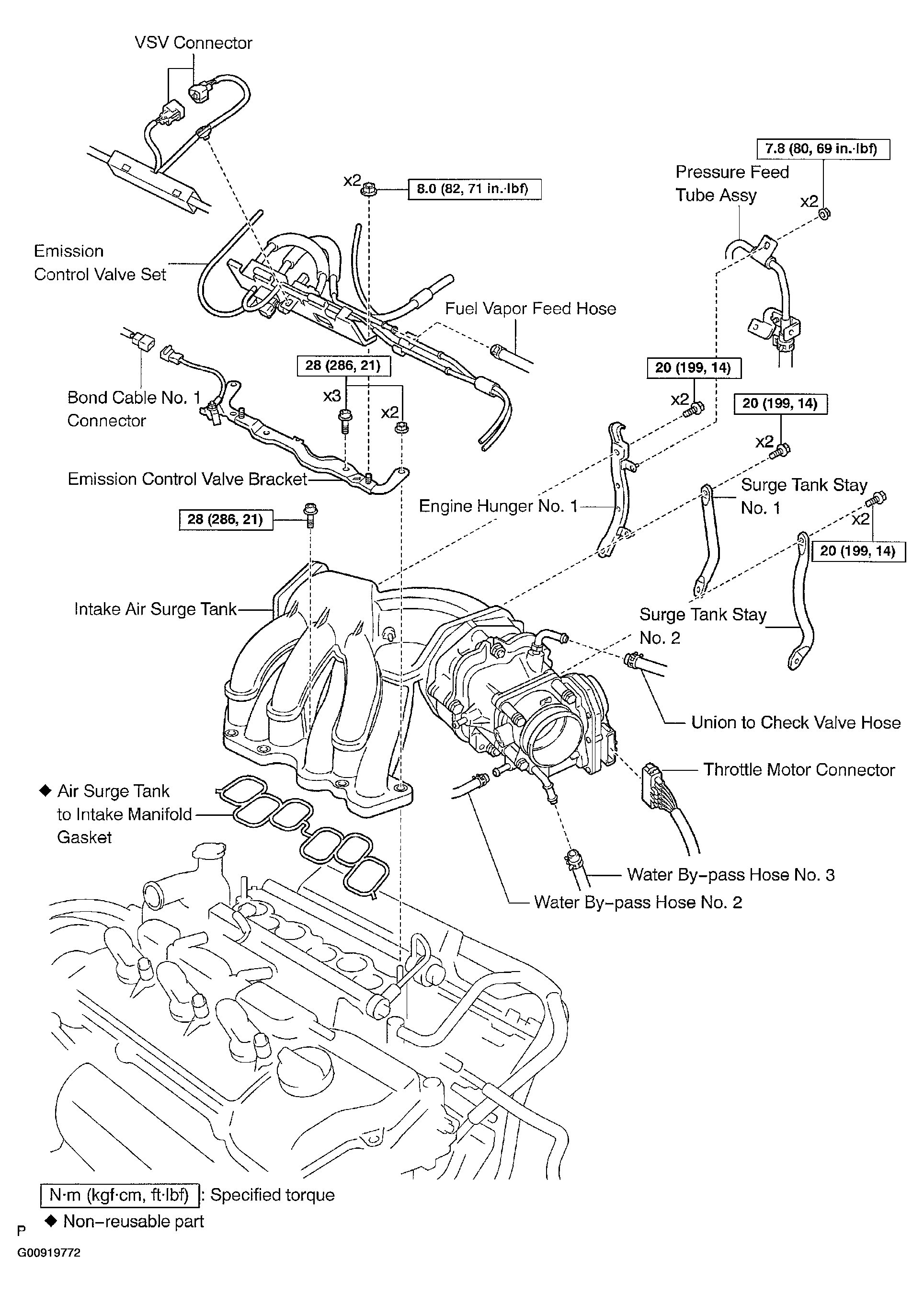

Fig 2: Identifying Engine Control System Components (2 Of 2)

G00919772

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

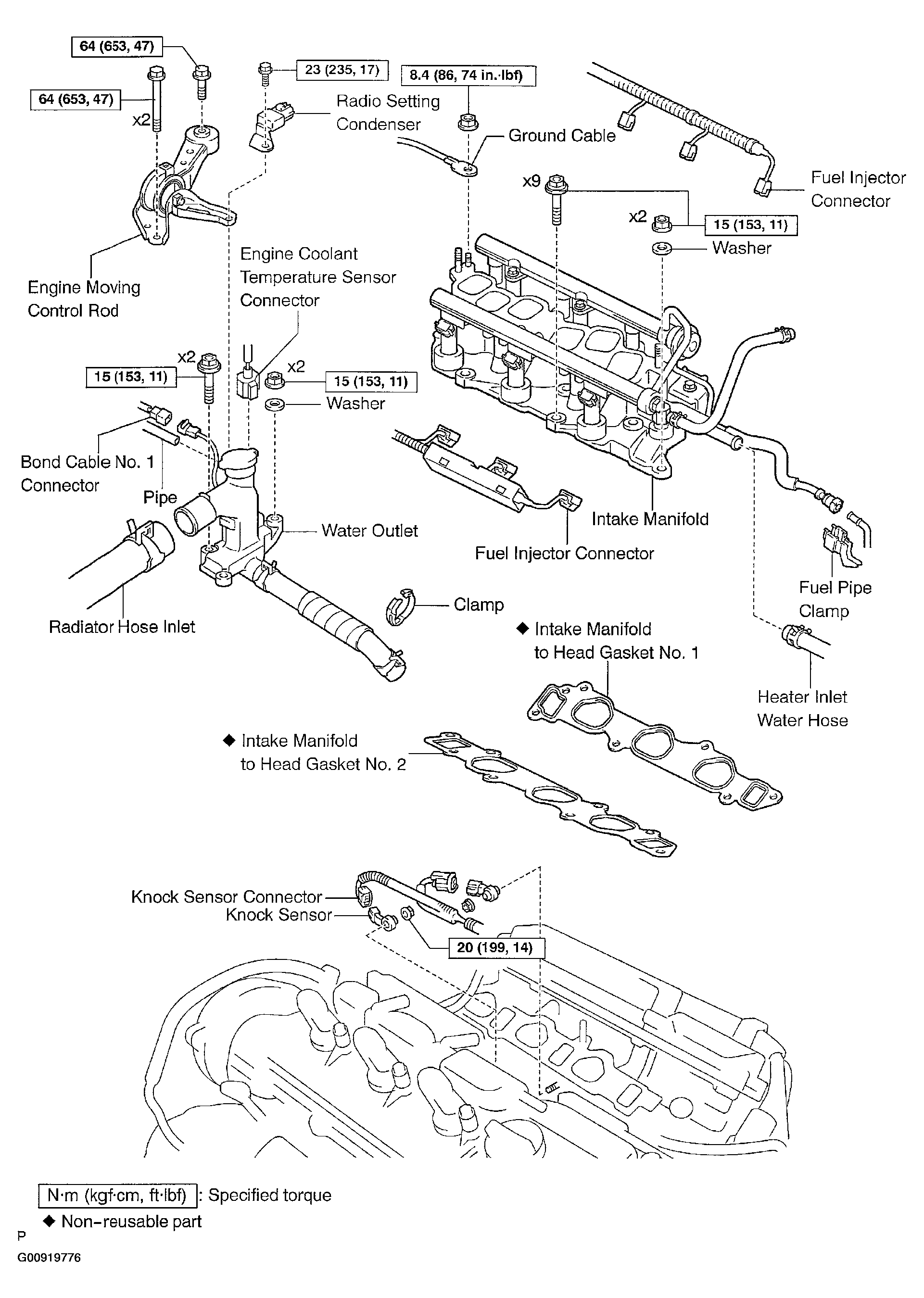

Fig 3: Identifying Engine Control System Components (3 Of 2)

G00919776

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
