Generator ASSY: Components

Download the full database via torrent (~1.1 TB)

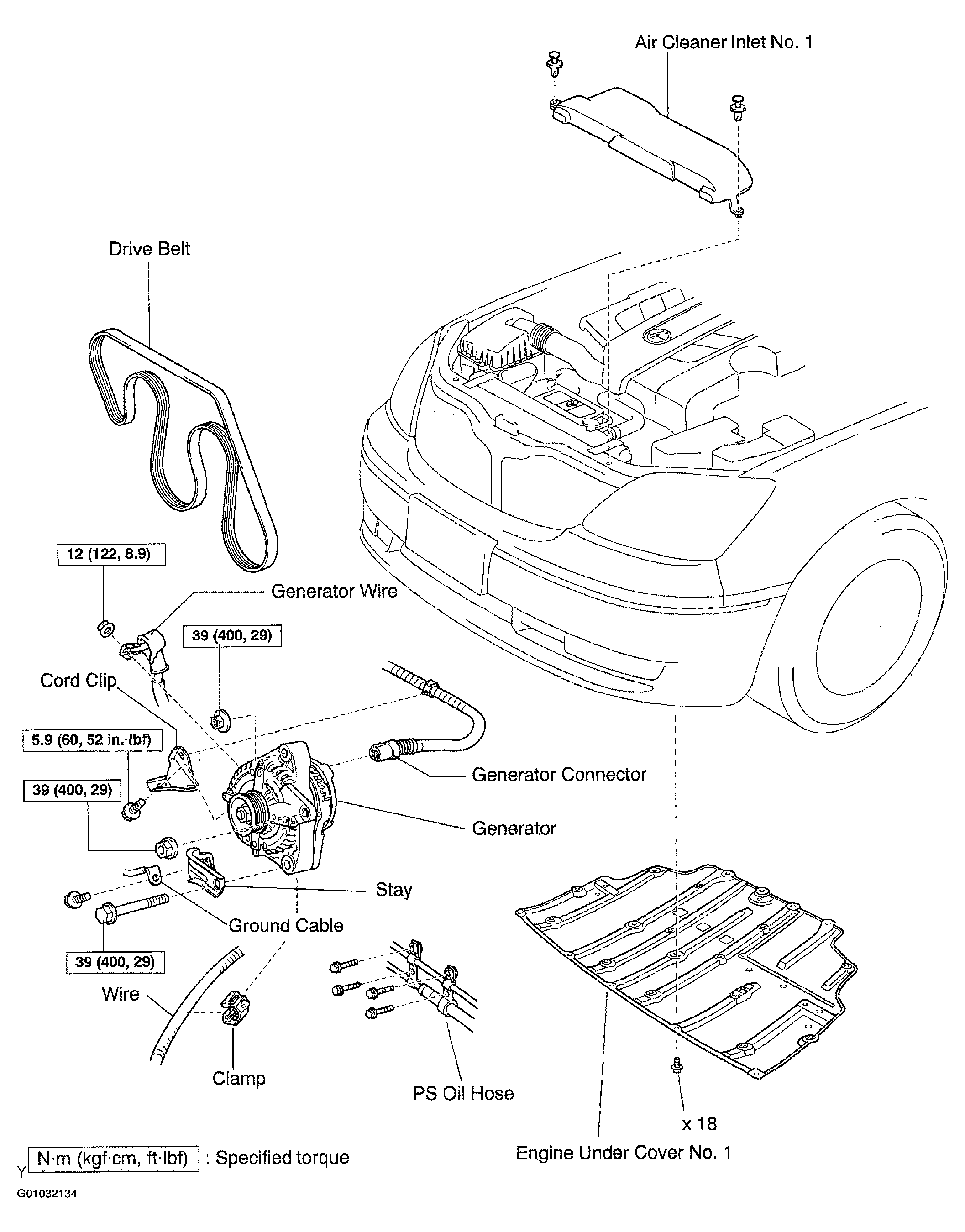

Fig 1: Identifying Generator Assy Components
G01032134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

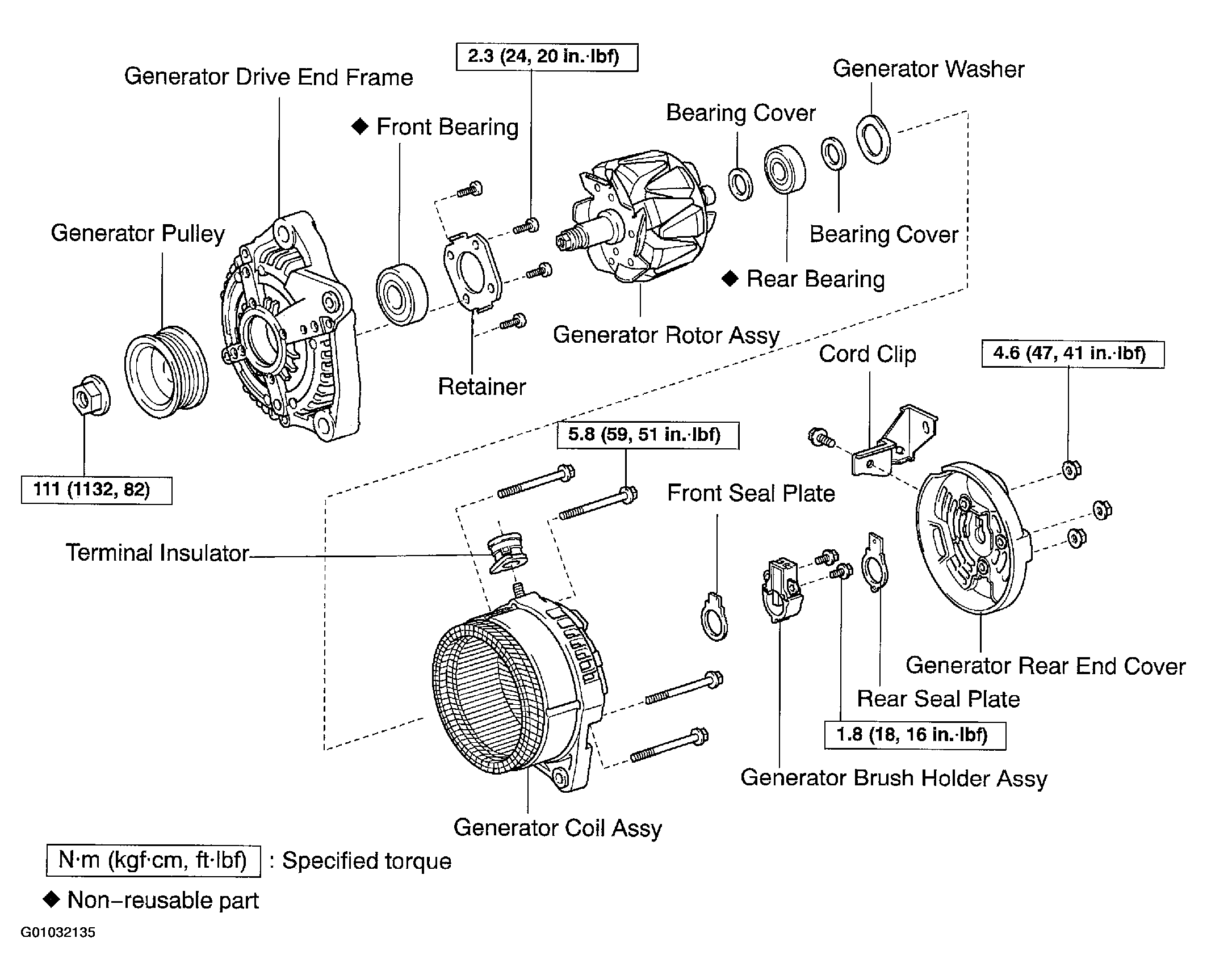

Fig 2: Exploded View Of Generator Assy Components
G01032135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
