System Diagram

Download the full database via torrent (~1.1 TB)

The starting system rotates the starter motor according to the signals from the ignition switch.

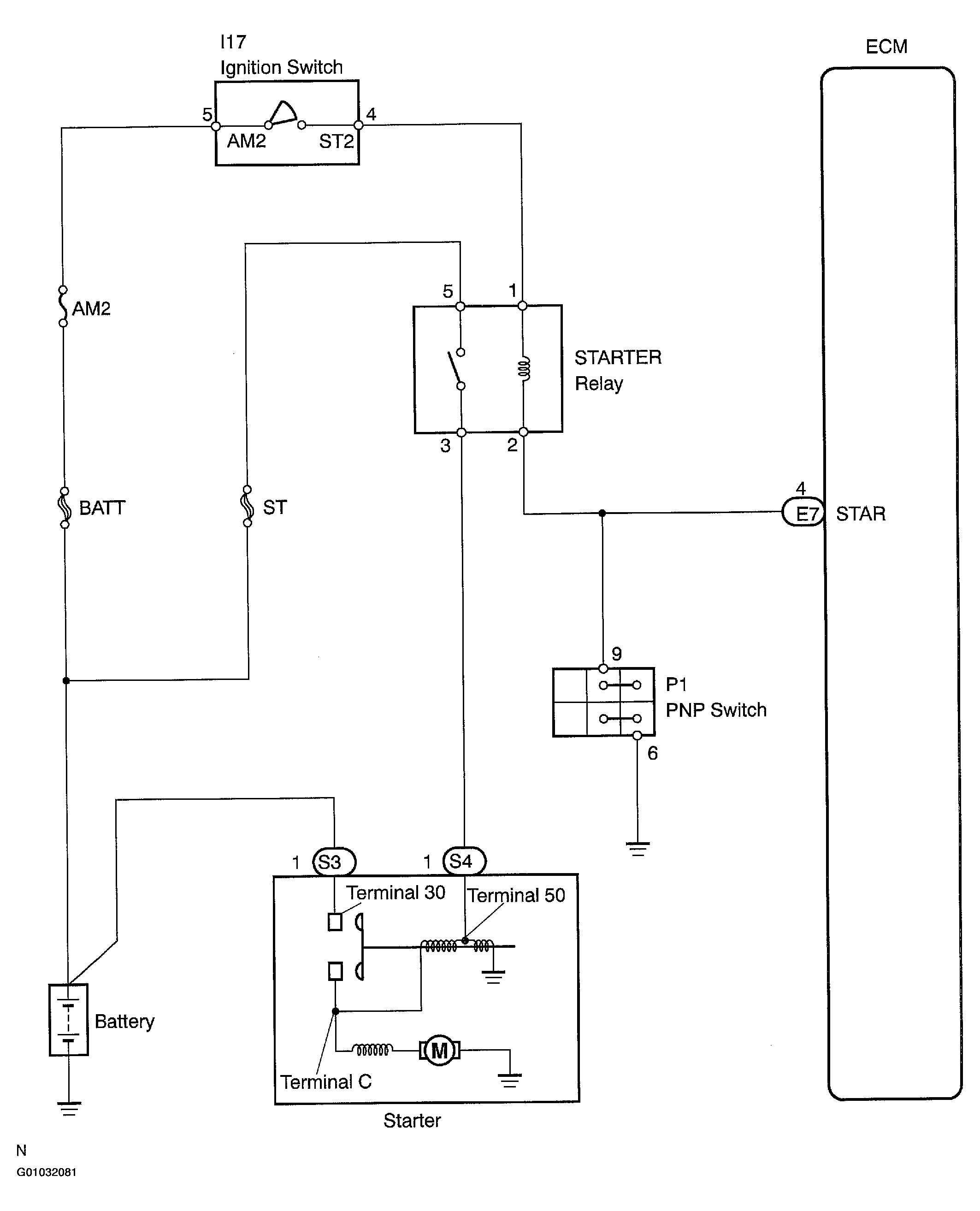

Fig 1: Starting System Wiring Diagram
G01032081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
