Camshaft Timing Oil Control Valve ASSY LH
>>
Components
Camshaft Timing Oil Control Valve ASSY LH: Components
Download the full database via torrent (~1.1 TB)

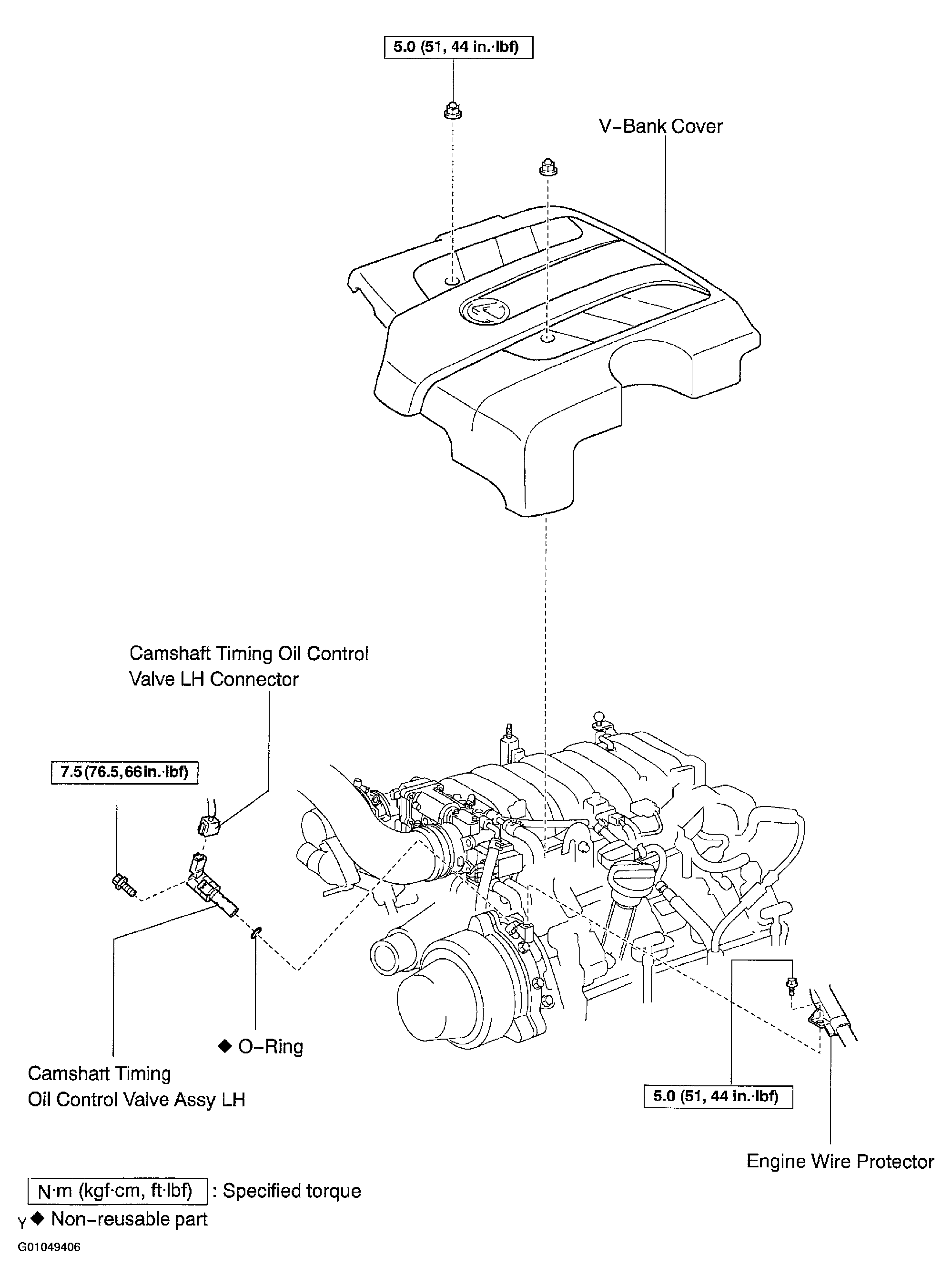

Fig 1: Identifying Camshaft Timing Oil Control Valve Assy LH Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
