LS 430
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System
>>
Knock Sensor
>>
Components
Knock Sensor: Components
Download the full database via torrent (~1.1 TB)

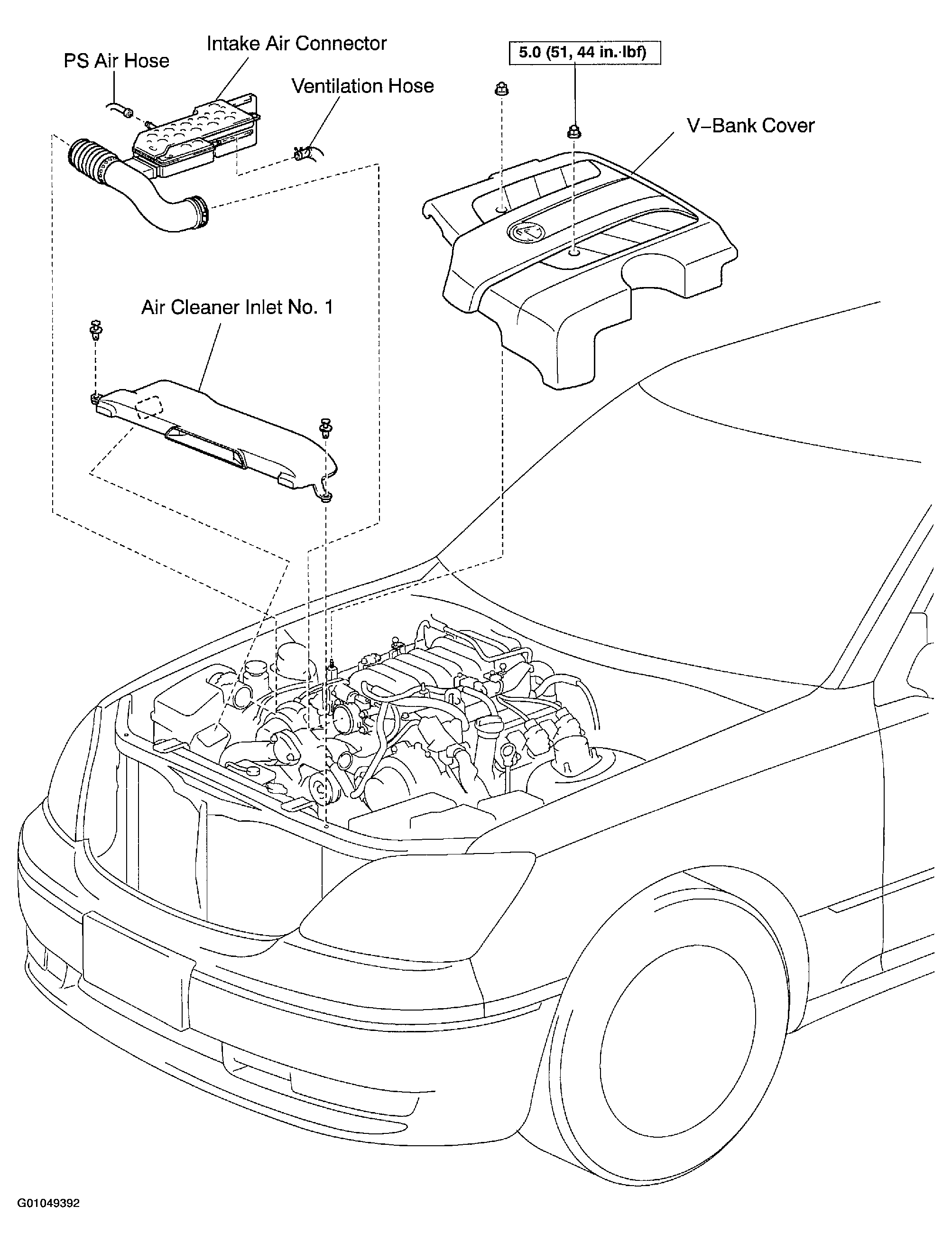

Fig 1: Identifying Knock Sensor Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

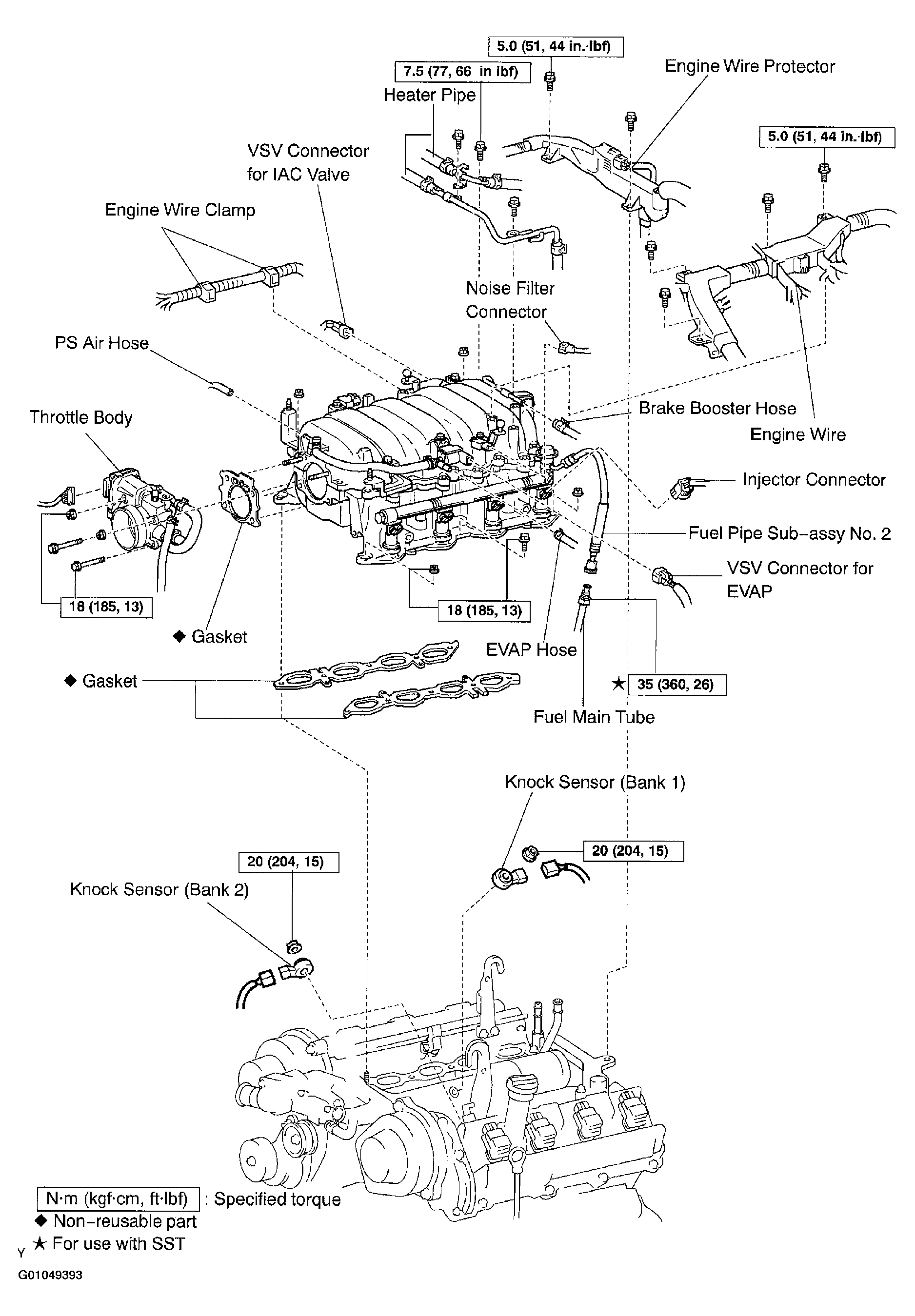

Fig 2: Identifying Knock Sensor Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
