System Diagram
Download the full database via torrent (~1.1 TB)
Engine control system is determined by the ECM based on signals from various sensors.

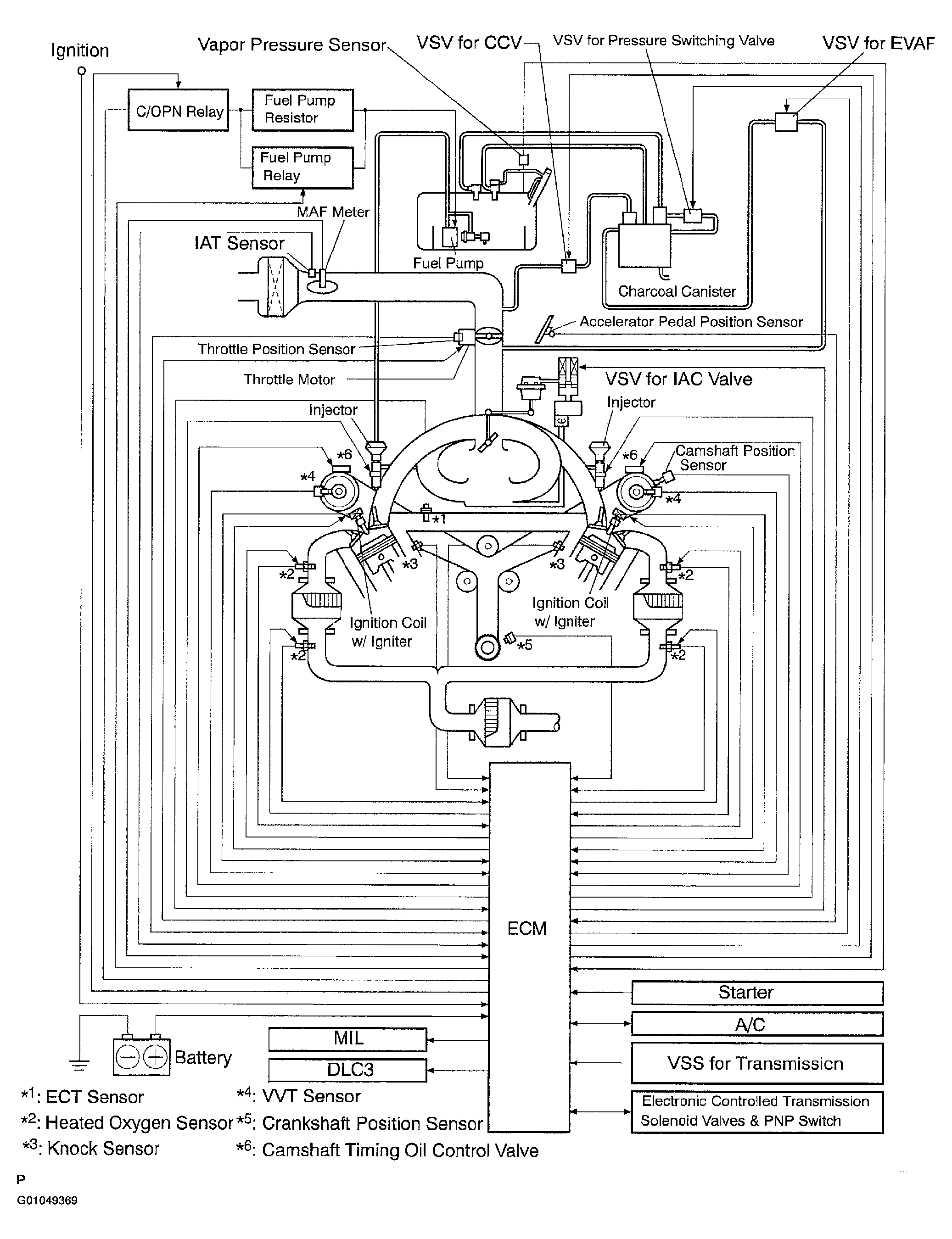

Fig 1: System Diagram - Engine Control System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
