Camshaft Position Sensor: Components

Download the full database via torrent (~1.1 TB)

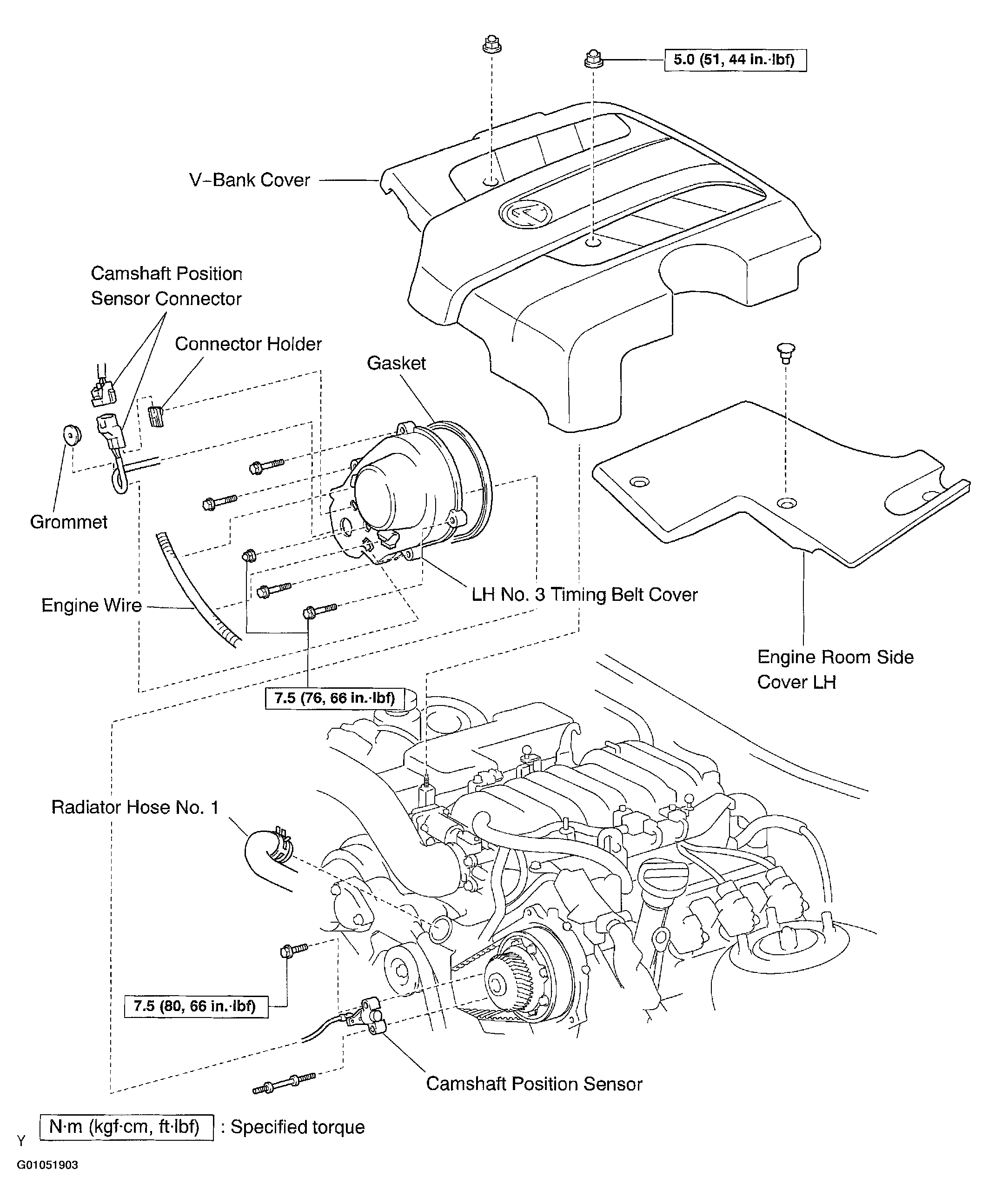

Fig 1: Identifying Camshaft Position Sensor Components

G01051903

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
