System Diagram

Download the full database via torrent (~1.1 TB)

The ECM determines ignition timing based on signals from various sensors.

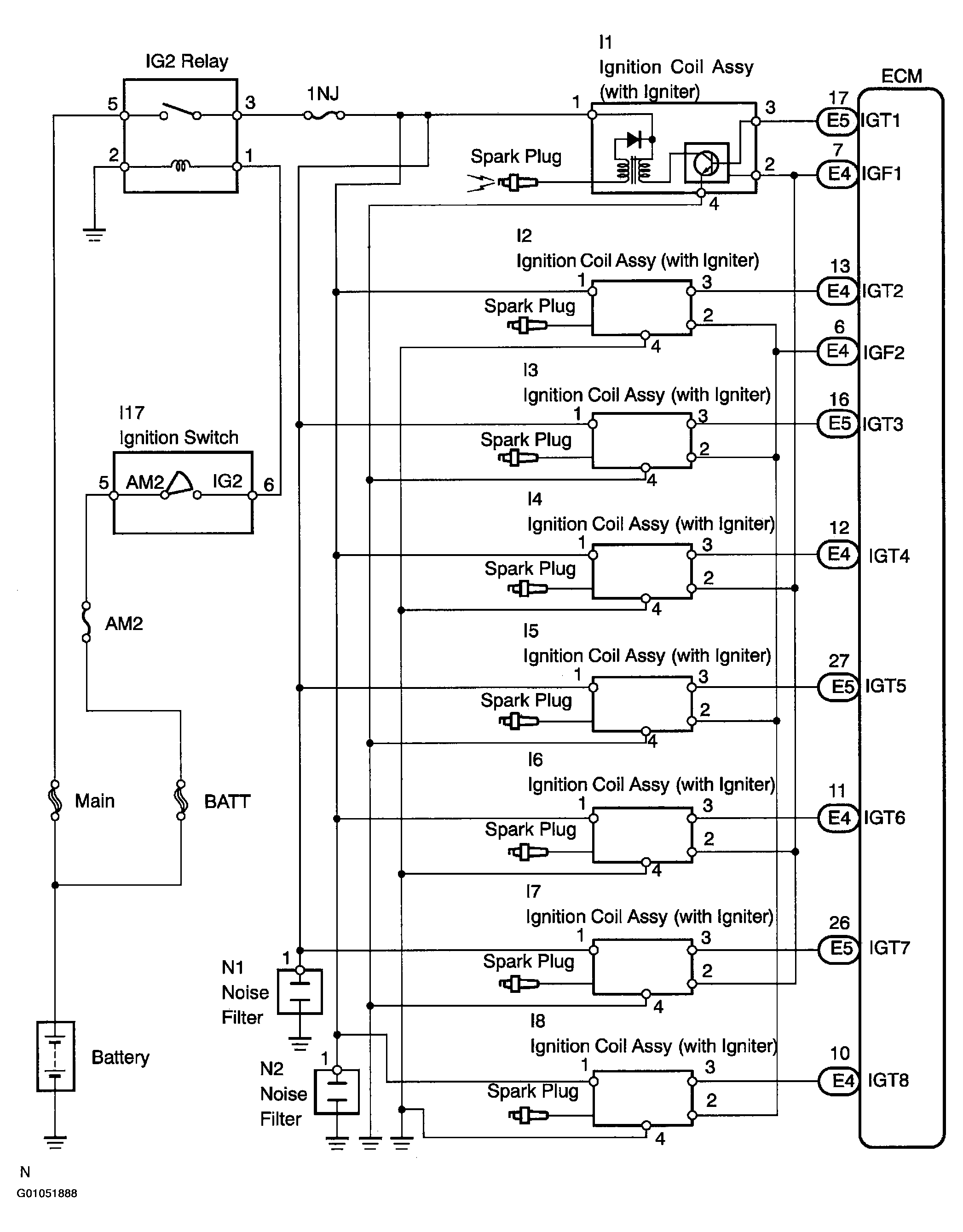

Fig 1: Ignition System Circuit Diagram
G01051888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

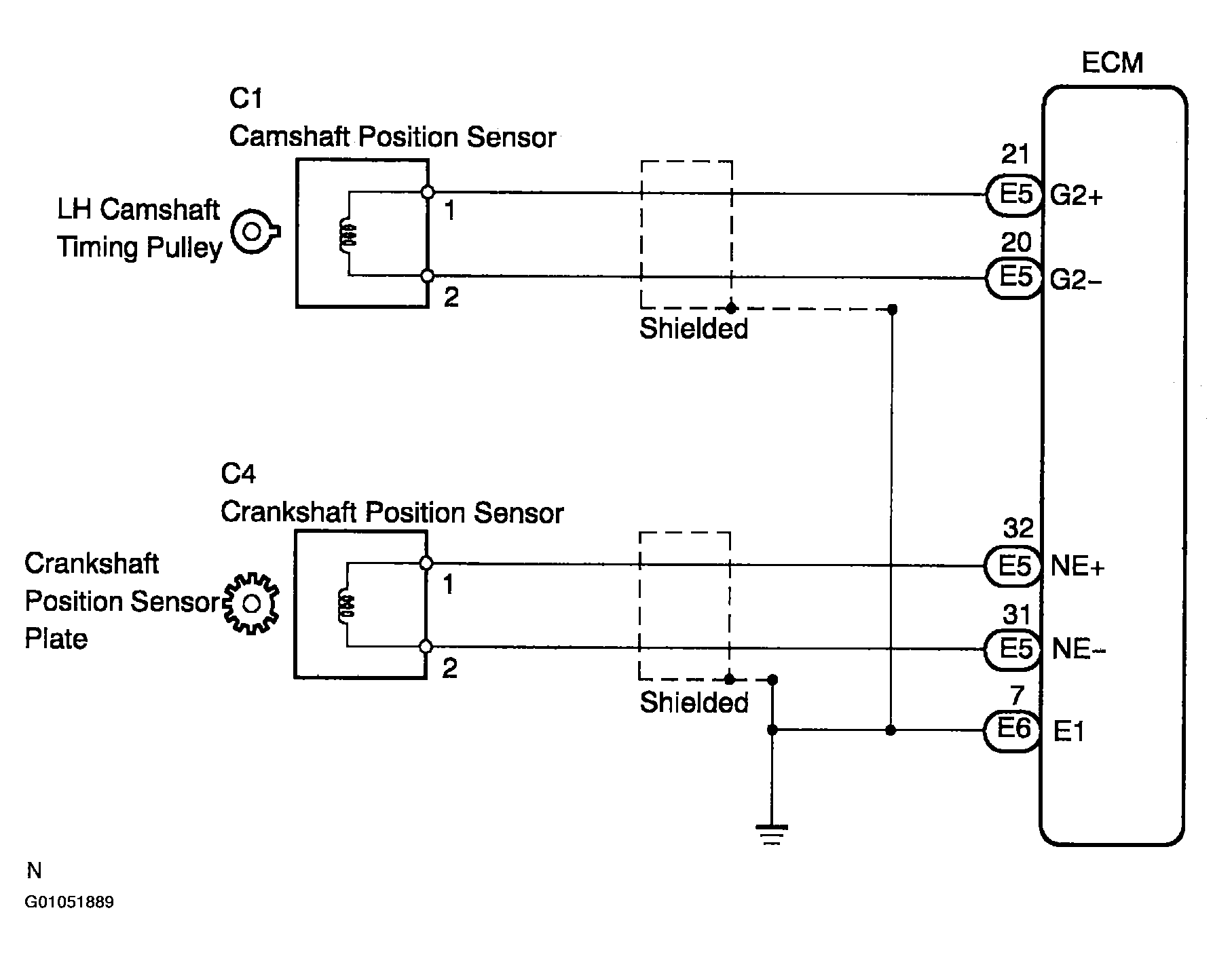

Fig 2: Ignition System Circuit Diagram
G01051889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
