Engine Control System: ECM: Components
Download the full database via torrent (~1.1 TB)

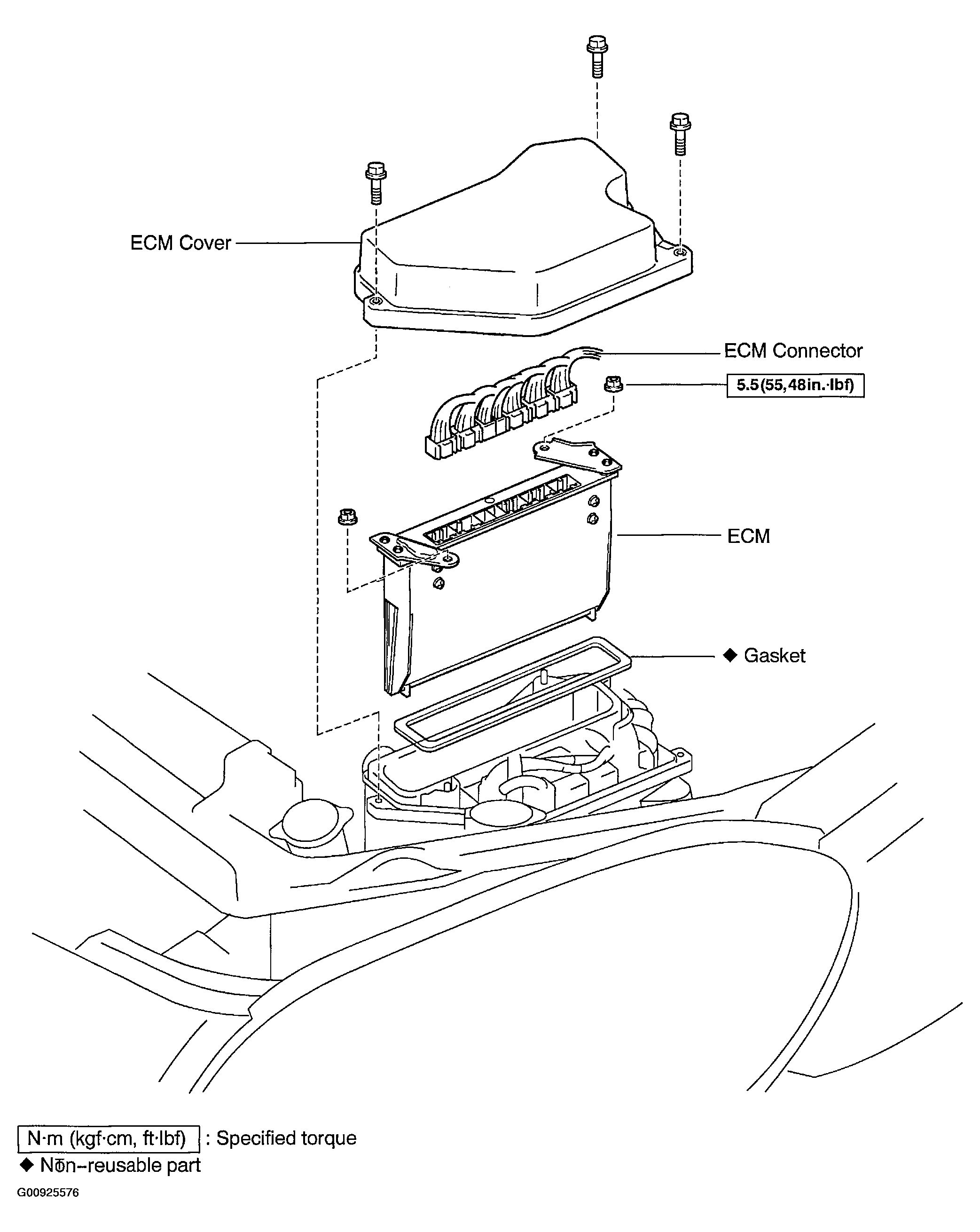

Fig 1: Identifying Components Of ECM
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
