Power Window Control System: Location

Download the full database via torrent (~1.1 TB)
Fig 1: Identifying Power Window Control System Components Location (1 Of 2)
G02946858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

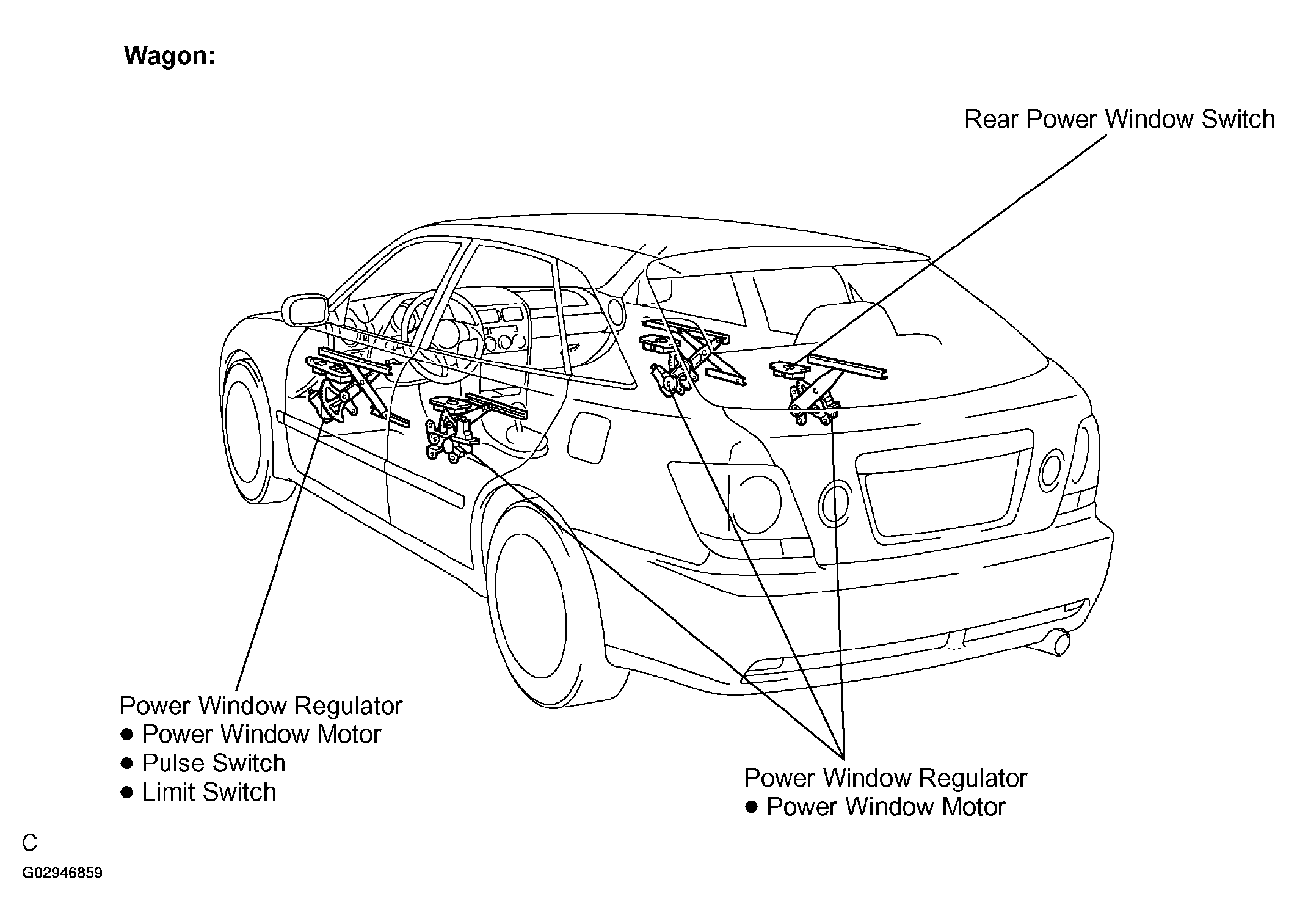

Fig 2: Identifying Power Window Control System Components Location (2 Of 2)
G02946859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
