Charging Systems: Charging: Generator: Components

Download the full database via torrent (~1.1 TB)

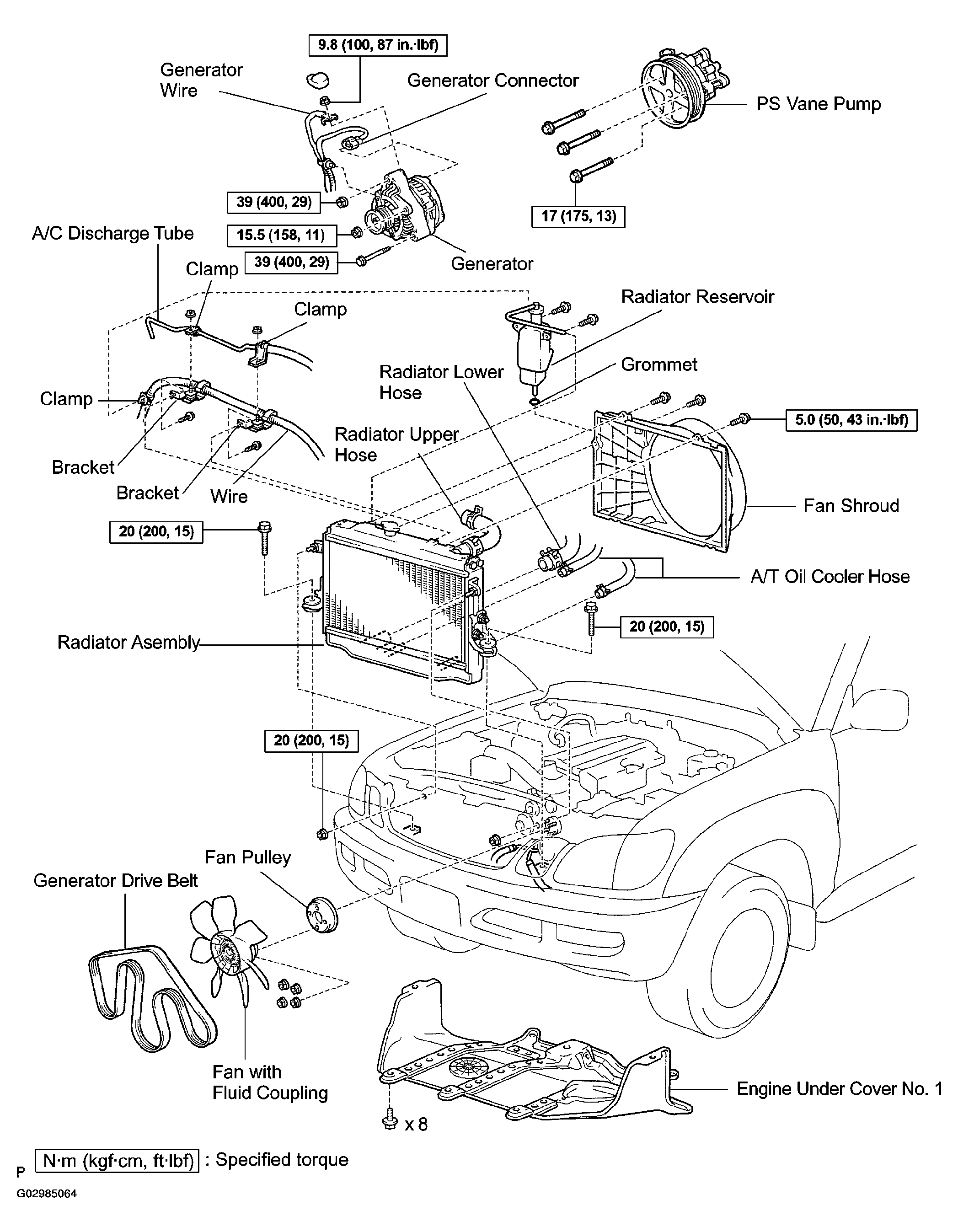

Fig 1: Exploded View Of Components With Torque Specifications
G02985064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

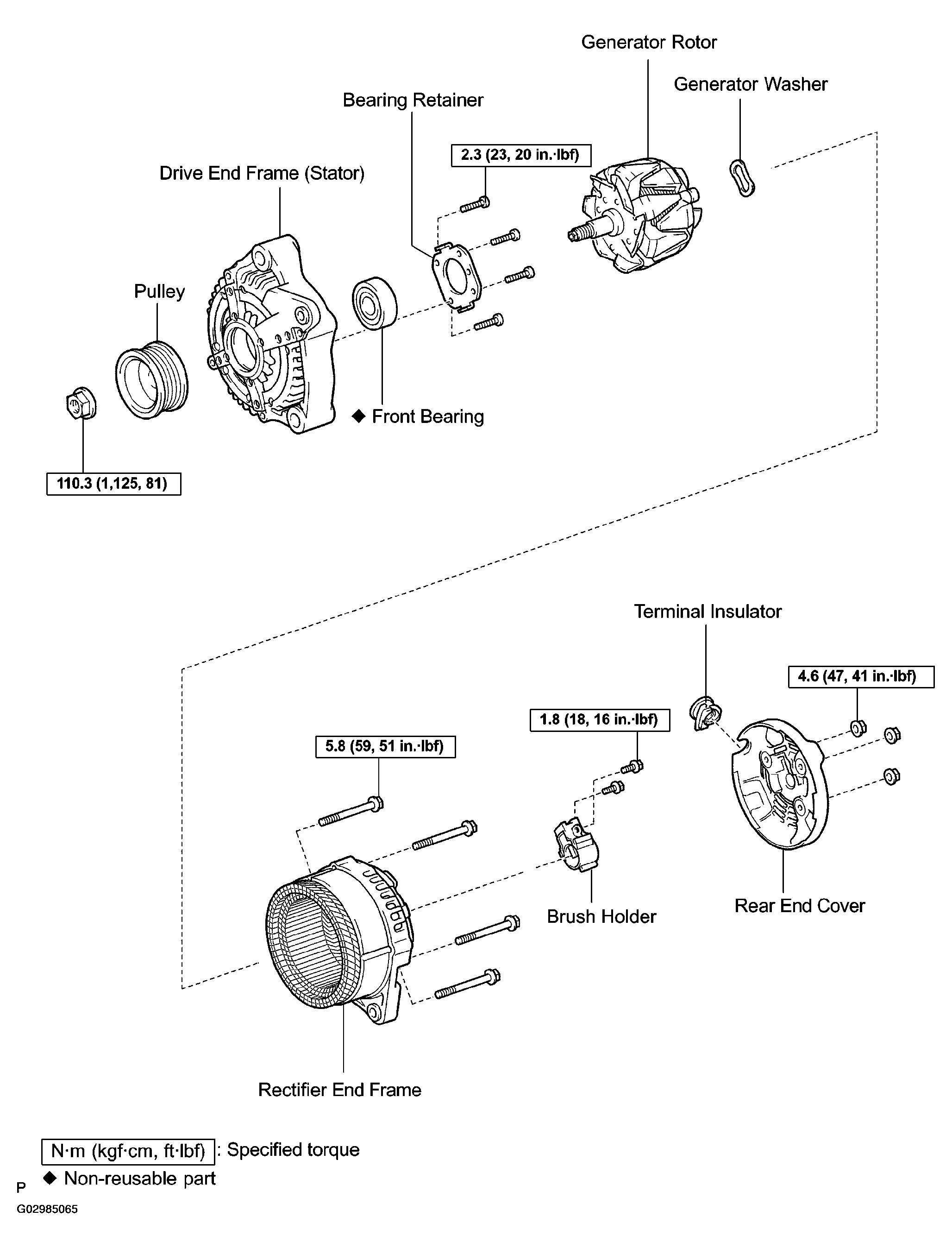

Fig 2: Exploded View Of Generator With Torque Specifications
G02985065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
