RX 330 FWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System
>>
Throttle Body ASSY (3MZ-FE)
>>
Components
Throttle Body ASSY (3MZ-FE): Components
Download the full database via torrent (~1.1 TB)

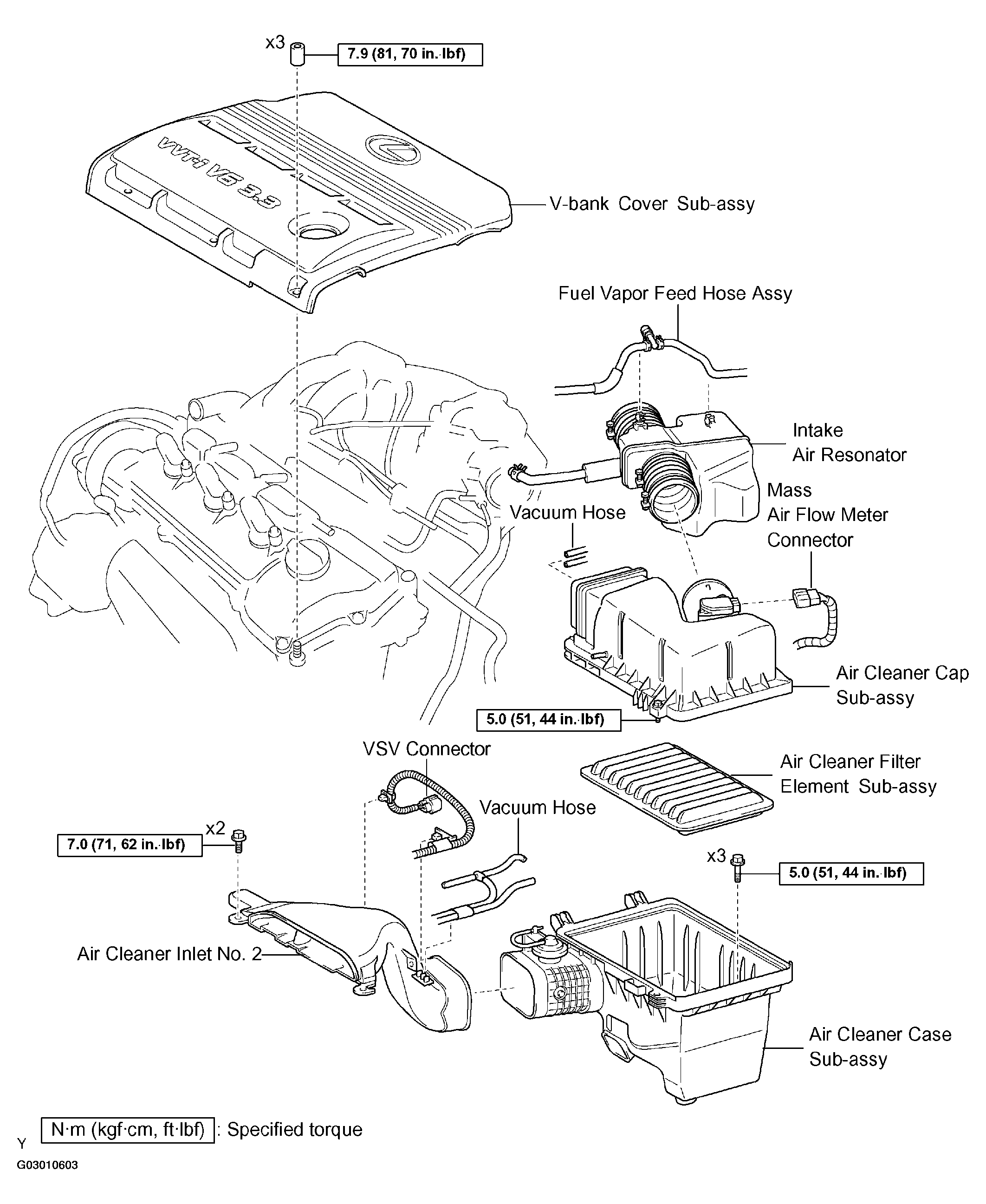

Fig 1: Identifying Throttle Body Assy Components And Replacements
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Throttle Body Assy Components And Replacements (TMC Made)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

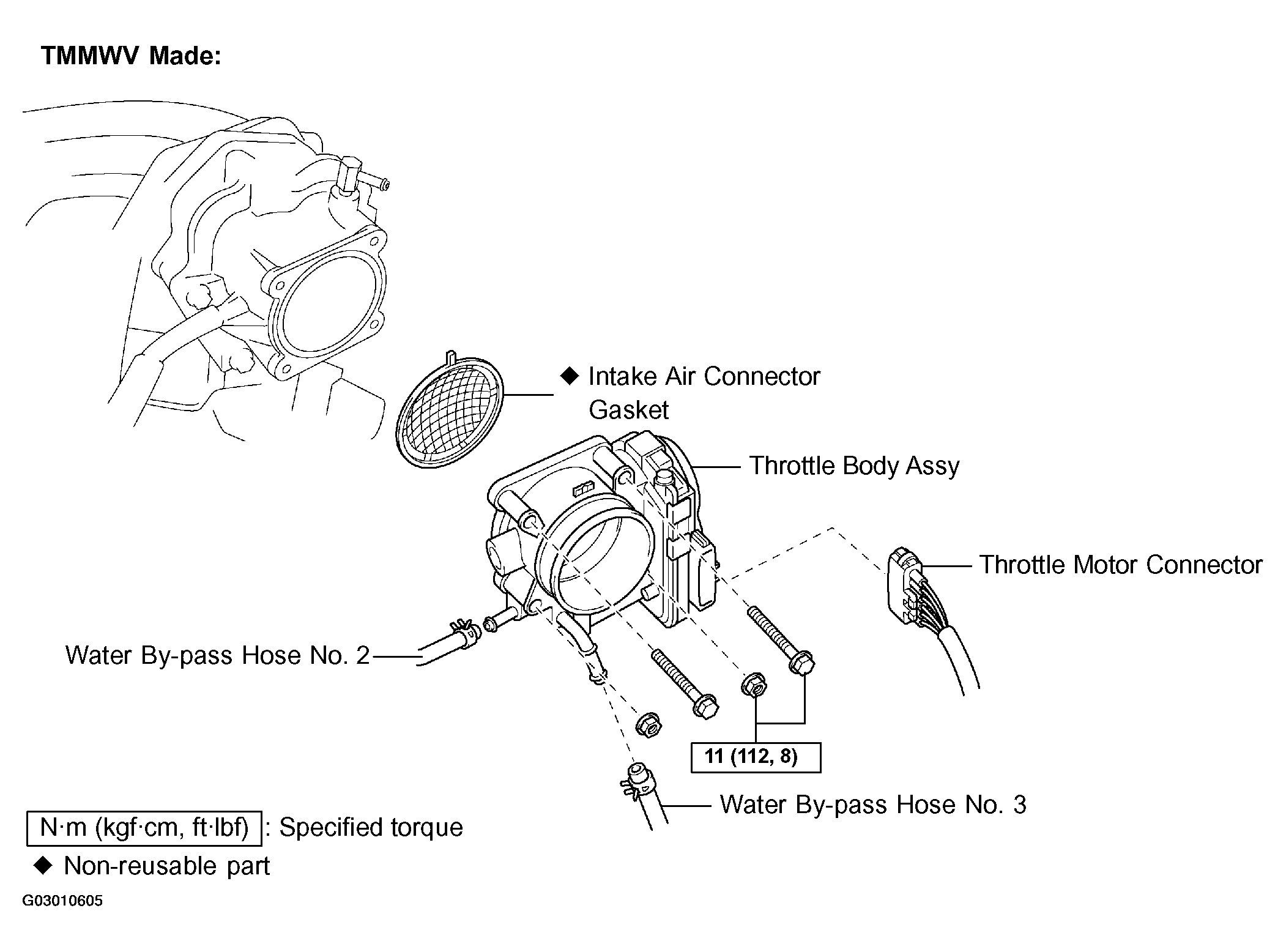

Fig 3: Identifying Throttle Body Assy Components And Replacements (TMMWV Made)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
