Fuel Injector ASSY: Components

Download the full database via torrent (~1.1 TB)

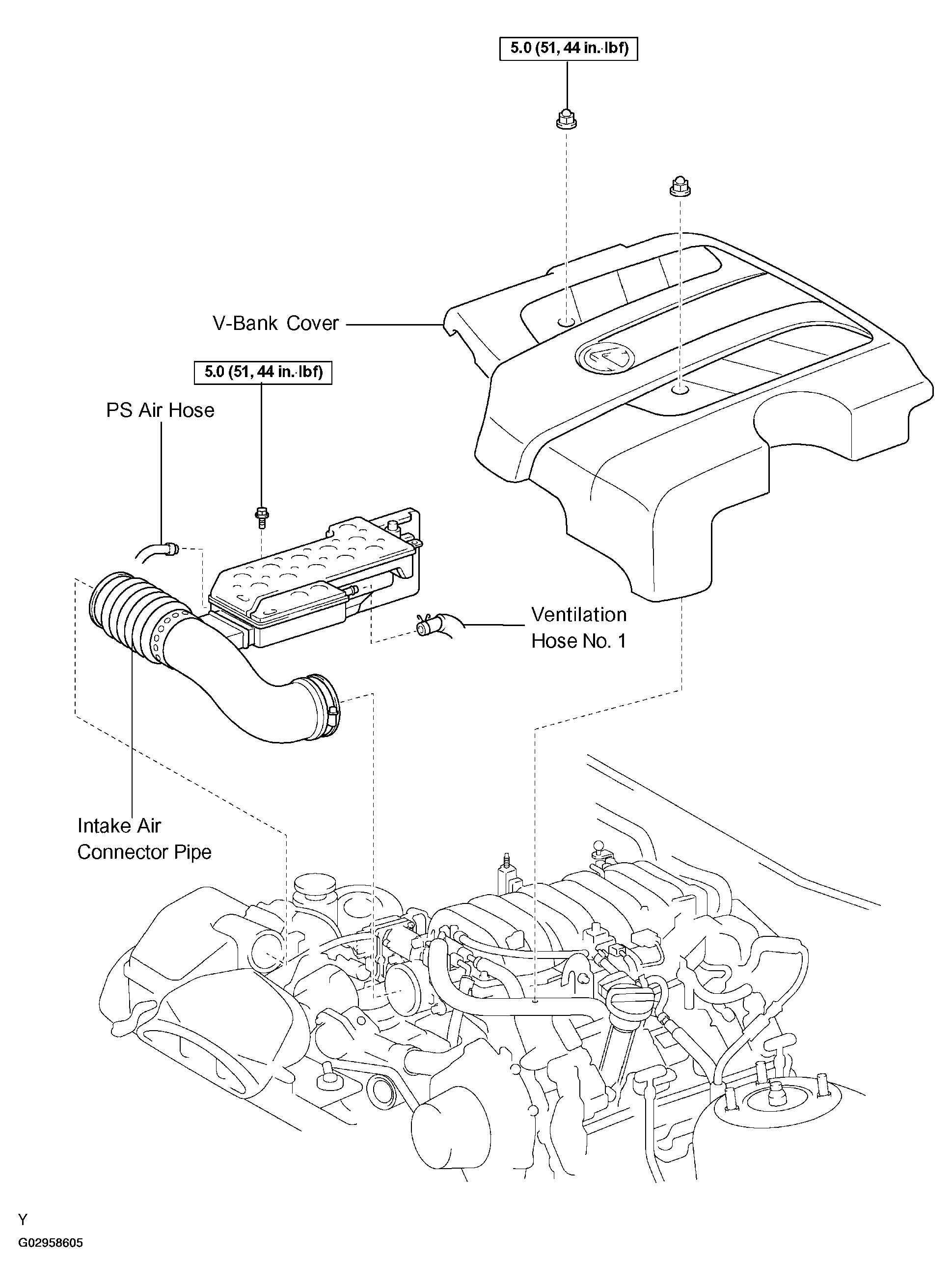

Fig 1: Identifying Fuel Injector Assy Components & Replacements (1 Of 2)
G02958605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

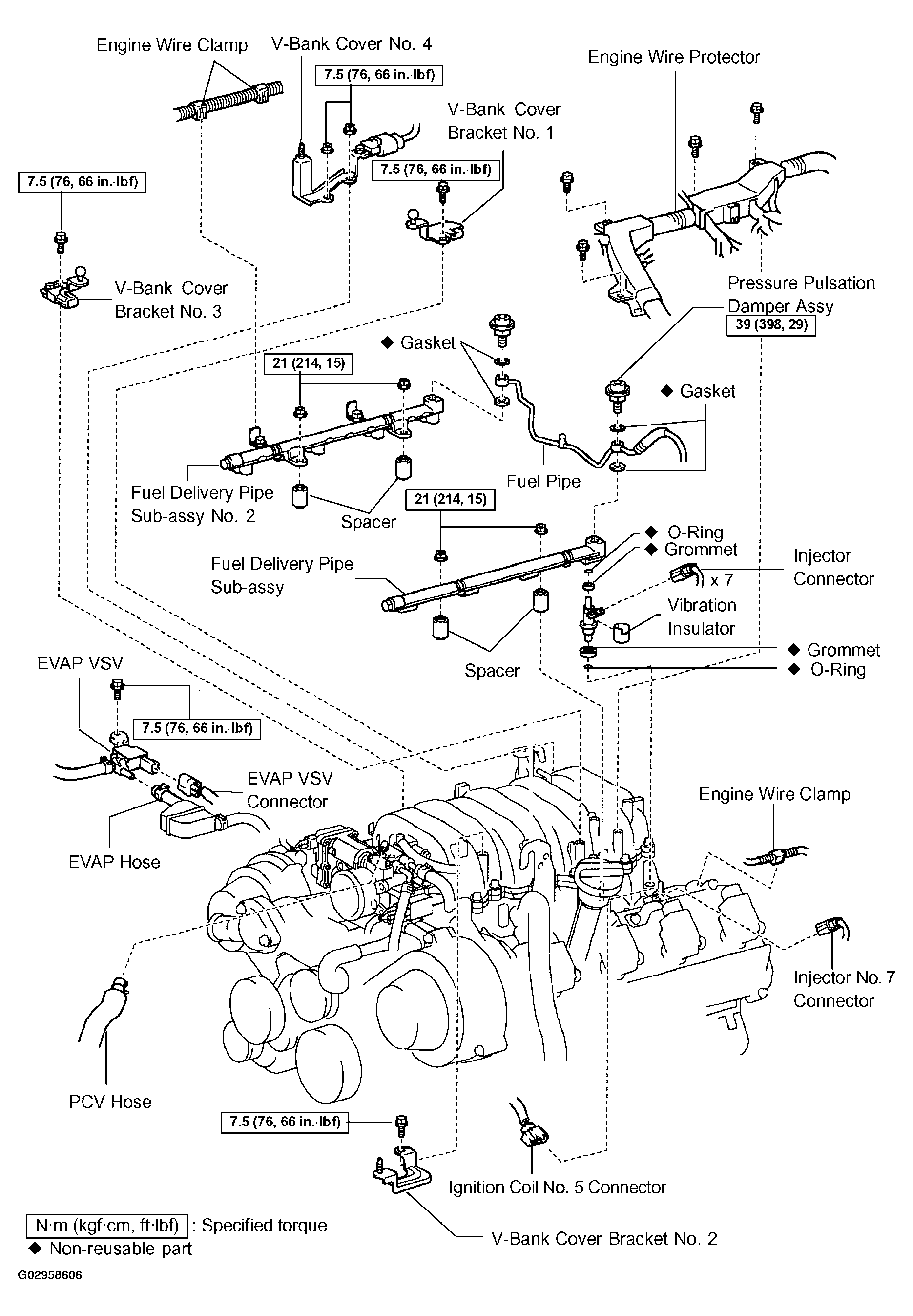

Fig 2: Identifying Fuel Injector Assy Components & Replacements (2 Of 2)
G02958606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
