Home >> Lexus >> 2006 >> GS 430 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (3UZ-FE) >> Camshaft Position Sensor >> Components

Camshaft Position Sensor: Components

Download the full database via torrent (~1.1 TB)

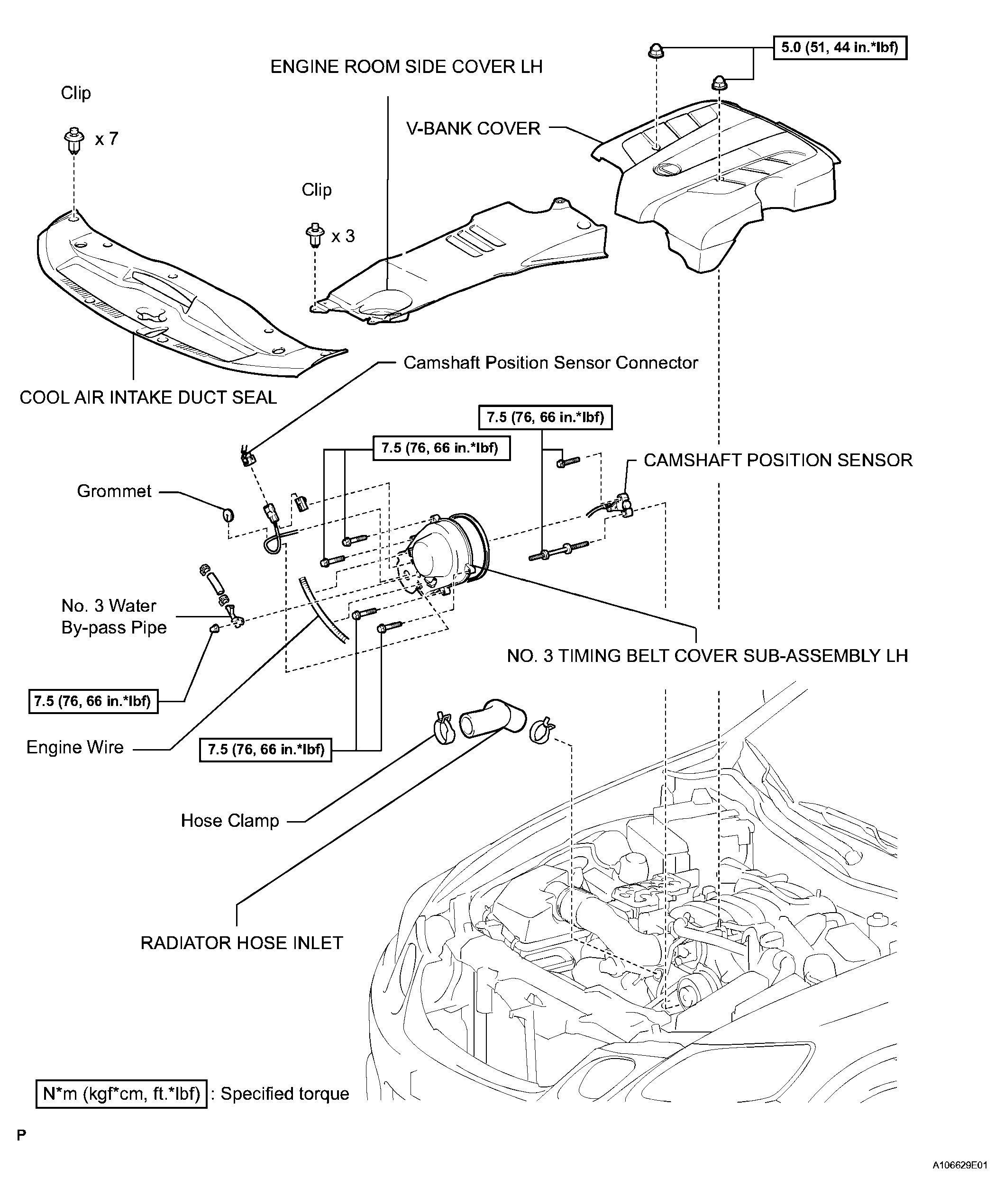

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications
G04027198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
