Integration Relay: Installation

Download the full database via torrent (~1.1 TB)
  1. INSTALL INTEGRATION RELAY
    1. Connect the 3 connectors.
    2. Attach the integration relay to the engine room No. 2 relay block.
    3. Install the No. 2 relay block cover.
  2. REMOVE ENGINE ROOM SIDE COVER LH (See  REMOVAL  )
  3. REMOVE COOL AIR INTAKE DUCT SEAL (See  REMOVAL  )

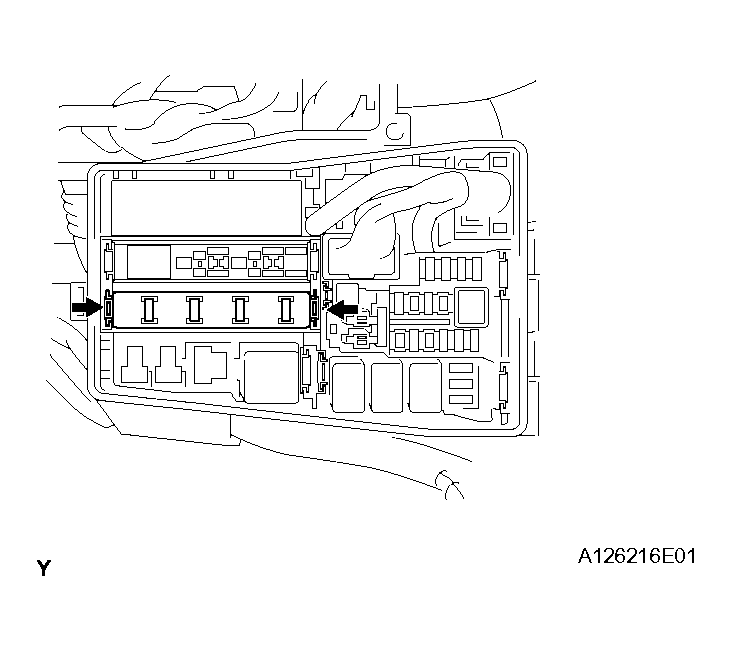

    Fig 1: Identifying Integration Relay
    G04054984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
