Fuel Pump ASSY: Components

Download the full database via torrent (~1.1 TB)

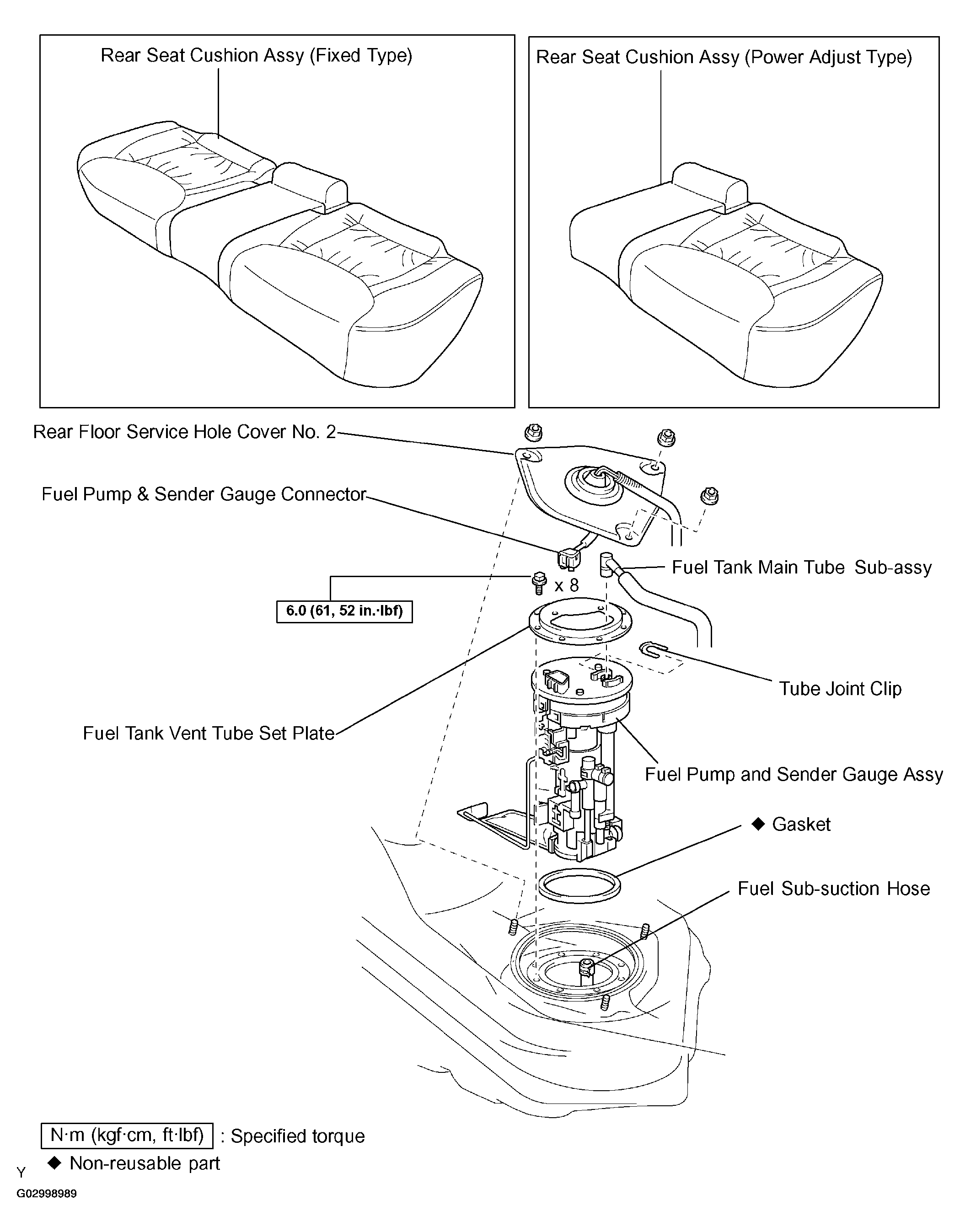

Fig 1: Exploded View Of Fuel Pump Assy Components (1 Of 2)
G02998989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Exploded View Of Fuel Pump Assy Components (1 Of 2)
G02998990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
