Camshaft Timing Oil Control Valve ASSY RH: Components

Download the full database via torrent (~1.1 TB)

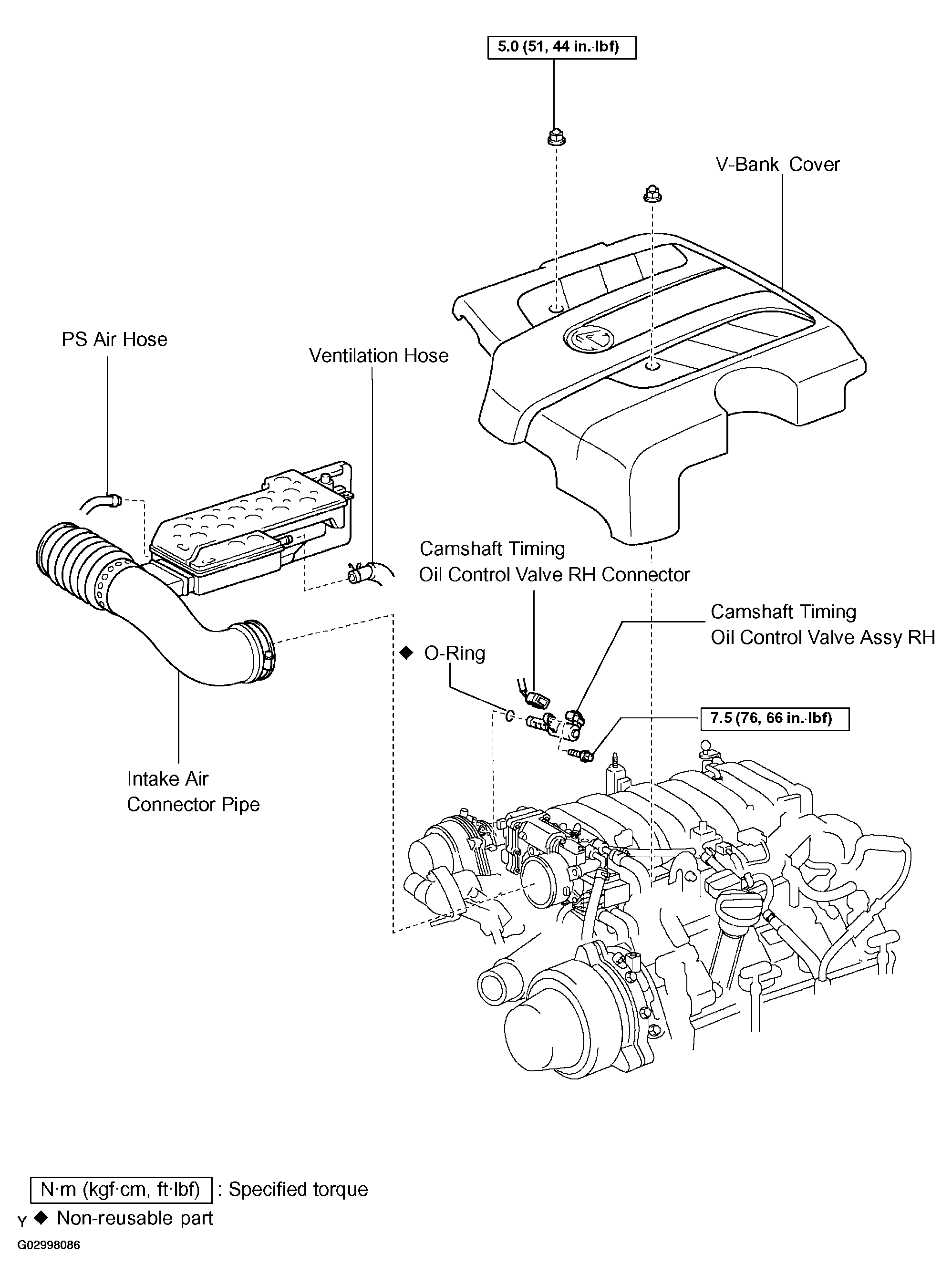

Fig 1: Identifying Camshaft Timing Oil Control Valve Assy RH Components
G02998086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
