Fail-Safe Chart
Download the full database via torrent (~1.1 TB)
If any of the following codes are recorded, the ECM enters fail-safe mode.

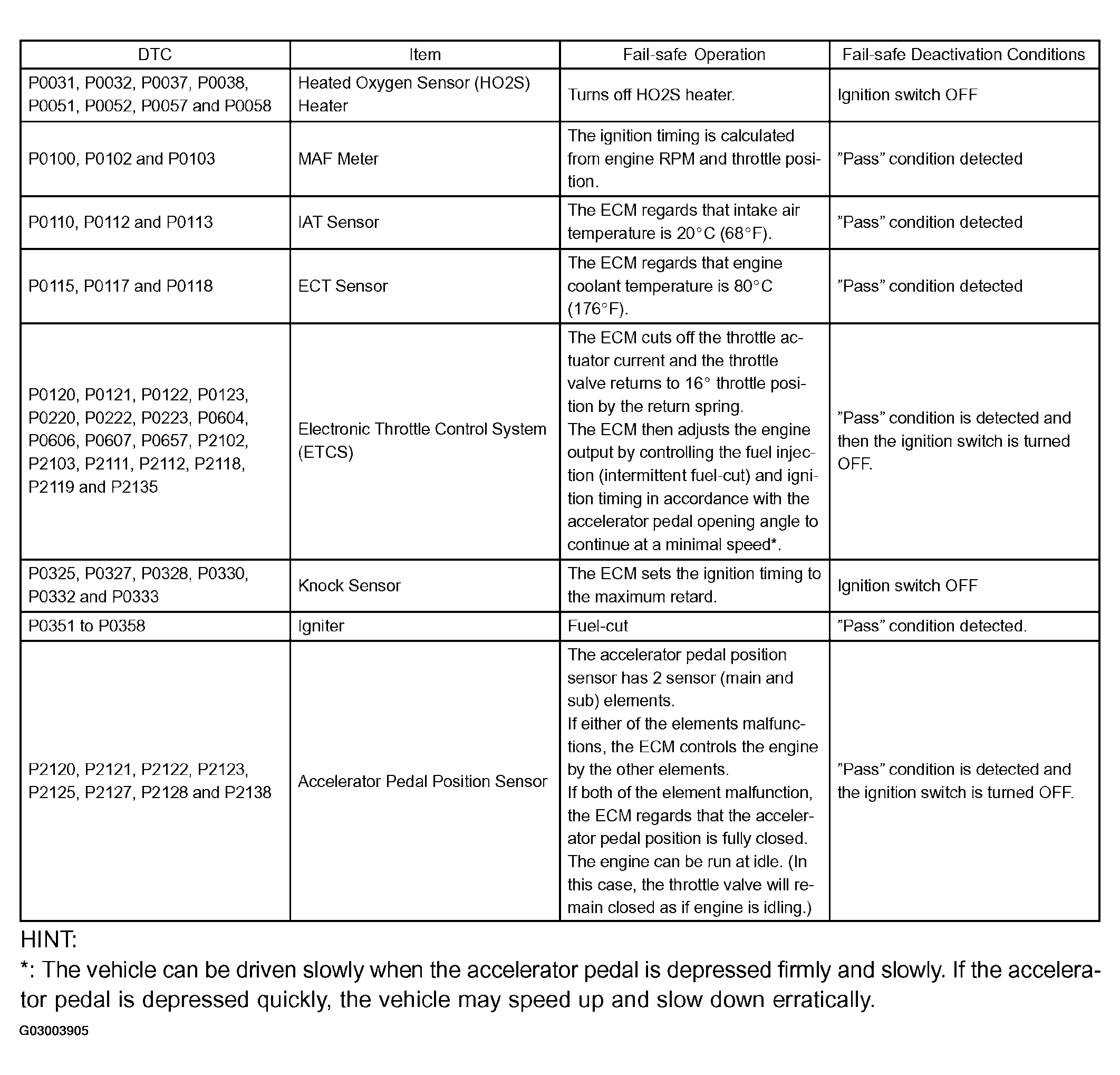

Fig 1: Fail-Safe Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
