Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System
>>
SFI System
>>
System Diagram
System Diagram
Download the full database via torrent (~1.1 TB)
The engine control system is controlled by the ECM based on signals from various sensors.

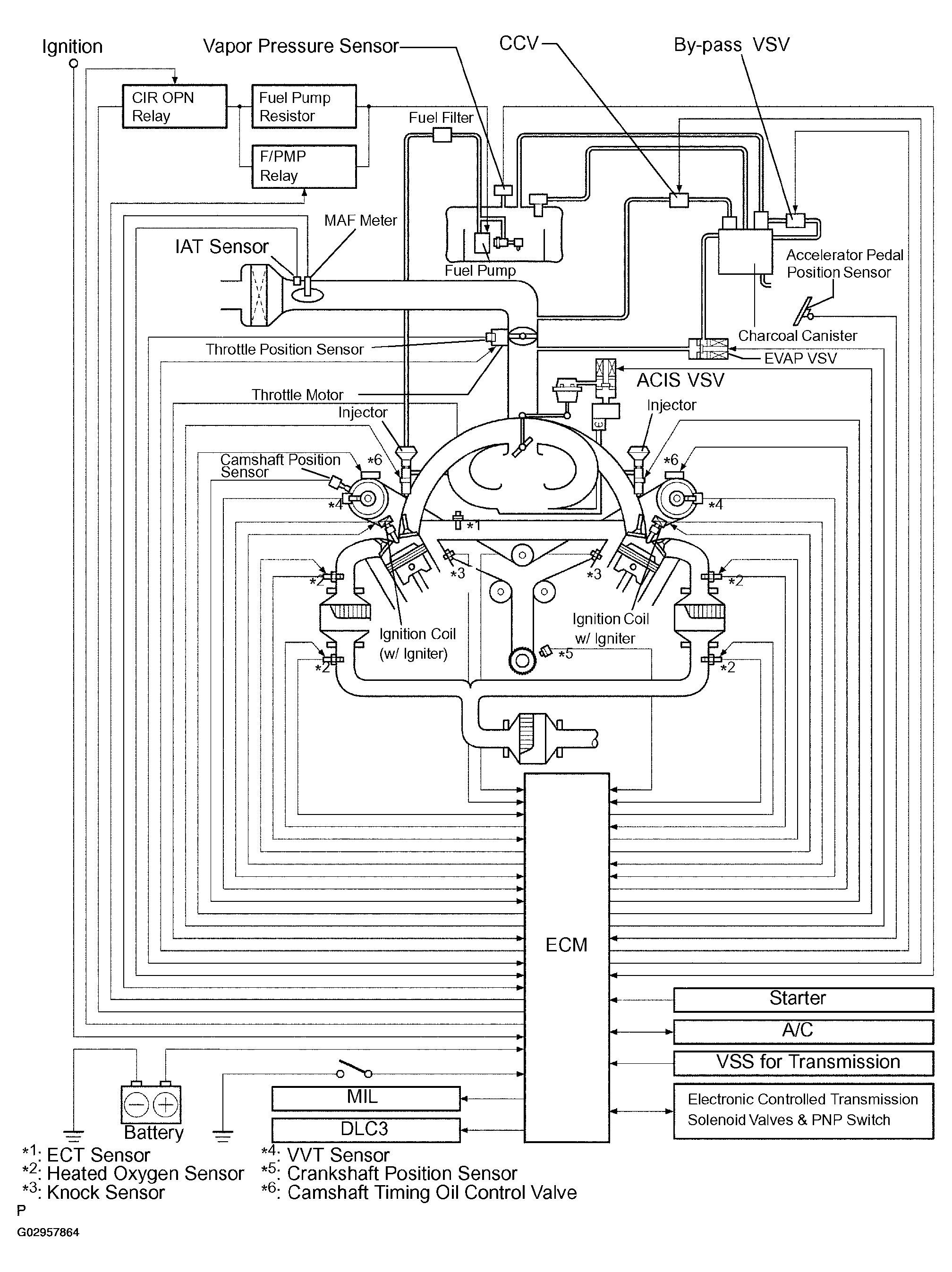

Fig 1: Engine Control System Diagram
