Shift Lever: Components

Download the full database via torrent (~1.1 TB)
Fig 1: Identifying Shift Lever Replacement Components (1 Of 2)
G05249659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

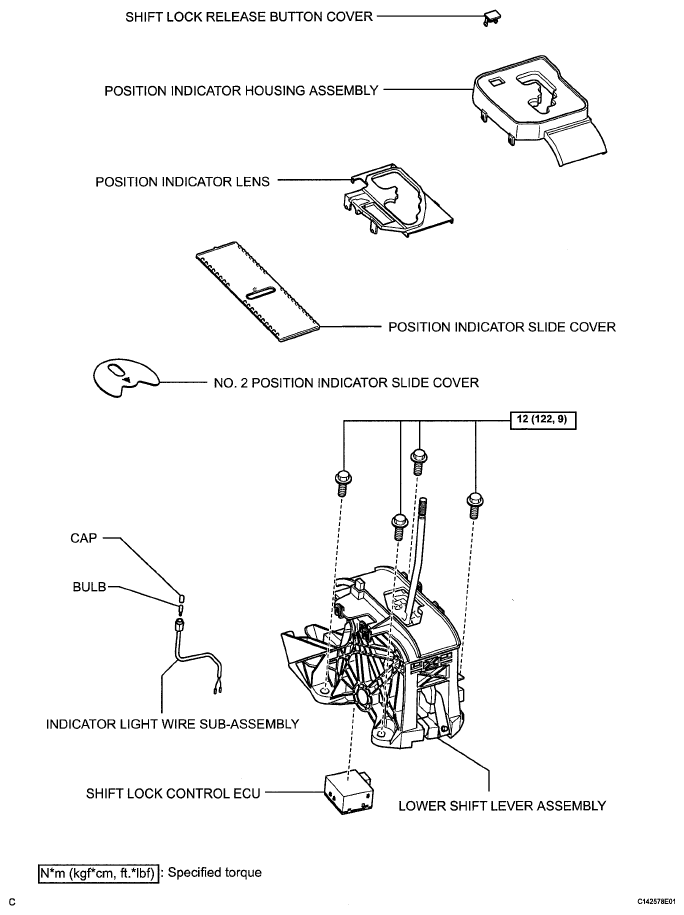

Fig 2: Identifying Shift Lever Replacement Components With Torque Specification (2 Of 2)
G05249660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
