Home >> Lexus >> 2007 >> ES 350 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Speed Sensor >> Components

Speed Sensor: Components

Download the full database via torrent (~1.1 TB)

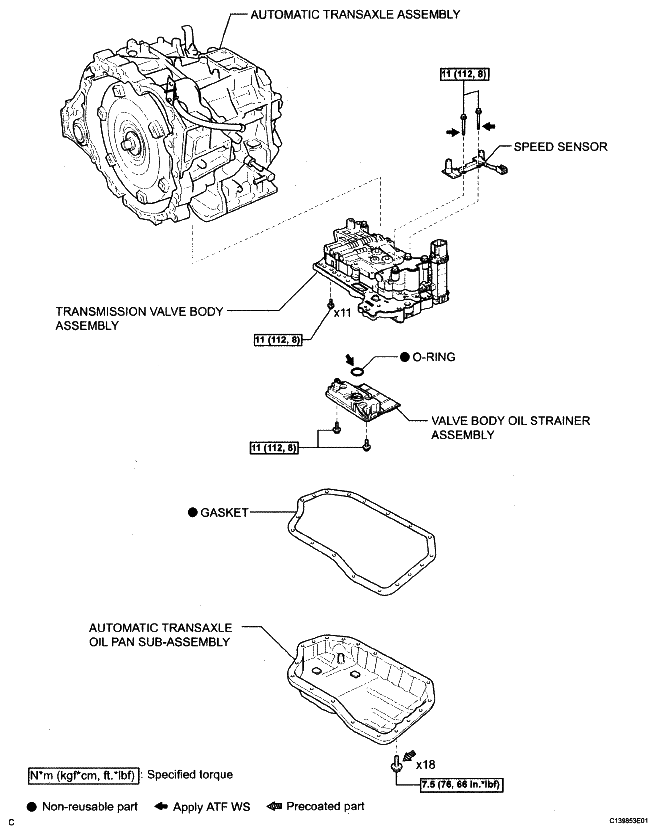

Fig 1: Speed Sensor Replacement Components With Torque Specifications

G04976647

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
