Home >> Lexus >> 2007 >> LS 460L >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control >> Skid Control Buzzer >> Components

Skid Control Buzzer: Components

Download the full database via torrent (~1.1 TB)
Fig 1: Skid Control Buzzer Replacement Components With Torque Specifications (1 Of 2)
G04949789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

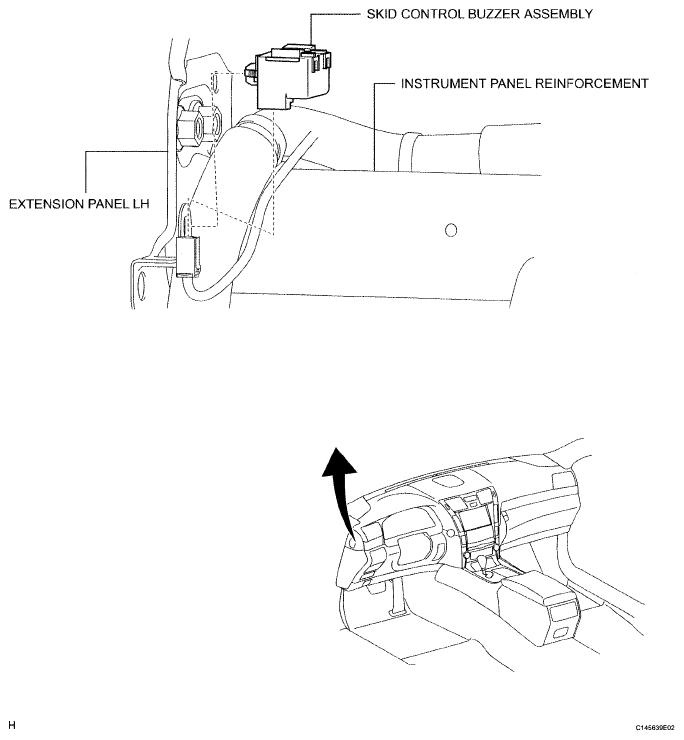

Fig 2: Identifying Skid Control Buzzer Components (2 Of 2)
G04949790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
