Monitor Result
Download the full database via torrent (~1.1 TB)
Refer to
CHECKING MONITOR STATUS
.

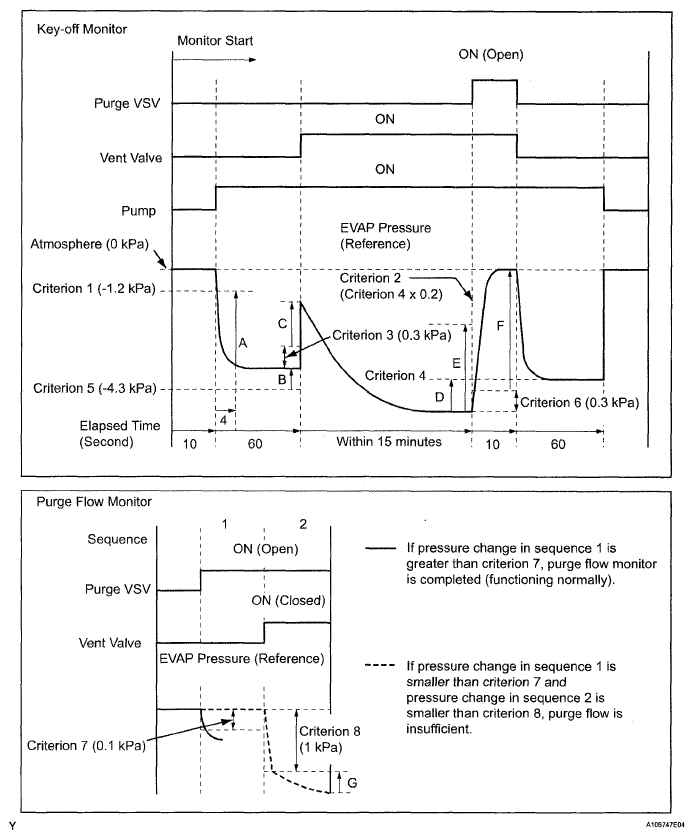

Fig 1: Monitoring Purge Flow Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
