EVAP System: Wiring Diagram
Download the full database via torrent (~1.1 TB)

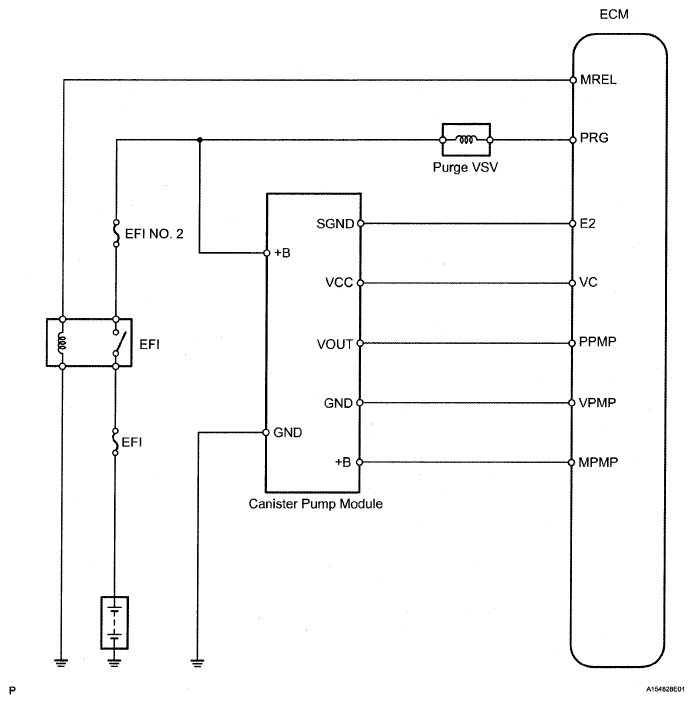

Fig 1: Canister Pump Module - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
