SC 430
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System
>>
SFI System
>>
Parts Location
Parts Location
Download the full database via torrent (~1.1 TB)

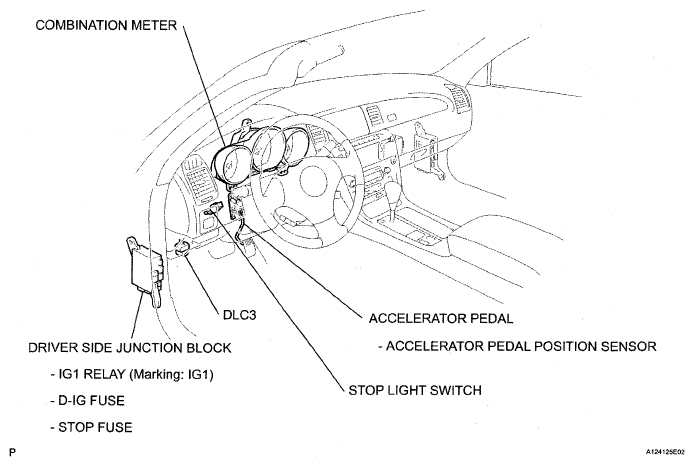

Fig 1: Identifying SFI System Parts Location (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

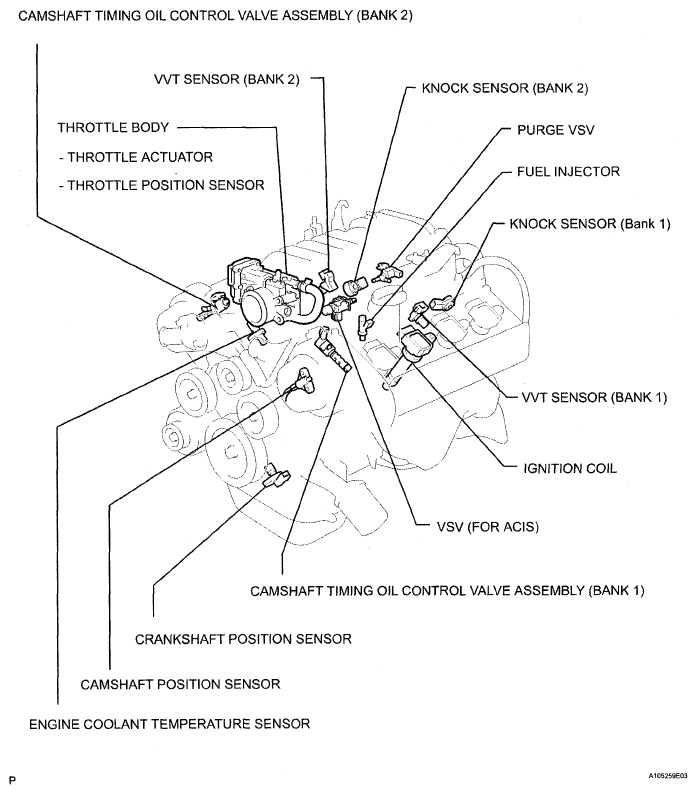

Fig 2: Identifying SFI System Parts Location (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

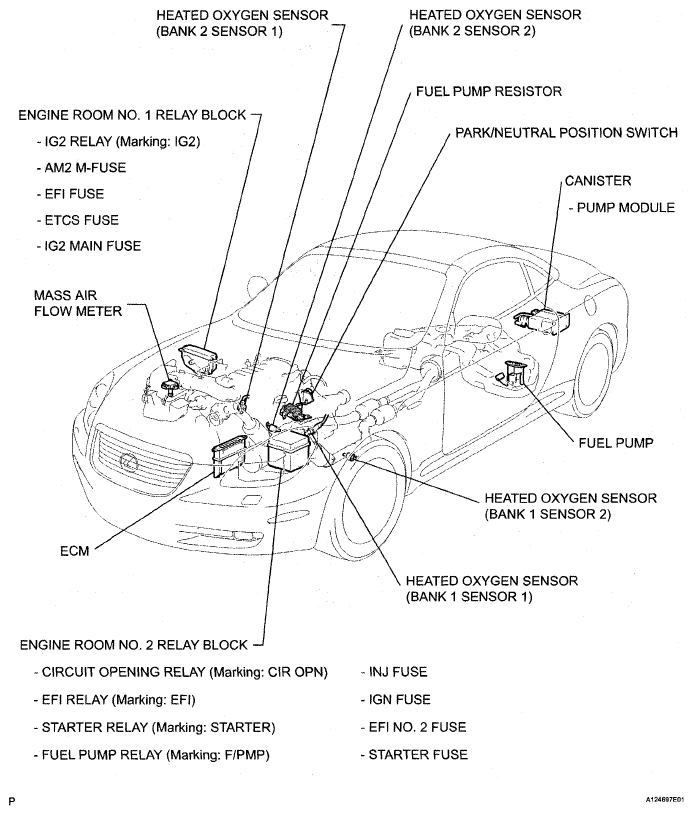

Fig 3: Identifying SFI System Parts Location (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
