VVT Sensor: Components

Download the full database via torrent (~1.1 TB)

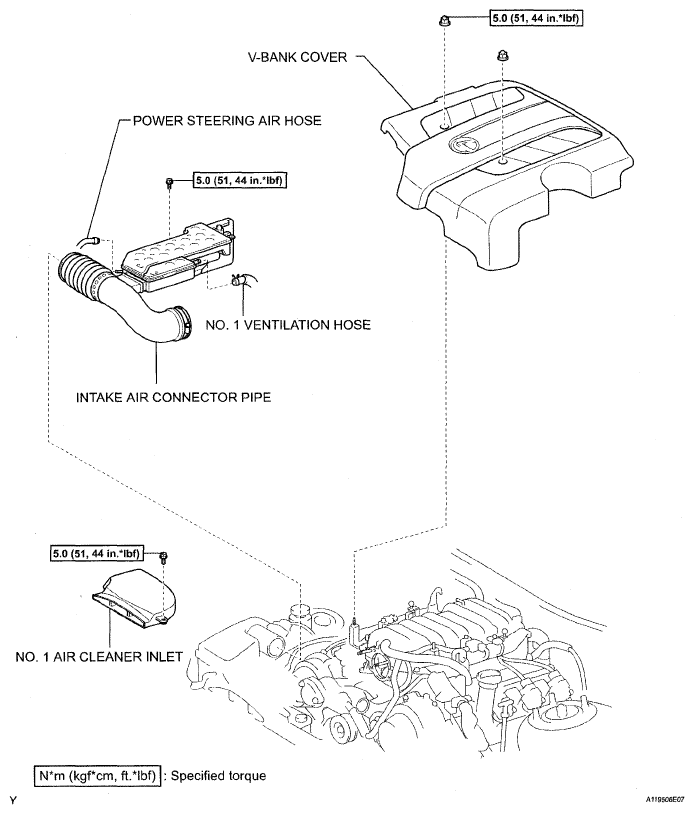

Fig 1: VVT Sensor Replacement Components With Torque Specifications (1 Of 2)
G05291587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

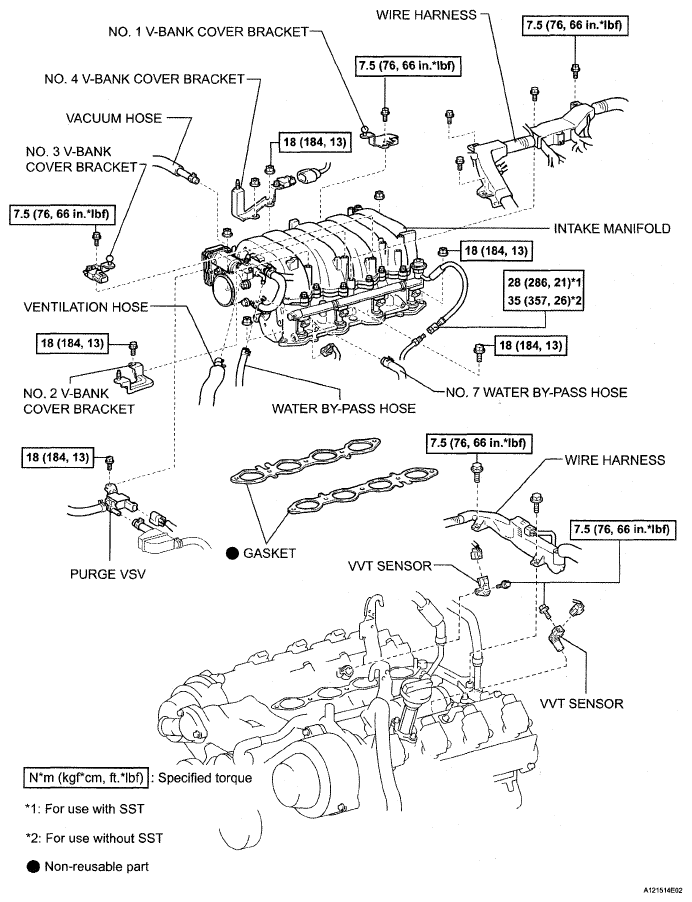

Fig 2: VVT Sensor Replacement Components With Torque Specifications (2 Of 2)
G05291588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
