SC 430
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle
>>
Shift Lock System
>>

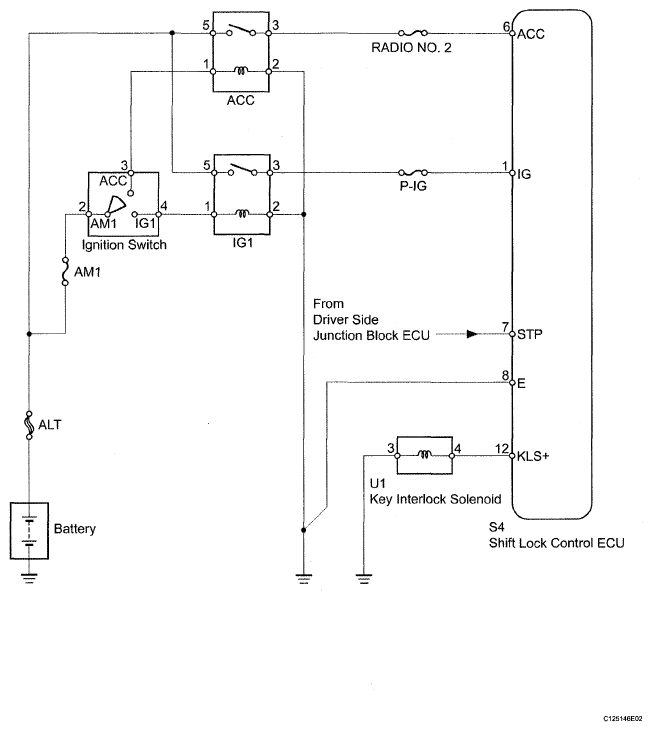

System Diagram
System Diagram
Download the full database via torrent (~1.1 TB)
Fig 1: Locating Shift Lock System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
