ATF Temperature Sensor: Components

Download the full database via torrent (~1.1 TB)

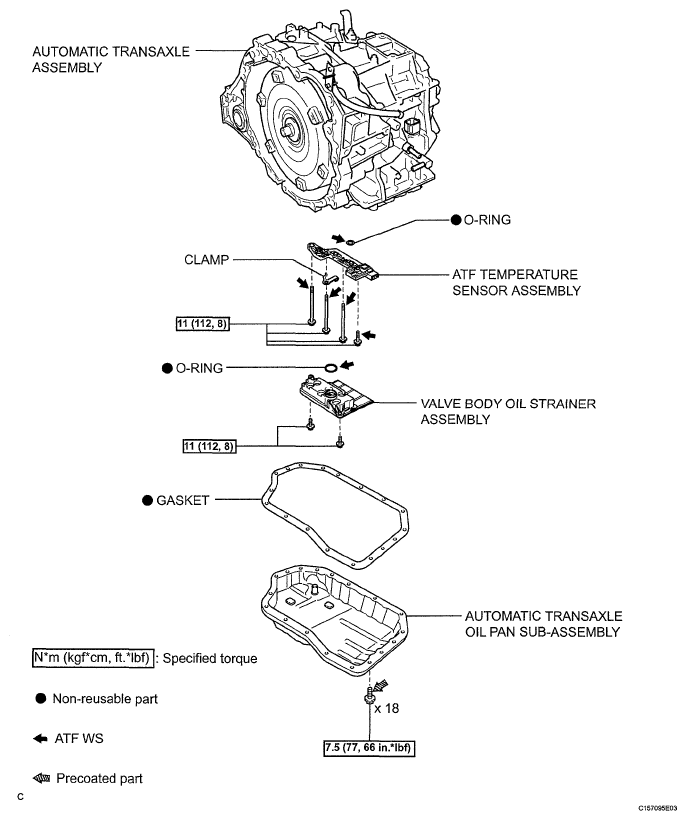

Fig 1: ATF Temperature Sensor Replacement Components With Torque Specifications
G05836164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
