Engine Control System - System & Component Testing, R & I: ECM: Components

Download the full database via torrent (~1.1 TB)

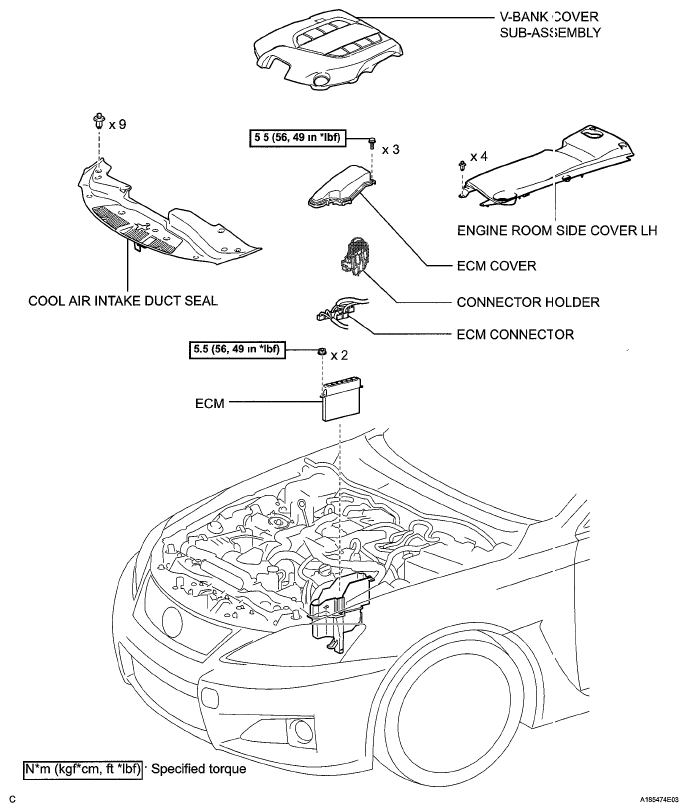

Fig 1: ECM Replacement Components With Torque Specifications
G05751911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
