Home >> Lexus >> 2008 >> IS F >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Shift Paddle Switch >> Components

Shift Paddle Switch: Components

Download the full database via torrent (~1.1 TB)

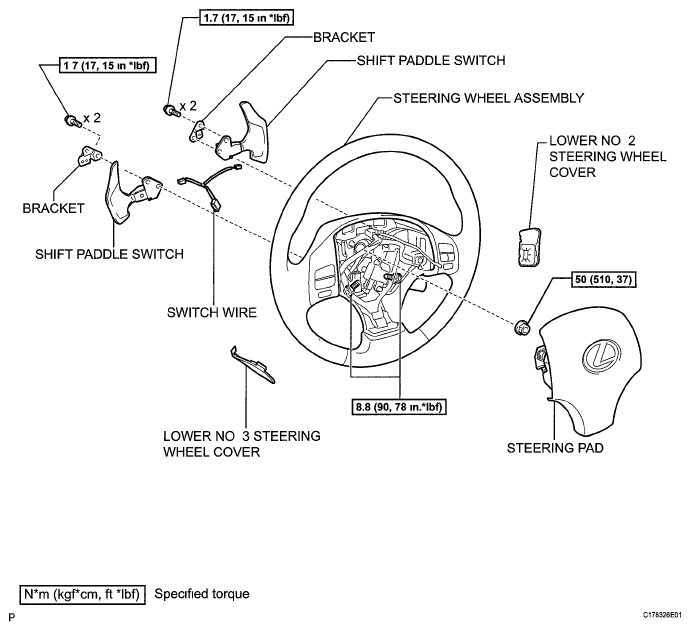

Fig 1: Shift Paddle Switch Replacement Components With Torque Specifications
G05750933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
