Valve Body Assembly: Components

Download the full database via torrent (~1.1 TB)

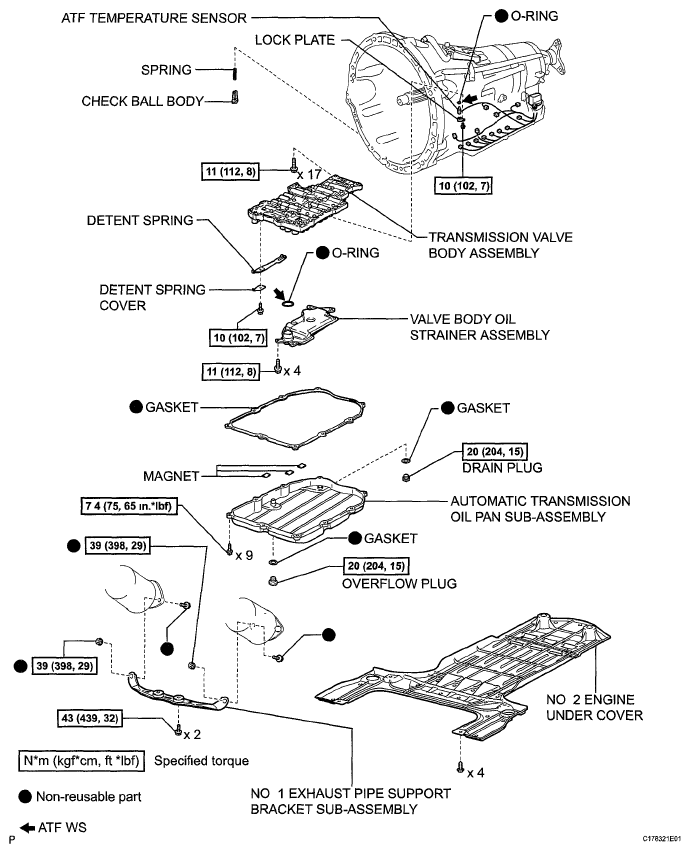

Fig 1: Valve Body Assembly Replacement Components (1 Of 2) with Torque Specifications
G05750830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

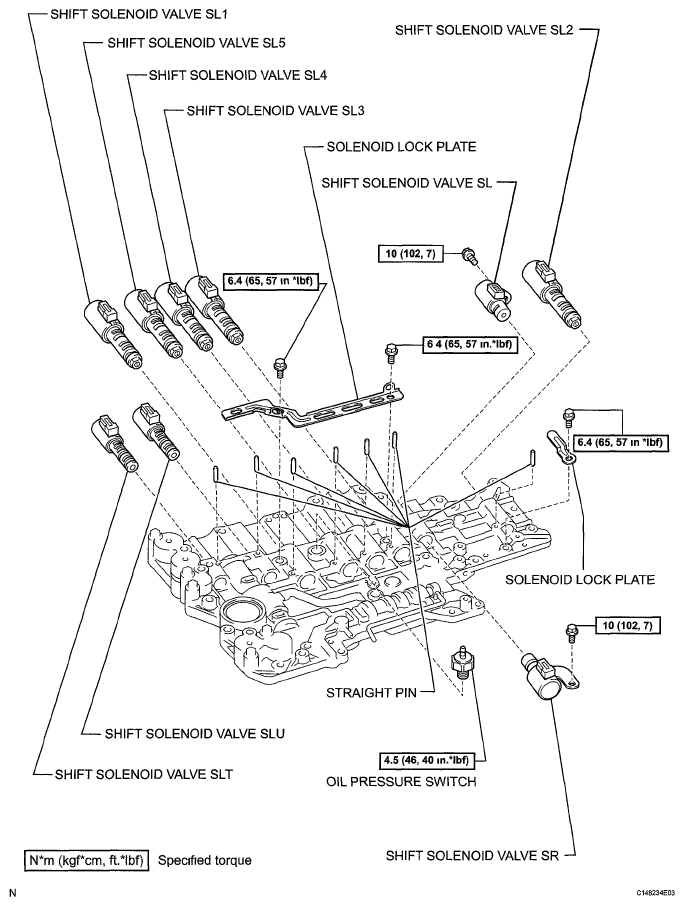

Fig 2: Valve Body Assembly Replacement Components (2 Of 2) with Torque Specifications
G05750831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
