Skid Control Buzzer: Components

Download the full database via torrent (~1.1 TB)
Fig 1: Identifying Skid Control Buzzer Components (1 Of 3)
G05774065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

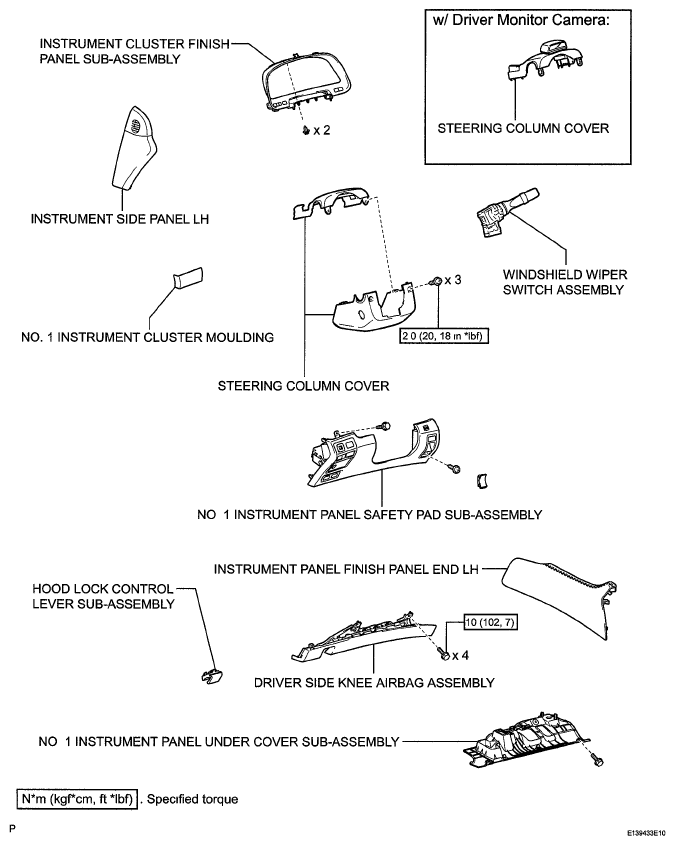

Fig 2: Skid Control Buzzer Replacement Components With Torque Specifications (2 Of 3)
G05782004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Skid Control Buzzer Components (3 Of 3)
G04949790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
