Fuel Pump: Components

Download the full database via torrent (~1.1 TB)

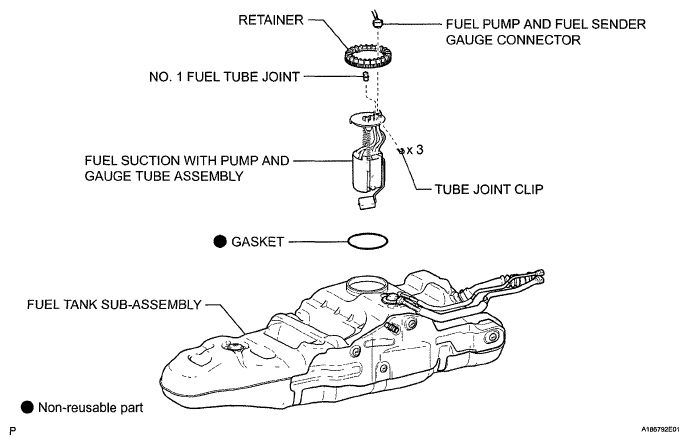

Fig 1: Identifying Fuel Pump Components (1 Of 2)
G05759577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

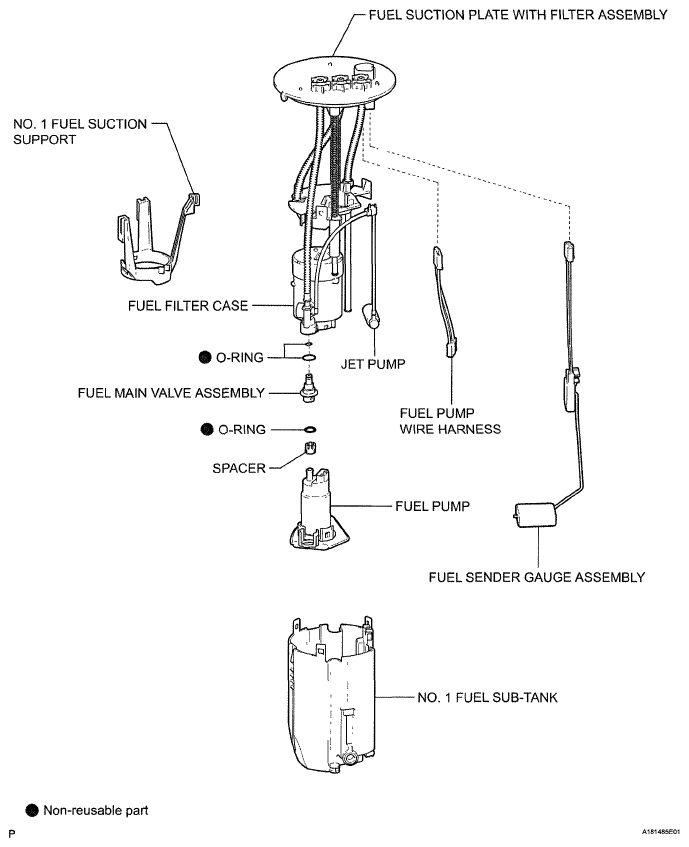

Fig 2: Identifying Fuel Pump Components (2 Of 2)
G05759571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
