Camshaft Position Sensor: Components

Download the full database via torrent (~1.1 TB)

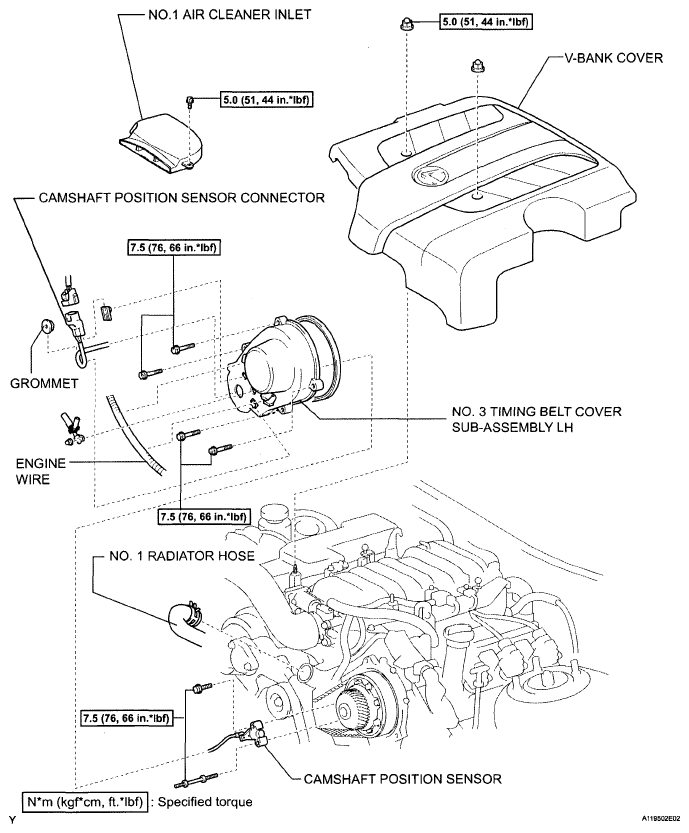

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications
G05838967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
