Automatic Transmission Assembly: Components
Download the full database via torrent (~1.1 TB)
Fig 1: Identifying Automatic Transmission Assembly Replacement Components With Torque Specification (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Automatic Transmission Assembly Replacement Components With Torque Specification (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

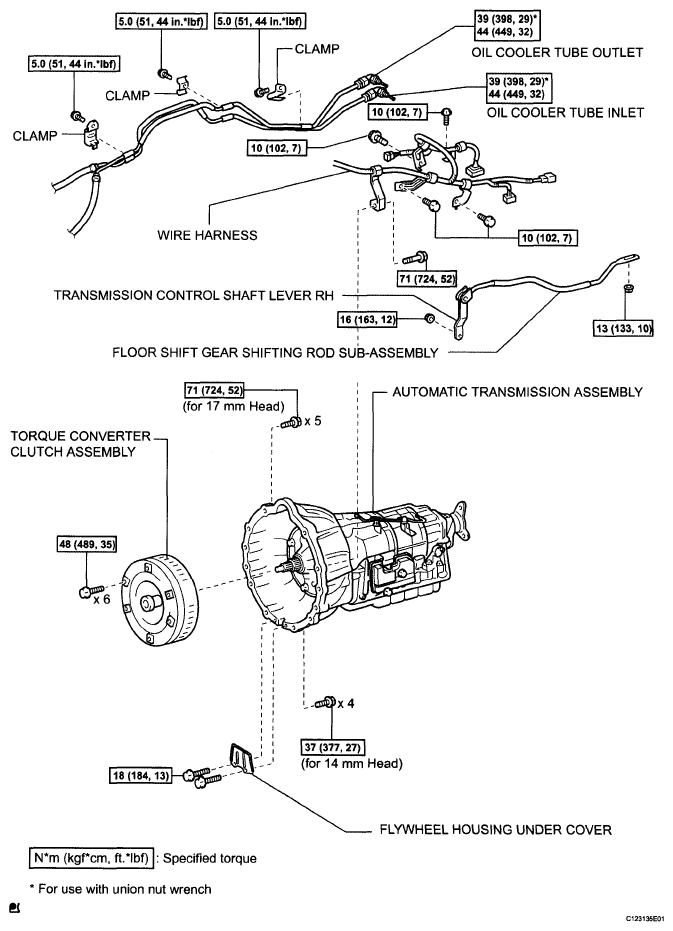

Fig 3: Identifying Automatic Transmission Assembly Replacement Components With Torque Specification (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
