VVT Sensor: Components: Illustration

Download the full database via torrent (~1.1 TB)

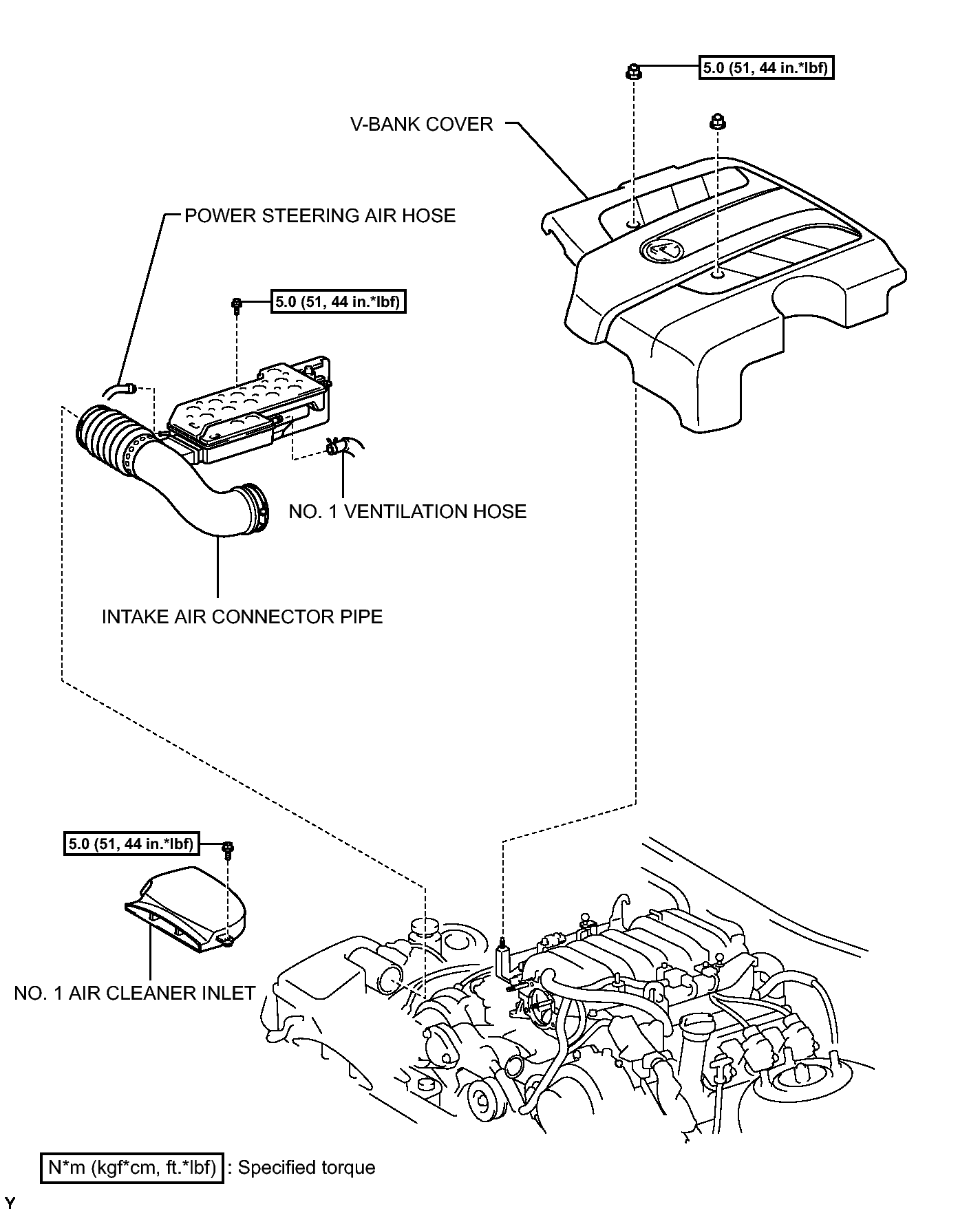

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY145873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

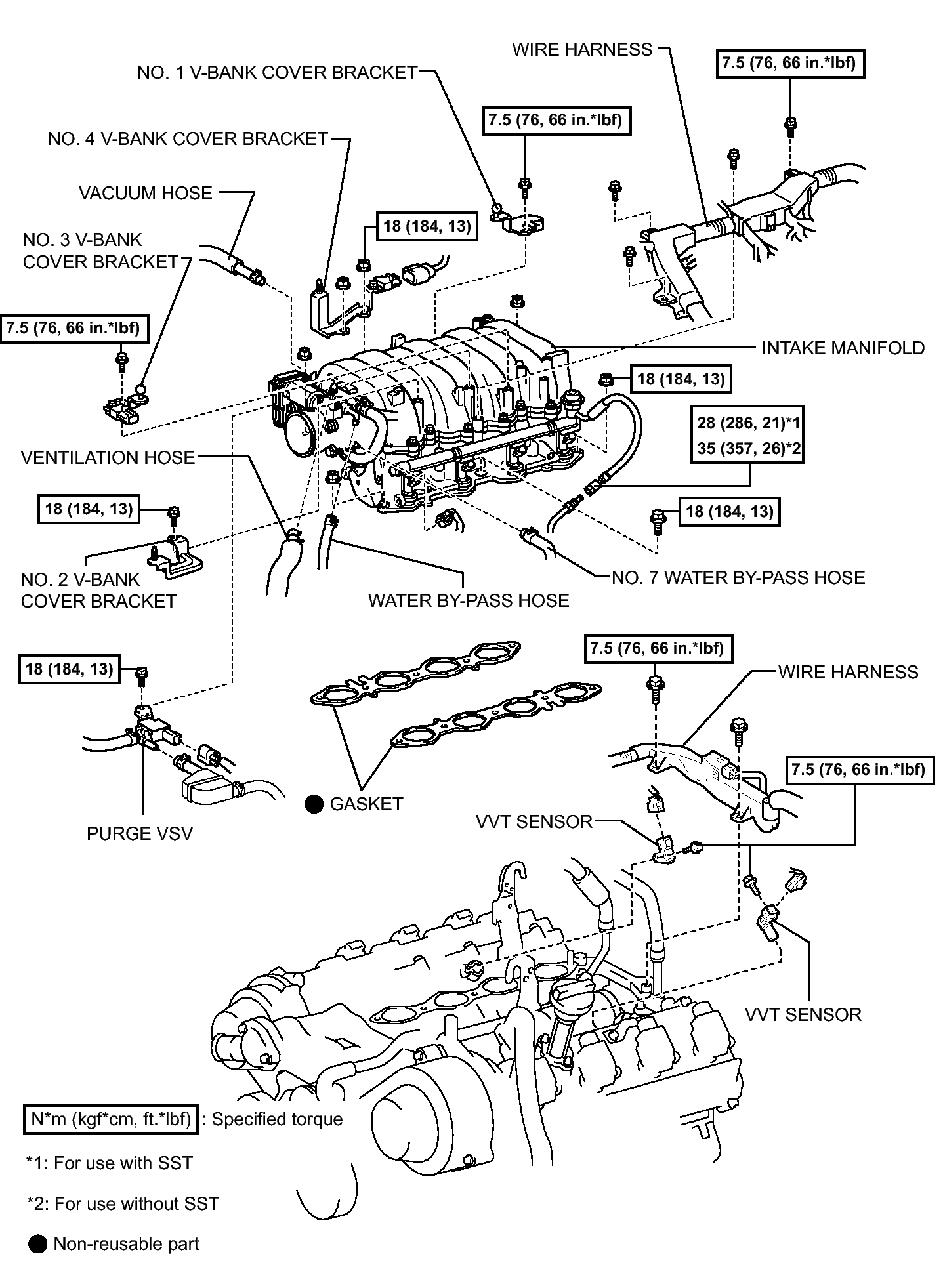

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY146020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
