Camshaft Oil Control Valve: Components: Illustration

Download the full database via torrent (~1.1 TB)

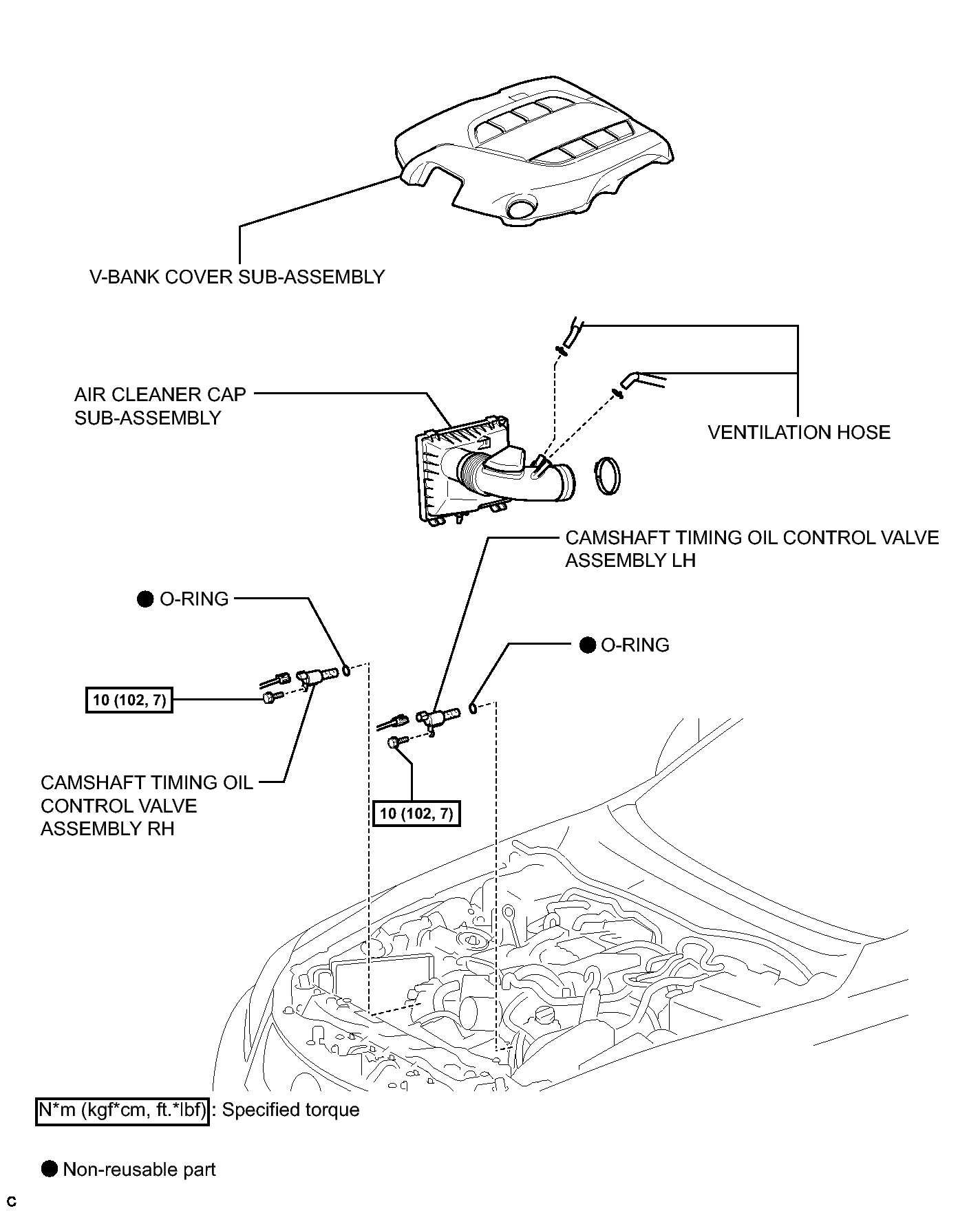

Fig 1: Identifying Camshaft Oil Control Valve Replacement Components With Torque Specifications
GTY148899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
