Camshaft Position Sensor: Components: Illustration

Download the full database via torrent (~1.1 TB)

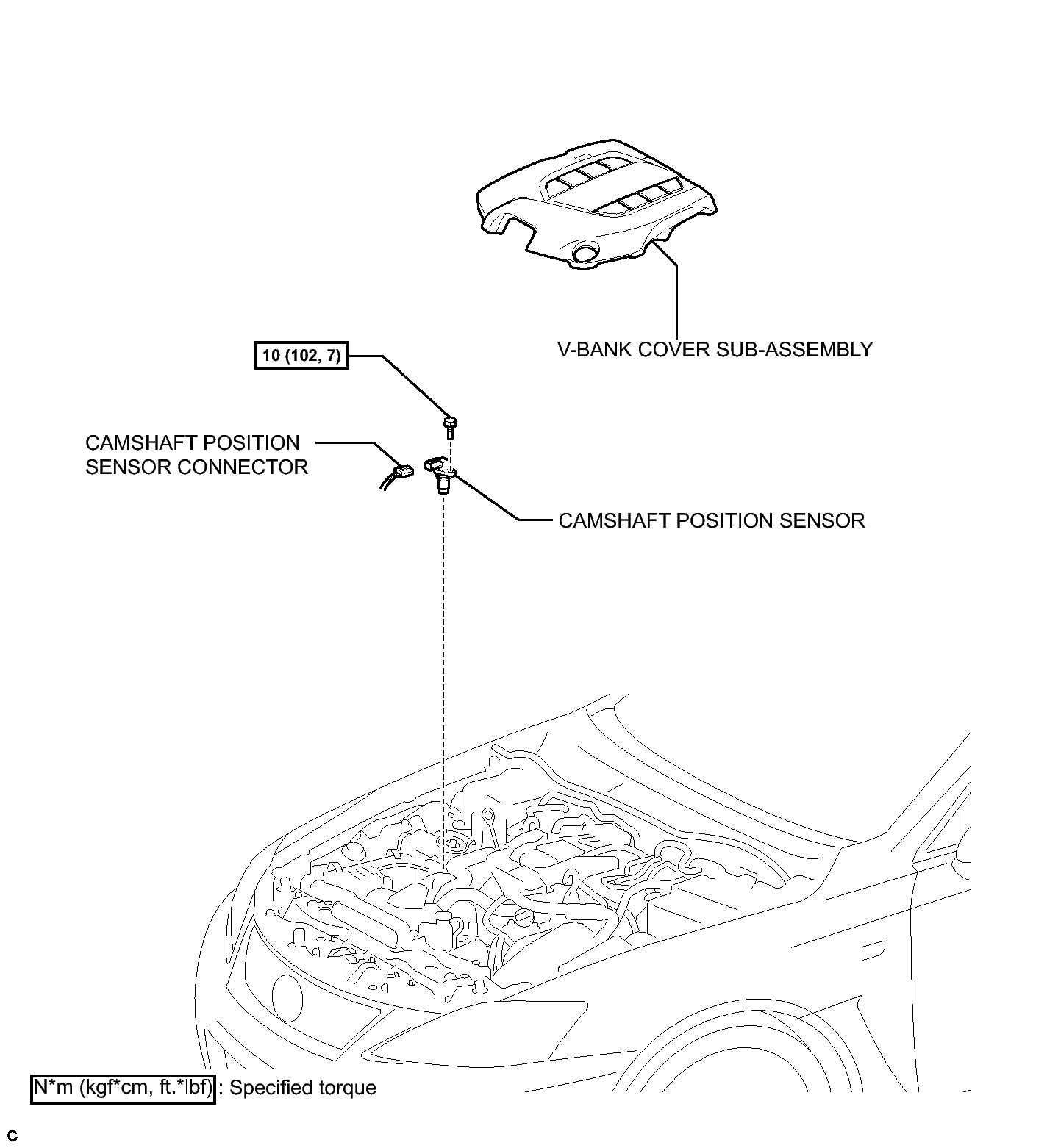

Fig 1: Identifying Camshaft Position Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY148897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


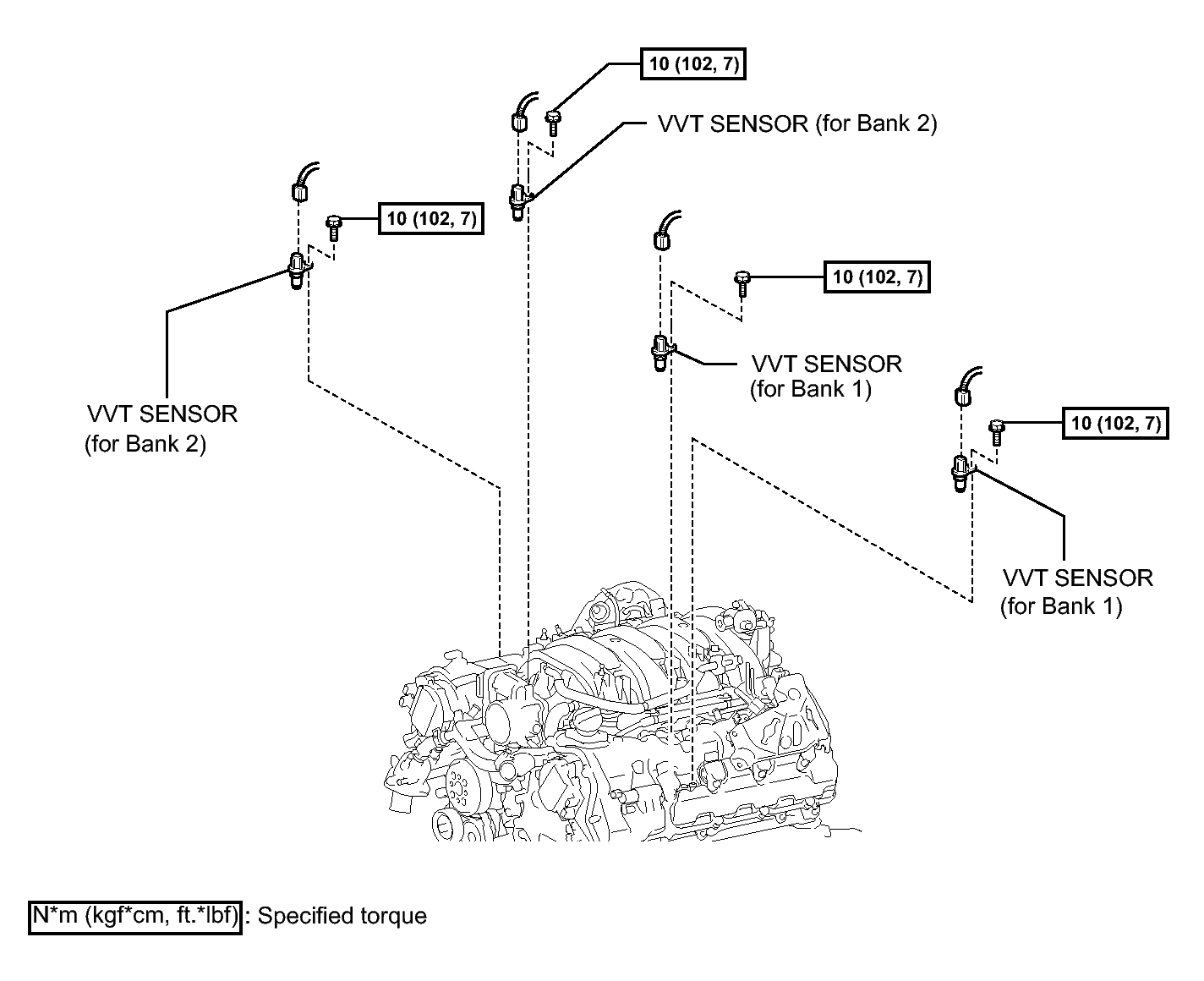

Fig 1: Identifying Camshaft Position Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY148896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
